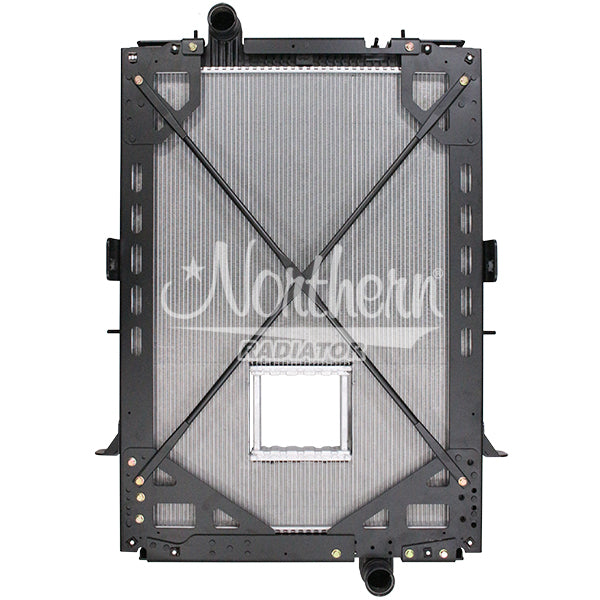

Peterbilt Radiator 238892 PETE/KW 08+ PL/AL;RAD W/ F3161661002010, F3161661002011, F3161661102010, F3161661102011, F3161661202010, F3161661202011, F3161663002010, F3161663102010, F3161665002010, F3161665002011, F3161665102010, F3161665102011, F3161667

Part details: Kenworth / Peterbilt Truck Radiator , Fits: Several Models - Check OEM Part Number , Years: 2008 & Newer , OE Style Radiator with Plastic Tanks / Aluminum Core , WITH Frame (Must compare to 238895) , Core Height: 40 1/2" , Core Width: 30 1/2" , Depth: 2" , Rows: 2 , Inlet: 2 1/2" – Upper Left – 9" In , Outlet: 2 1/2" – Lower Right – 9" In , Oil Cooler: No , Crank Box: 6 3/4" Height x 7 1/4" Width , Notes: Has 6 3/4" high x 7 1/4" wide Crankbox (Centered left to right and 26" down from top header) , Has a 3/8" Barb Vent Tube on the right of top tank , See alternate photos above for included components , For same radiator WITHOUT Frame , see part no: 238717 , For All Metal Radiator with Brass Tanks / Copper Core WITHOUT Frame , see part no: 239074OEM Cross Reference Numbers: F3161661002010, F3161661002011, F3161661102010, F3161661102011, F3161661202010, F3161661202011, F3161663002010, F3161663102010, F3161665002010, F3161665002011, F3161665102010, F3161665102011, F3161667002010, F3161667002011, F3161667102010, F3161667102011, F3161669002010, F3161669002011, F3161669102010, F3161669102011
