SKU:
GTP09483
4.56 Ratio GM 8.875 Truck For ()
Regular price
$678.97
Unit price
/
Unavailable
Shipping calculated at checkout.
4.56 Ratio GM 8.875 Truck For () is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
4.56 Ratio GM 8.875 Truck For ()
Regular price
$678.97
Unit price
/
Unavailable

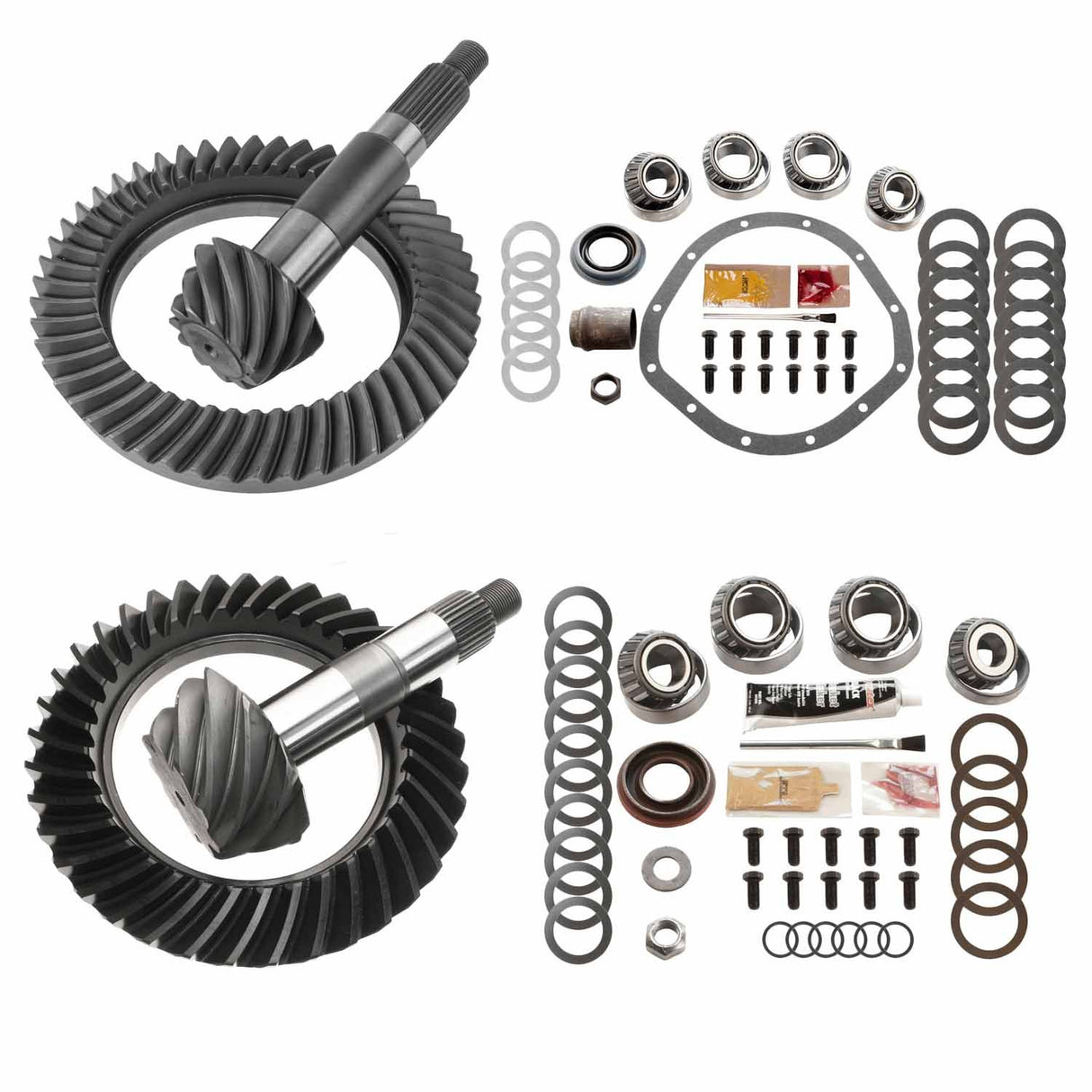

This Differential Ring and Pinion is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Cover Bolt Quantity | 10 Front (D44-456) |
|---|---|
| Cover Bolt Quantity | 12 Rear (GM12-456) |
| Differential Carrier Break | 3.73 Ratio and Higher Rear (GM12-456) |
| Differential Carrier Break | 3.92 Ratio and Higher Front (D44-456) |
| Differential Model | Dana 44 Standard |
| Differential Model | GM 8.875 Truck |
| Gear Ratio | 4.56 |
| Mounting Location | Front and Rear |
| Pinion Gear Tooth Quantity | 11 Front (D44-456) |
| Pinion Gear Tooth Quantity | 9 Rear (GM12-456) |
| Pinion Shaft Diameter | 1.376 Front (D44-456) Inch |
| Pinion Shaft Diameter | 1.438 Rear (GM12-456) Inch |
| Pinion Spline Count | 26 Front (D44-456) |
| Pinion Spline Count | 30 Rear (GM12-456) |
| Ring Gear Bolt Quantity | 10 Front (D44-456) |
| Ring Gear Bolt Quantity | 12 Rear (GM12-456) |
| Ring Gear Material | 8620 Steel |
| Ring Gear Outside Diameter | 8.5 Front (D44-456) Inch |
| Ring Gear Outside Diameter | 8.875 Rear (GM12-456) Inch |
| Ring Gear Rotation | Standard |
| Ring Gear Tooth Quantity | 41 Rear (GM12-456) |
| Ring Gear Tooth Quantity | 50 Front (D44-456) |
| Warranty Period | 1 Year or 50,000 Miles |
Vehicle Applications
| Year | Make | Model |
|---|---|---|
| 1975-1980 | Chevrolet | K5 Blazer |
| 1969-1974 | Chevrolet | Blazer |
| 1968-1974 | Chevrolet | K10 Pickup |
| 1968-1980 | Chevrolet | K10 Suburban |
| 1969-1974 | Chevrolet | K20 Pickup |
| 1973-1980 | Chevrolet | K20 Suburban |
| 1970-1979 | GMC | Jimmy |
| 1968-1974 | GMC | K15/K1500 Pickup |
| 1974 | GMC | K15/K1500 Suburban 1968-1971, GMC K15/K1500 Suburban |
| 1975-1980 | Chevrolet | K10 |
| 1975-1980 | Chevrolet | K20 |
| 1975-1978 | GMC | K15 |
| 1979 | GMC | K1500 |
| 1975-1978 | GMC | K15 Suburban |
| 1979 | GMC | K1500 Suburban |
