SKU:
GTP05777

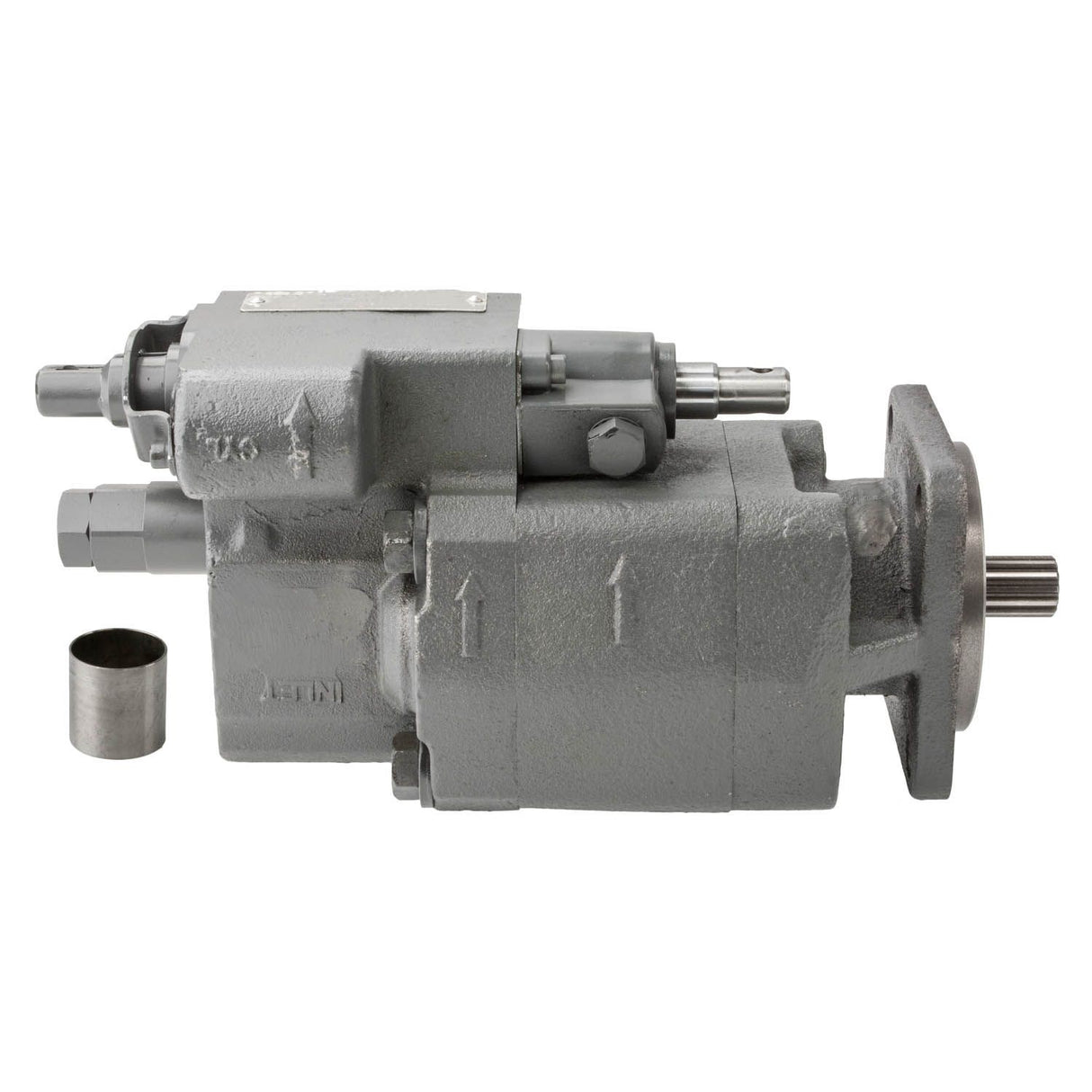

15 GPM Hydraulic Pump, Right Hand Rotation Gear Pump with Cable Shift | 308-9310-073, 308-9310-411, 308-9310-415, 308-9310-416, 3089310073, 3089310411, 3089310415, 3089310416, 400-80262, CH102115CW, CH102120CW, DG102D-07-RMS, DG102D-15-RMS, DG102D-20-RMS
Regular price
$504.51
Unit price
/
Unavailable
Shipping calculated at checkout.
15 GPM Hydraulic Pump, Right Hand Rotation Gear Pump with Cable Shift | 308-9310-073, 308-9310-411, 308-9310-415, 308-9310-416, 3089310073, 3089310411, 3089310415, 3089310416, 400-80262, CH102115CW, CH102120CW, DG102D-07-RMS, DG102D-15-RMS, DG102D-20-RMS is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
15 GPM Hydraulic Pump, Right Hand Rotation Gear Pump with Cable Shi...
Regular price
$504.51
Unit price
/
Unavailable
This professional-grade Hydraulic Pump is built for demanding shop use. Manufactured from durable materials with precision fit and function, it improves technician efficiency and safety in commercial vehicle maintenance environments.
Specifications
| Flow Rate | 15 @ 1,000 RPM U.S. Gallons per mi |
|---|---|
| Flow Rate | 37 @ 2,400 RPM U.S. Gallons per mi |
| Input Shaft Diameter | 0.875 Inch |
| Input Spline Quantity | 13 |
| Maximum RPM | 3000 Revolutions per Minu |
| Maximum Working Pressure | 3000 Pounds per Square In |
| Mounting Type | Direct |
| Pressure Port Diameter | 0.75 Inch |
| Pump Type | Gear |
| Return Port Diameter | 0.75 Inch |
| Rotation Direction | Right |
| Series | G |
| Series Type | G Series |
| Shift linkage Type | Cable |
| System Type | 2 Line |
| System Type | 3 Line |
| Thread Type | NPT |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Parker | 308-9310-073 |
| Parker | 308-9310-411 |
| Parker | 308-9310-415 |
| Parker | 308-9310-416 |
| Parker | 3089310073 |
| Parker | 3089310411 |
| Parker | 3089310415 |
| Parker | 3089310416 |
| PERMCO | 400-80262 |
| Buyers Products | CH102115CW |
| Buyers Products | CH102120CW |
| Dynaco Hydraulic | DG102D-07-RMS |
| Dynaco Hydraulic | DG102D-15-RMS |
| Dynaco Hydraulic | DG102D-20-RMS |
| OE Aftermarket | DMD-400-20-XR-200 |
| PERMCO | DMD-400-20-ZR-200 |
| Parker | G101-1-2.0R-4S |
| Parker | G102-1-2.0-R-4S |
| Parker | G102-1-2.0R-4S |
| Parker | G102R |
| OE Aftermarket | G102RH |
| Buyers Products | H102120CW |
| Heavy Motions | HG102-RMS-20 |
| OE Aftermarket | PMR-DMD-400-20-XR-20 |
| Genuine Newstar | PMR-DMD-400-20-XR-200 |
| OE Aftermarket | PMRDMD40020XR200 |
| Genuine Newstar | S-18554 |
| Genuine Newstar | S18554 |
| OE Aftermarket | S2LD1-15-02BPRR |
| Muncie | S2LD15-2BPRR |
| Muncie | S3LD1-15-02BPRR |
| Muncie | S3LD15-2BPRR |
| World American | WAP102G-20R |
