SKU:
GTP06098

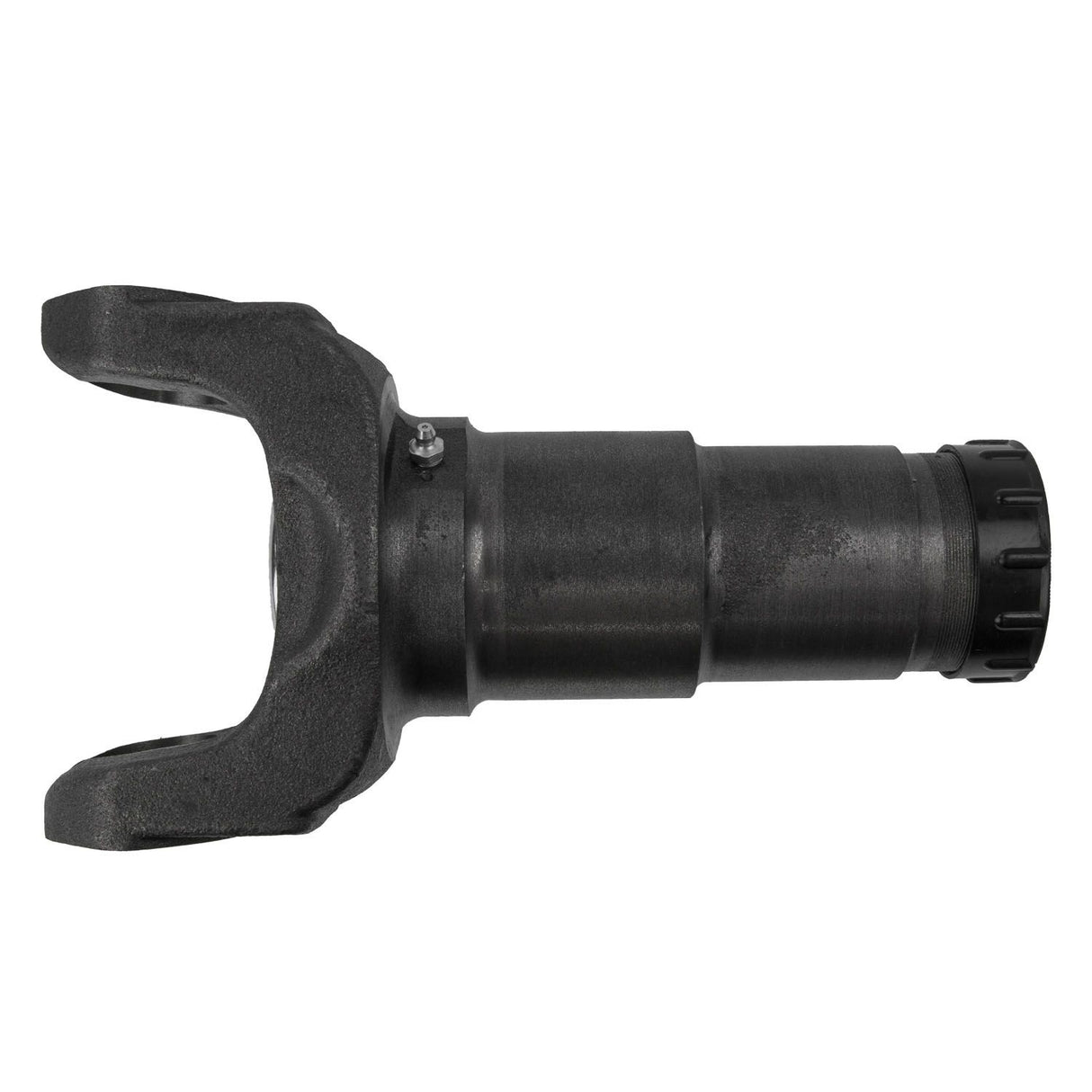

1760 Series Slip Yoke 2.5" 16 Spline, 11" Length C/LS11 | 176N3-21, 176N3-21X, 176N321XMXL, 2104-63321KX, 210463321KX, 586-676-C, 6.3-3-21, 6.3-3-21KX, 63321KX, 753.63321KX, 8235176N321XMXL, N6.3-3-21KX, S-8479, S8479, SD-6.3-3-21KX, SP63321KX
Regular price
$149.38
Unit price
/
Unavailable
Shipping calculated at checkout.
1760 Series Slip Yoke 2.5" 16 Spline, 11" Length C/LS11 | 176N3-21, 176N3-21X, 176N321XMXL, 2104-63321KX, 210463321KX, 586-676-C, 6.3-3-21, 6.3-3-21KX, 63321KX, 753.63321KX, 8235176N321XMXL, N6.3-3-21KX, S-8479, S8479, SD-6.3-3-21KX, SP63321KX is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
1760 Series Slip Yoke 2.5" 16 Spline, 11" Length C/LS11 |...
Regular price
$149.38
Unit price
/
Unavailable
This Drive Shaft Slip Yoke is balanced and heat treated for smooth power transfer and extended service life. It eliminates vibration and driveline noise while handling maximum torque loads in commercial trucks.
Specifications
| Bearing Cap Axis 1 Diameter | 1.938 Inch |
|---|---|
| Bearing Cap Diameter | 1.938 Inch |
| Center To End Of Spline | 11.156 |
| Center To Face Of Plug | 2.469 |
| Centerline To Spline End | 11.156 Inch |
| Diameter | 2.5 Inch |
| Joint Angle | 30 |
| Length Of Hole | 9.25 |
| Material | Steel |
| Series | 1760 Series (Full Round) |
| Spline Quantity | 16 |
| Spline Size | 2.500 - 16 Inch |
| Style | BP |
| Yoke Dimension Across Ears | 6.094 |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 176N3-21 |
| Meritor | 176N3-21X |
| OE Aftermarket | 176N321XMXL |
| OE Aftermarket | 2104-63321KX |
| OE Aftermarket | 210463321KX |
| International | 586-676-C |
| Spicer | 6.3-3-21 |
| Spicer | 6.3-3-21KX |
| Prima Brands | 63321KX |
| Automann | 753.63321KX |
| Automann | 8235176N321XMXL |
| Neapco OE Series | N6.3-3-21KX |
| Genuine Newstar | S-8479 |
| Genuine Newstar | S8479 |
| Genuine Newstar | SD-6.3-3-21KX |
| Freightliner | SP63321KX |
