SKU:
GTP10489
3.08 Ratio GM 8.875 Truck For () | 10001417, 12BT308, 14022236, 24459, 49-0068-1, GM12T-308-NG, YG GM12T-308
Regular price
$244.20
Unit price
/
Unavailable
Shipping calculated at checkout.
3.08 Ratio GM 8.875 Truck For () | 10001417, 12BT308, 14022236, 24459, 49-0068-1, GM12T-308-NG, YG GM12T-308 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
3.08 Ratio GM 8.875 Truck For () | 10001417, 12BT308, 14022236, 244...
Regular price
$244.20
Unit price
/
Unavailable

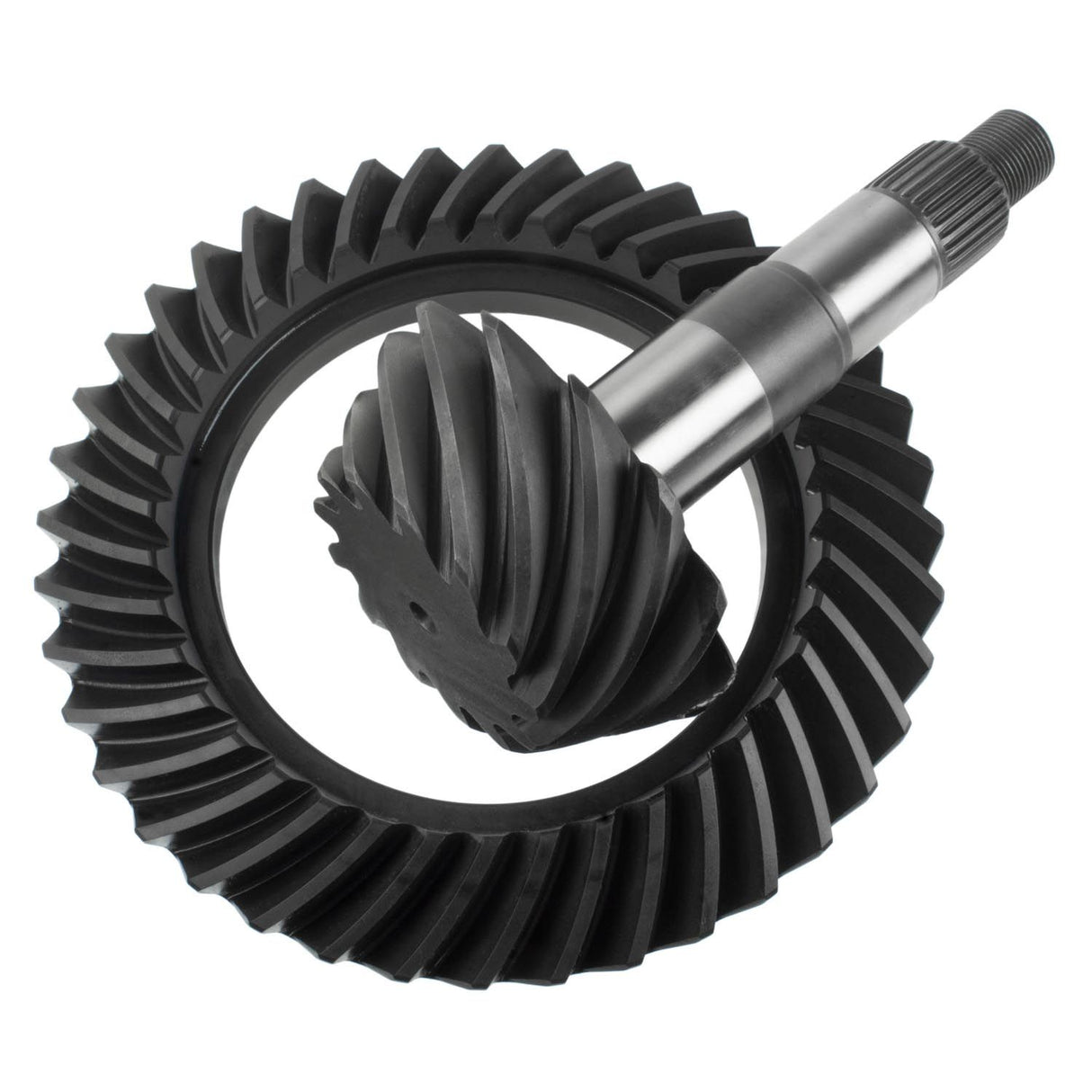

This Differential Ring and Pinion is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Cover Bolt Quantity | 12 |
|---|---|
| Differential Carrier Break | 2.76 to 3.42 Ratio |
| Differential Model | GM 8.875 Truck |
| Gear Ratio | 3.08 |
| Mounting Location | Rear |
| Pinion Gear Tooth Quantity | 13 |
| Pinion Shaft Diameter | 1.438 Inch |
| Pinion Spline Count | 30 |
| Ring Gear Bolt Quantity | 12 |
| Ring Gear Material | 8620 Steel |
| Ring Gear Outside Diameter | 8.875 Inch |
| Ring Gear Rotation | Standard |
| Ring Gear Tooth Quantity | 40 |
| Warranty Period | 1 Year or 50,000 Miles |
Vehicle Applications
| Year | Make | Model |
|---|---|---|
| 1975-1986 | Chevrolet | K5 Blazer |
| 1975-1986 | Chevrolet | C10 |
| 1967-1986 | Chevrolet | C10 Suburban |
| 1975-1987 | Chevrolet | G10 |
| 1975-1981 | Chevrolet | G20 |
| 1975-1986 | Chevrolet | K10 |
| 1967-1986 | Chevrolet | K10 Suburban |
| 1987 | Chevrolet | R10 Suburban |
| 1987 | Chevrolet | V10 Suburban |
| 1975-1978 | GMC | C15 |
| 1979-1986 | GMC | C1500 |
| 1975-1978 | GMC | C15 Suburban |
| 1979-1986 | GMC | C1500 Suburban |
| 1975-1978 | GMC | G15 |
| 1979-1987 | GMC | G1500 |
| 1975-1978 | GMC | G25 |
| 1979-1981 | GMC | G2500 |
| 1975-1978 | GMC | K15 |
| 1979-1986 | GMC | K1500 |
| 1975-1978 | GMC | K15 Suburban |
| 1979-1986 | GMC | K1500 Suburban |
| 1987 | GMC | R1500 Suburban |
| 1987 | GMC | V1500 Suburban |
| 1964-1970 | Buick | Wildcat |
| 1964-1972 | Chevrolet | Bel Air |
| 1964-1972 | Chevrolet | Biscayne |
| 1969-1974 | Chevrolet | Blazer |
| 1963-1974 | Chevrolet | C10 Pickup |
| 1967-1972 | Chevrolet | Camaro |
| 1966-1970 | Chevrolet | Caprice |
| 1964-1972 | Chevrolet | Chevelle |
| 1964-1968 | Chevrolet | Chevy II |
| 1965-1972 | Chevrolet | El Camino |
| 1964-1974 | Chevrolet | G10 Van |
| 1967-1974 | Chevrolet | G20 Van |
| 1964-1972 | Chevrolet | Impala |
| 1963-1974 | Chevrolet | K10 Pickup |
| 1970-1972 | Chevrolet | Monte Carlo |
| 1969-1972 | Chevrolet | Nova |
| 1963-1966 | Chevrolet | Suburban |
| 1967-1974 | GMC | C15/C1500 Pickup |
| 1968-1974 | GMC | C15/C1500 Suburban |
| 1963-1966 | GMC | G1000 Series |
| 1967-1974 | GMC | G15/G1500 Van |
| 1967-1974 | GMC | G25/G2500 Van |
| 1966-1974 | GMC | K15/K1500 Pickup |
| 1967-1974 | GMC | K15/K1500 Suburban |
| 1963-1966 | GMC | Suburban |
| 1969-1972 | Pontiac | Firebird |
| 1970-1972 | Pontiac | GTO |
| 1966 | GMC | K1000 Pickup |
| 1963-1967 | Chevrolet | C10 Panel |
| 1966 | GMC | K1000 |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| SVL | 10001417 |
| EXCEL from Richmond | 12BT308 |
| GMC | 14022236 |
| Yukon Gear and Axle | 24459 |
| Richmond Gear | 49-0068-1 |
| Nitro Gear & Axle | GM12T-308-NG |
| Yukon Gear and Axle | YG GM12T-308 |
