SKU:
GTP09395

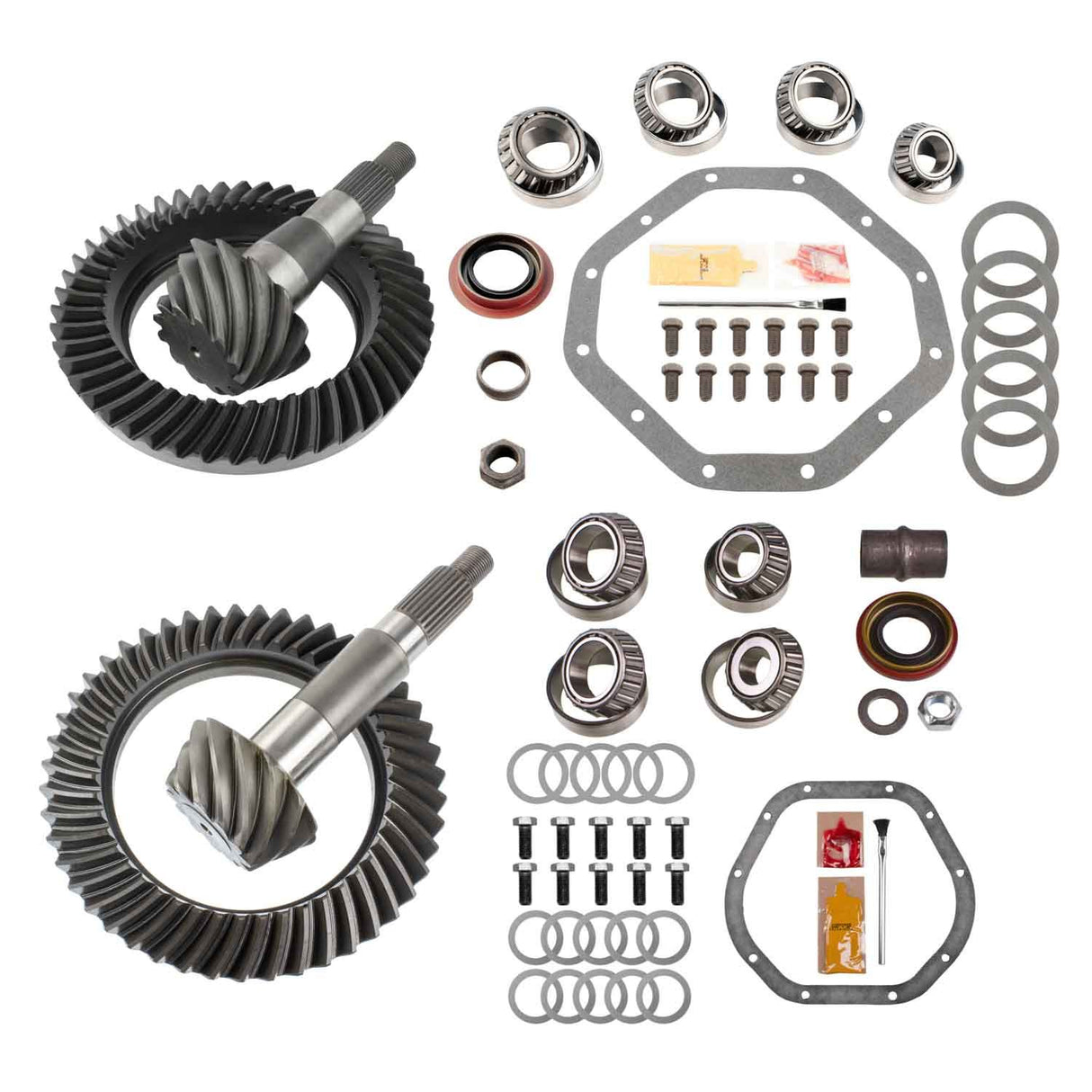

3.92 Ratio Dana 44 Standard For ()
Regular price
$755.70
Unit price
/
Unavailable
Shipping calculated at checkout.
3.92 Ratio Dana 44 Standard For () is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
3.92 Ratio Dana 44 Standard For ()
Regular price
$755.70
Unit price
/
Unavailable
This Differential Ring and Pinion is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Cover Bolt Quantity | 10 Front (D44-392) |
|---|---|
| Cover Bolt Quantity | 12 Rear (C9.25-392) |
| Differential Carrier Break | 3.92 Ratio and Higher |
| Differential Model | Chrysler 9.25 Rear |
| Differential Model | Dana 44 Standard |
| Gear Ratio | 3.92 |
| Mounting Location | Front and Rear |
| Pinion Gear Tooth Quantity | 12 |
| Pinion Shaft Diameter | 1.376 Front (D44-392) Inch |
| Pinion Shaft Diameter | 1.876 Rear (C9.25-392) Inch |
| Pinion Spline Count | 26 Front (D44-392) |
| Pinion Spline Count | 29 Rear (C9.25-392) |
| Ring Gear Bolt Quantity | 10 Front (D44-392) |
| Ring Gear Bolt Quantity | 12 Rear (C9.25-392) |
| Ring Gear Material | 8620 Steel |
| Ring Gear Outside Diameter | 8.5 Front (D44-392) Inch |
| Ring Gear Outside Diameter | 9.25 Rear (C9.25-392) Inch |
| Ring Gear Rotation | Standard |
| Ring Gear Tooth Quantity | 47 |
| Warranty Period | 1 Year or 50,000 Miles |
Vehicle Applications
| Year | Make | Model |
|---|---|---|
| 1994-2002 | Dodge | Ram 1500 |
| 1994-1997 | Dodge | Ram 2500 |
