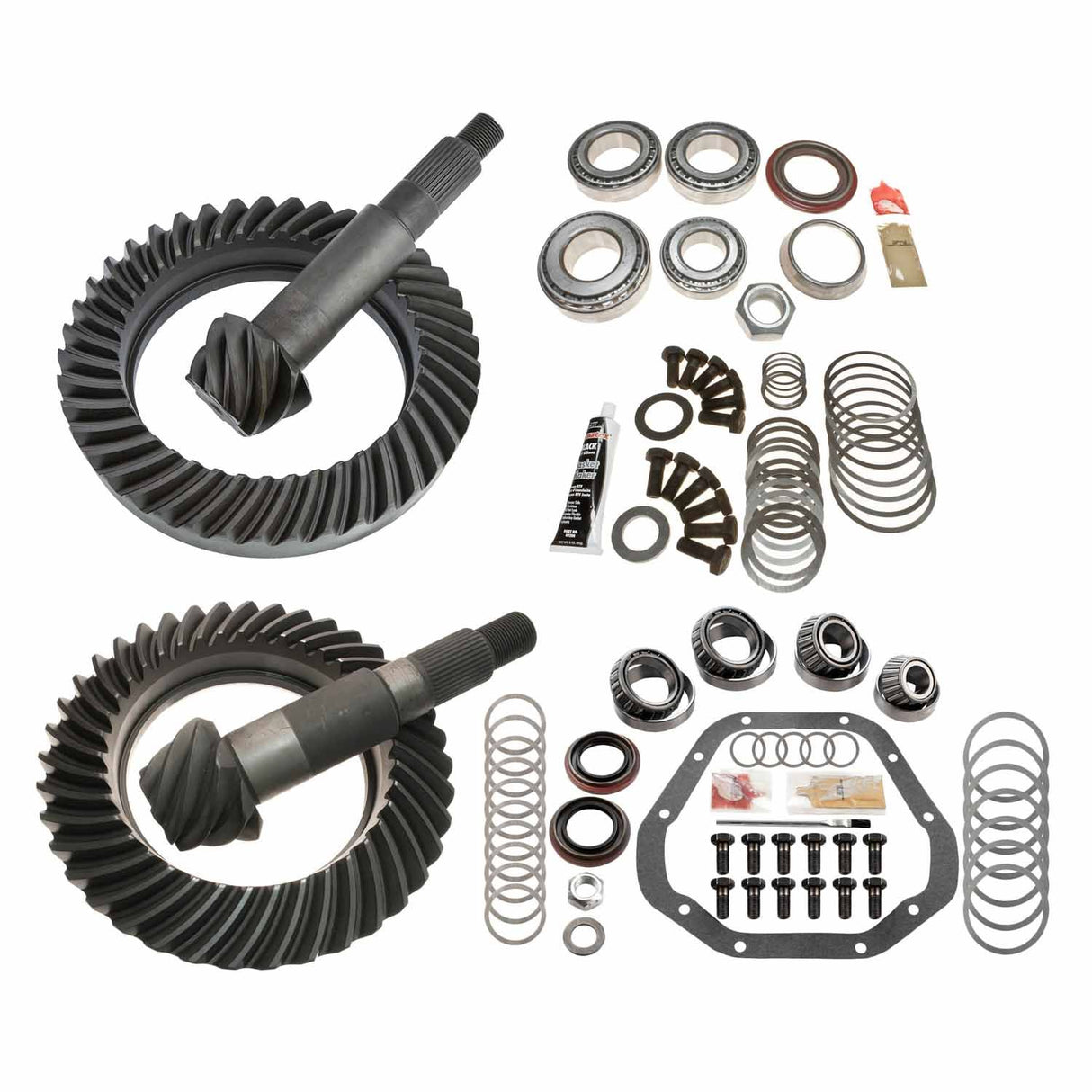

5.13 Ratio Dana 80 For ()
Regular price
$1,041.97
Unit price
/
Unavailable
This Differential Ring and Pinion is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Cover Bolt Quantity | 10 |
|---|---|
| Differential Carrier Break | 4.10 Ratio and Higher Rear (D80-513) |
| Differential Carrier Break | 4.10 Ratio and Lower Front (D60-513X) |
| Differential Model | Dana 60 Standard |
| Differential Model | Dana 80 |
| Gear Ratio | 5.13 |
| Mounting Location | Front and Rear |
| Pinion Gear Tooth Quantity | 8 |
| Pinion Shaft Diameter | 1.626 Front (D60-513X) Inch |
| Pinion Shaft Diameter | 2 Rear (D80-513) Inch |
| Pinion Spline Count | 29 Front (D60-513X) |
| Pinion Spline Count | 37 Rear (D80-513) |
| Ring Gear Bolt Quantity | 12 |
| Ring Gear Material | 8620 Steel |
| Ring Gear Outside Diameter | 11.25 Rear (D80-513) Inch |
| Ring Gear Outside Diameter | 9.75 Front (D60-513X) Inch |
| Ring Gear Rotation | Standard |
| Ring Gear Tooth Quantity | 41 |
| Warranty Period | 1 Year or 50,000 Miles |
Vehicle Applications
| Year | Make | Model |
|---|---|---|
| 1994-2002 | Dodge | Ram 3500 |
