SKU:
GTP06114

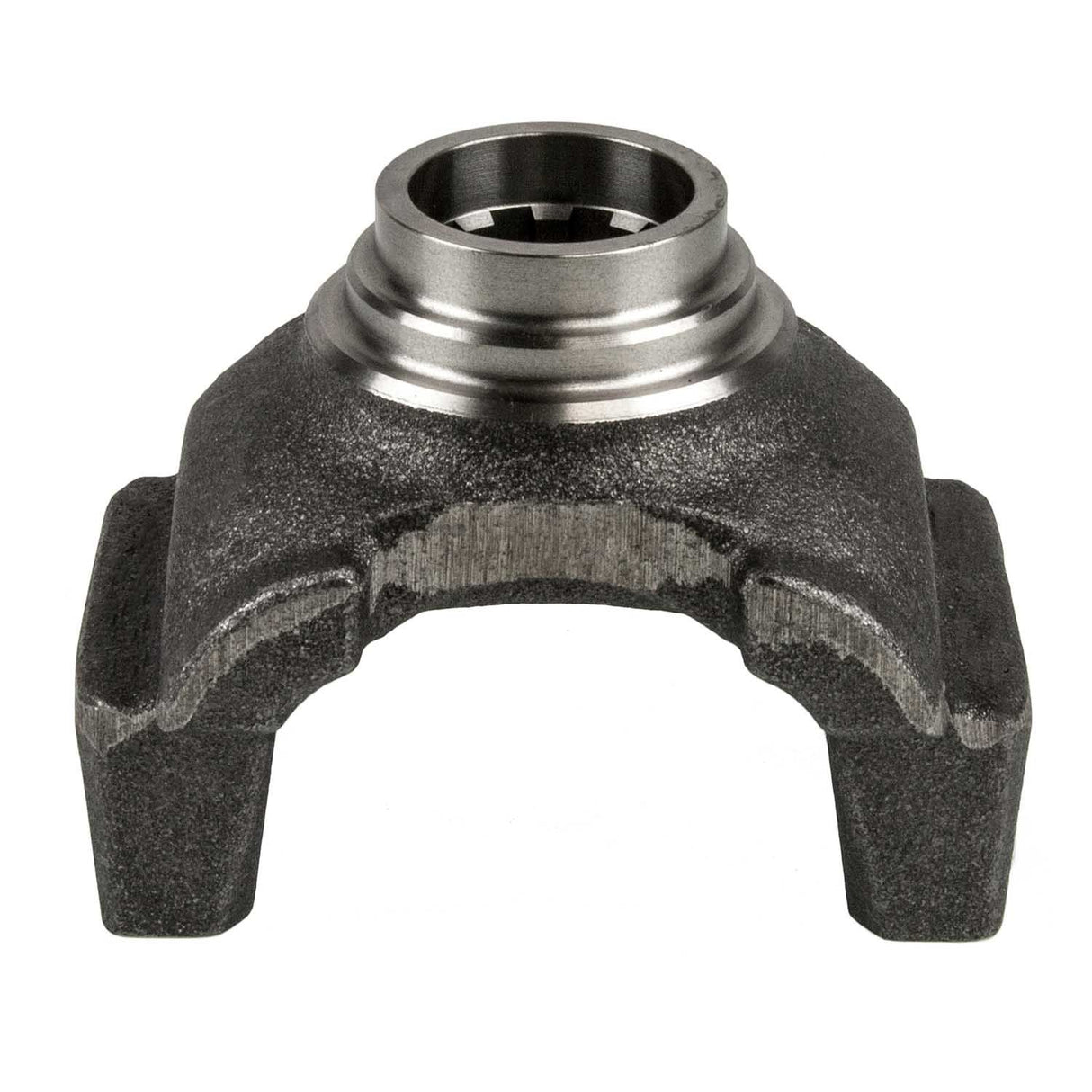

Bearing Plate Style 1610 Series End Yoke 10 Spline | 16N4-1721-1, 16N417211, 5-4-1721, 5-4-1721-1, 5-4-1721R, 5417211, 541721R, N5-4-1721-1X, S-B617, SB617, SD-5-4-1721-1, SD5417211, SP5417211
Regular price
$91.91
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1610 Series End Yoke 10 Spline | 16N4-1721-1, 16N417211, 5-4-1721, 5-4-1721-1, 5-4-1721R, 5417211, 541721R, N5-4-1721-1X, S-B617, SB617, SD-5-4-1721-1, SD5417211, SP5417211 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1610 Series End Yoke 10 Spline | 16N4-1721-1, 1...
Regular price
$91.91
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | No |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.5 Inch |
| C-Bore Depth | 0.5 Inch |
| Centerline To End | 4.125 |
| Centerline to End | 4.125 Inch |
| Dimensions | Spline Size: 1.750 - 10 Major Diameter: 1.750 Ground Hub Diameter: 2.188 Length Thru Hole: 2.250 Centerline To End: 4.125 CBore Depth: 0.500 Inch |
| Ground Hub Diameter | 2.188 Inch |
| Hub Diameter | 2.188 Inch |
| Includes Slinger/Plug | No |
| Involute Spline | Yes |
| Joint Angle | 22 Degrees |
| Length Thru Hole | 2.25 Inch |
| Length Thru Hole | 2.25 Inch |
| Major Diameter | 1.75 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.188 Inch |
| Outside Yoke Dimension | 5.312 Inch |
| Series | 1610 Series (Half Round) |
| Spline Quantity | 10 |
| Spline Size | 1.750 - 10 Inch |
| Style | HR |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.875 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 16N4-1721-1 |
| Meritor | 16N417211 |
| Spicer | 5-4-1721 |
| Spicer | 5-4-1721-1 |
| Spicer | 5-4-1721R |
| Prima Brands | 5417211 |
| World American | 541721R |
| Neapco OE Series | N5-4-1721-1X |
| Genuine Newstar | S-B617 |
| Genuine Newstar | SB617 |
| Genuine Newstar | SD-5-4-1721-1 |
| Spicer | SD5417211 |
| Freightliner | SP5417211 |
