SKU:
GTP06044

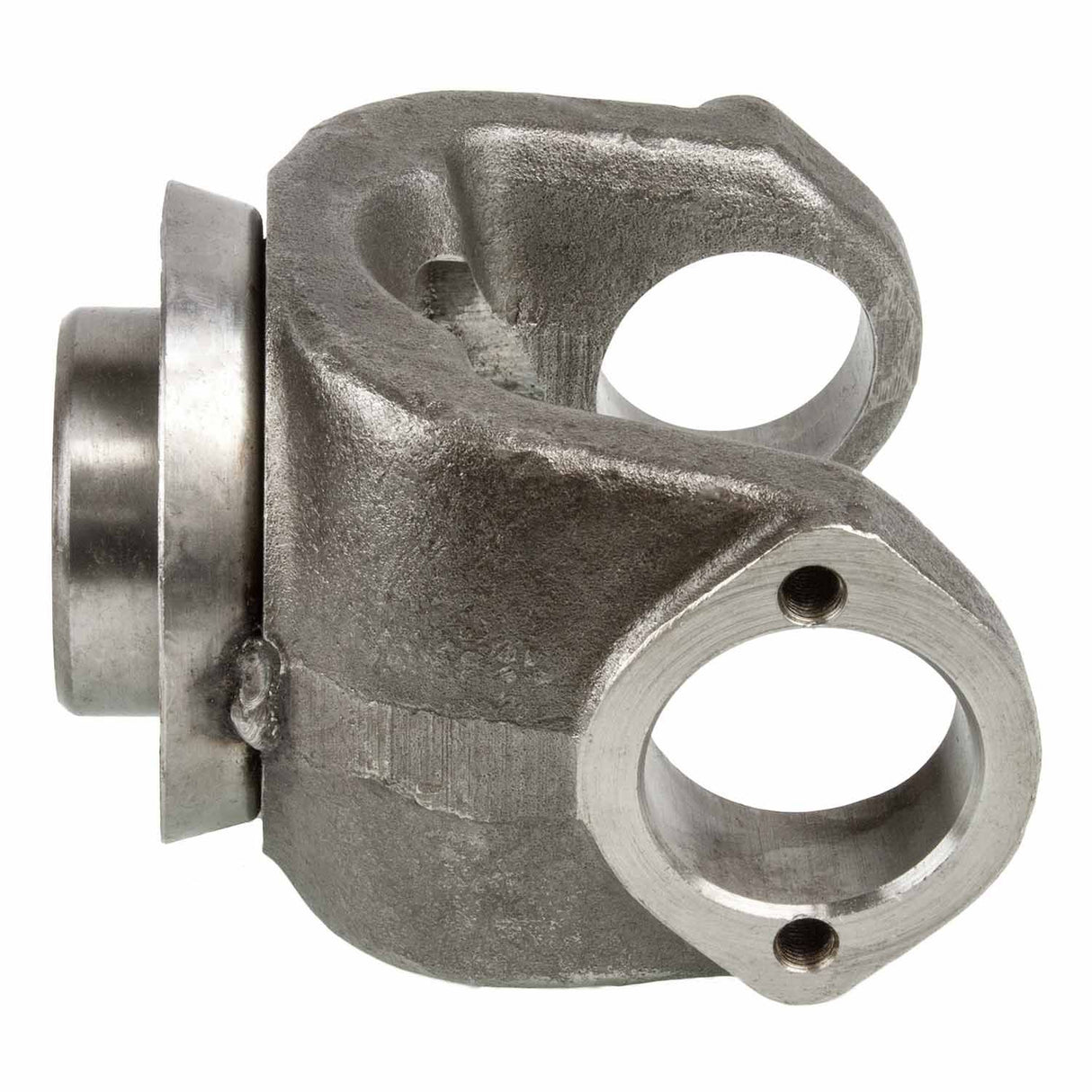

Bearing Plate Style 1710 Series End Yoke 10 Spline | 1034157, 17N4-4721, 17N4-4731X, 435-642-C, 6-4-4721, 6-4-4731, 6-4-4731X, S-9031, S9031, SD-6-4-4731, SD644731, SP644731X
Regular price
$104.26
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 10 Spline | 1034157, 17N4-4721, 17N4-4731X, 435-642-C, 6-4-4721, 6-4-4731, 6-4-4731X, S-9031, S9031, SD-6-4-4731, SD644731, SP644731X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 10 Spline | 1034157, 17N4-...
Regular price
$104.26
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| C'bore Depth | 0.25 Inch |
| C-Bore Depth | 0.25 Inch |
| Centerline to End | 4.5 Inch |
| Centerline To End | 4.5 |
| Dimensions | Spline Size: 1.962 - 10 Major Diameter: 1.962 Ground Hub Diameter: 2.625 Length Thru Hole: 2.250 Centerline To End: 4.500 CBore Depth: 0.250 Inch |
| Ground Hub Diameter | 2.625 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 21.5 Degrees |
| Length Thru Hole | 2.25 Inch |
| Length Thru Hole | 2.25 Inch |
| Major Diameter | 1.962 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.625 Inch |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 1.962 Inch |
| Spline Quantity | 10 |
| Spline Size | 1.962 - 10 Inch |
| Style | BP |
| Type | Splined Hole |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 1034157 |
| Meritor | 17N4-4721 |
| Meritor | 17N4-4731X |
| International | 435-642-C |
| Spicer | 6-4-4721 |
| Spicer | 6-4-4731 |
| Spicer | 6-4-4731X |
| Genuine Newstar | S-9031 |
| Genuine Newstar | S9031 |
| Genuine Newstar | SD-6-4-4731 |
| Spicer | SD644731 |
| Freightliner | SP644731X |
