SKU:
GTP06050

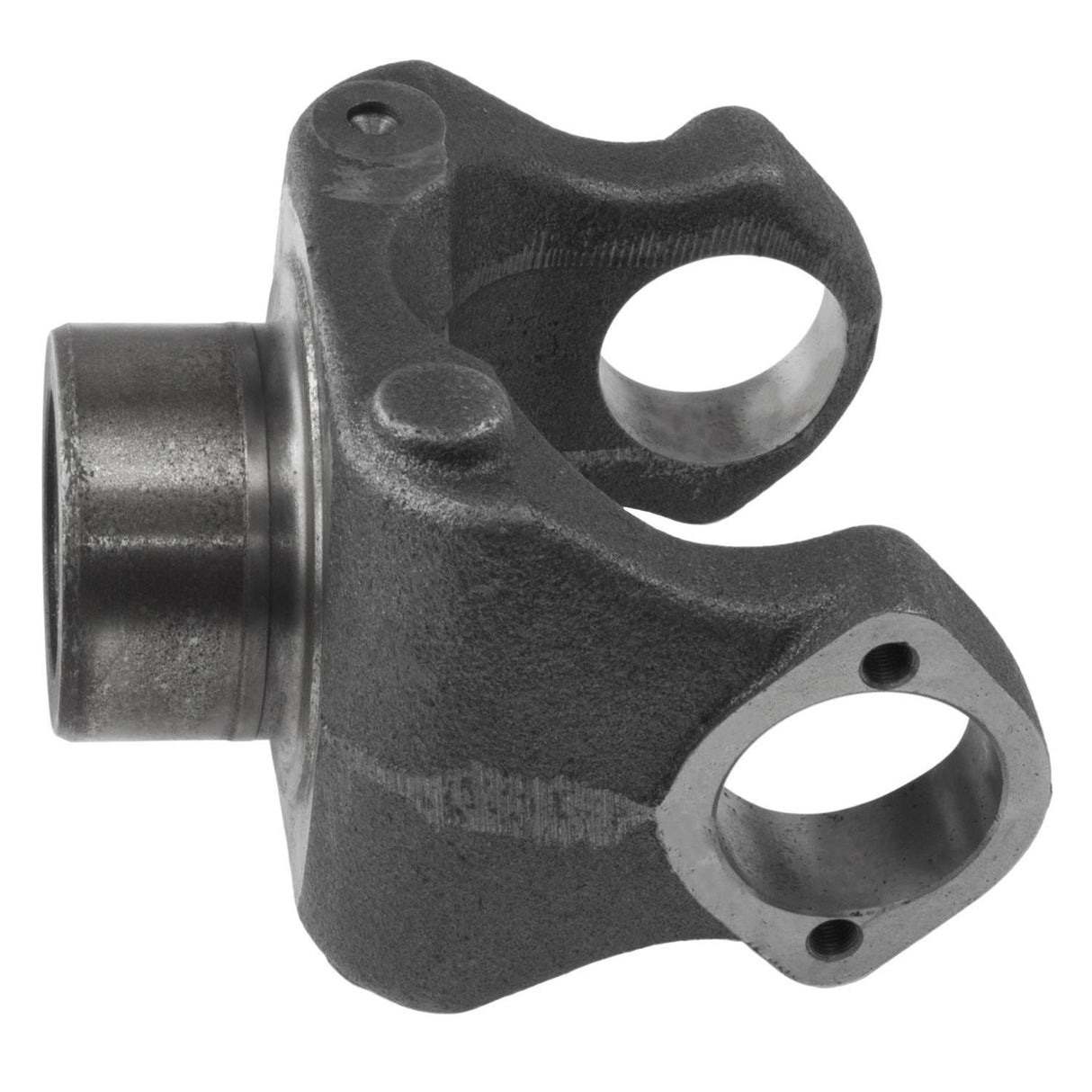

Bearing Plate Style 1710 Series End Yoke 10 Spline | 1662-248-C, 17N-4-4291X, 17N4-3241, 2104-643241, 2471192, 3897-L-1000, 489947, 6-4-3241, 6-4-3241X, 6-4-4291X, 6-4-4741X, 644741X, 977-867-R, A1-3897-L-1000, C6TZ-4351-B, N6-4-3241, S-2012, S2012
Regular price
$97.40
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 10 Spline | 1662-248-C, 17N-4-4291X, 17N4-3241, 2104-643241, 2471192, 3897-L-1000, 489947, 6-4-3241, 6-4-3241X, 6-4-4291X, 6-4-4741X, 644741X, 977-867-R, A1-3897-L-1000, C6TZ-4351-B, N6-4-3241, S-2012, S2012 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 10 Spline | 1662-248-C, 17...
Regular price
$97.40
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| Centerline To End | 5.188 |
| Centerline to End | 5.188 Inch |
| Dimensions | Spline Size: 2.000 - 10 Major Diameter: 2.000 Ground Hub Diameter: 2.938 Length Thru Hole: 2.562 Centerline To End: 5.188 Inch |
| Ground Hub Diameter | 2.938 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Joint Angle | 25 Degrees |
| Length Thru Hole | 2.562 Inch |
| Length Thru Hole | 2.562 Inch |
| Major Diameter | 2 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.938 Inch |
| Outside Yoke Dimension | 6.094 Inch |
| Series | 1710 Series (Full Round) |
| Spline Quantity | 10 |
| Spline Size | 2.000 - 10 Inch |
| Style | BP |
| Type | Splined Hole |
| U Joint Cap Diameter | 2 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1662-248-C |
| Meritor | 17N-4-4291X |
| Meritor | 17N4-3241 |
| Mack | 2104-643241 |
| Mei | 2471192 |
| Meritor | 3897-L-1000 |
| Spicer | 489947 |
| Spicer | 6-4-3241 |
| Spicer | 6-4-3241X |
| Spicer | 6-4-4291X |
| Spicer | 6-4-4741X |
| Spicer | 644741X |
| International | 977-867-R |
| Meritor | A1-3897-L-1000 |
| Ford | C6TZ-4351-B |
| Neapco OE Series | N6-4-3241 |
| Genuine Newstar | S-2012 |
| Genuine Newstar | S2012 |
| Genuine Newstar | SD-6-4-3241 |
| Spicer | SD643241 |
