SKU:
GTP06052

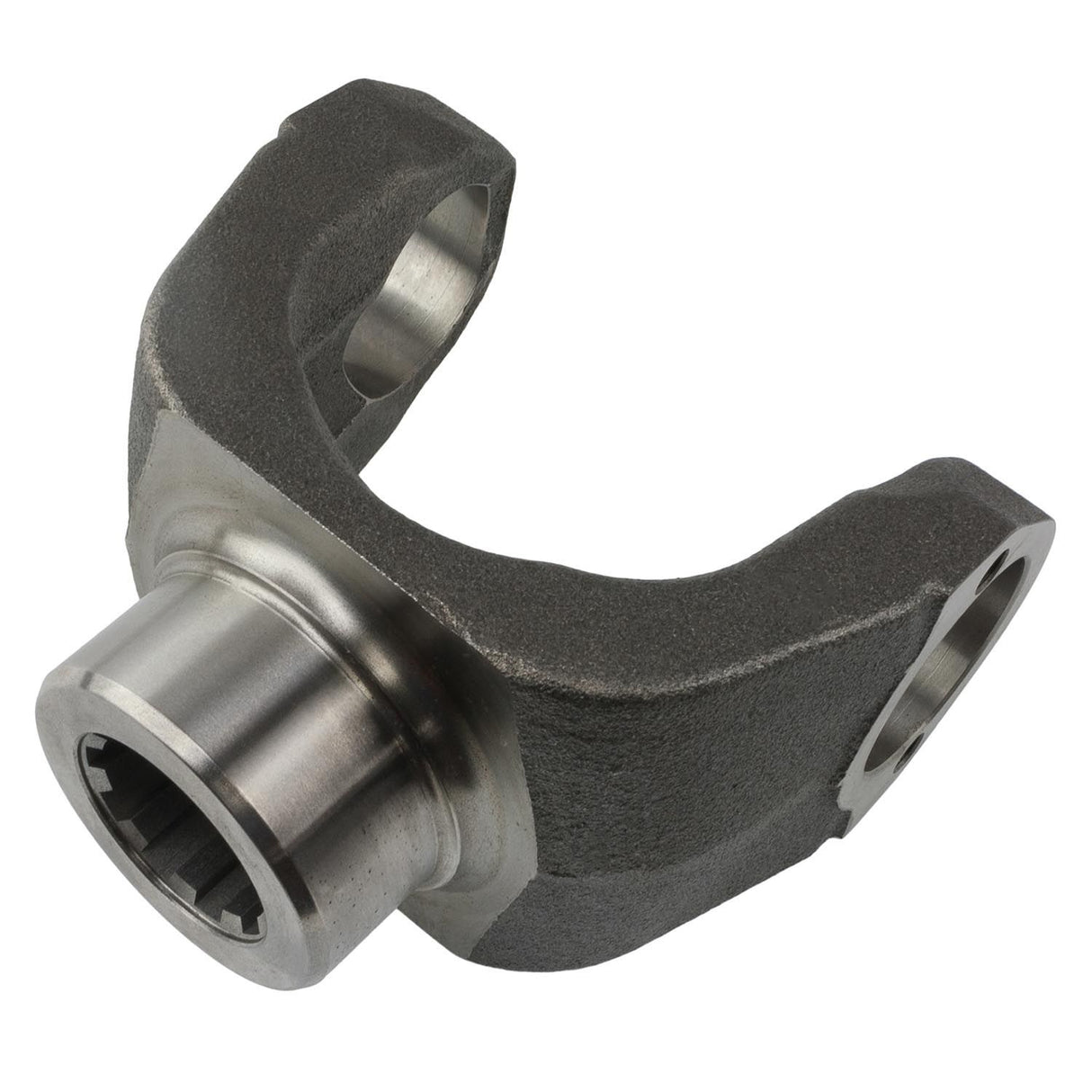

Bearing Plate Style 1710 Series End Yoke 10 Spline | 175838, 17N4-2381, 3280-M-2223, 446-615-R, 446615R, 446615R1, 6-4-2381, MER-17N42381, N6-4-2381, PAC6-4-2381, S-3927, S3927, SD-6-4-2381, SD642381, TC6-4-2381
Regular price
$87.12
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 10 Spline | 175838, 17N4-2381, 3280-M-2223, 446-615-R, 446615R, 446615R1, 6-4-2381, MER-17N42381, N6-4-2381, PAC6-4-2381, S-3927, S3927, SD-6-4-2381, SD642381, TC6-4-2381 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 10 Spline | 175838, 17N4-2...
Regular price
$87.12
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 6.09 Inch |
|---|---|
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| C'bore Depth | 0.06 Inch |
| Centerline To End | 4.875 |
| Centerline to End | 4.88 Inch |
| Dimensions | Spline Size: 1.750 - 10 Major Diameter: 1.750 Ground Hub Diameter: 2.750 Length Thru Hole: 2.250 Centerline To End: 4.875 CBore Depth: 0.060 Inch |
| Ground Hub Diameter | 2.75 Inch |
| Ground Hub Diameter | 2.75 Inch |
| Joint Angle | 34 Degrees |
| Length Thru Hole | 2.25 Inch |
| Major Diameter | 1.75 Inch |
| Material | Steel |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 1.75 Inch |
| Spline Length | 2.25 Inch |
| Spline Quantity | 10 |
| Spline Size | 1.750 - 10 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1710 |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 175838 |
| Meritor | 17N4-2381 |
| Meritor | 3280-M-2223 |
| International | 446-615-R |
| International | 446615R |
| International | 446615R1 |
| Spicer | 6-4-2381 |
| Meritor | MER-17N42381 |
| Neapco OE Series | N6-4-2381 |
| Spicer | PAC6-4-2381 |
| Genuine Newstar | S-3927 |
| Genuine Newstar | S3927 |
| Genuine Newstar | SD-6-4-2381 |
| Spicer | SD642381 |
| Spicer | TC6-4-2381 |
