SKU:
GTP06054

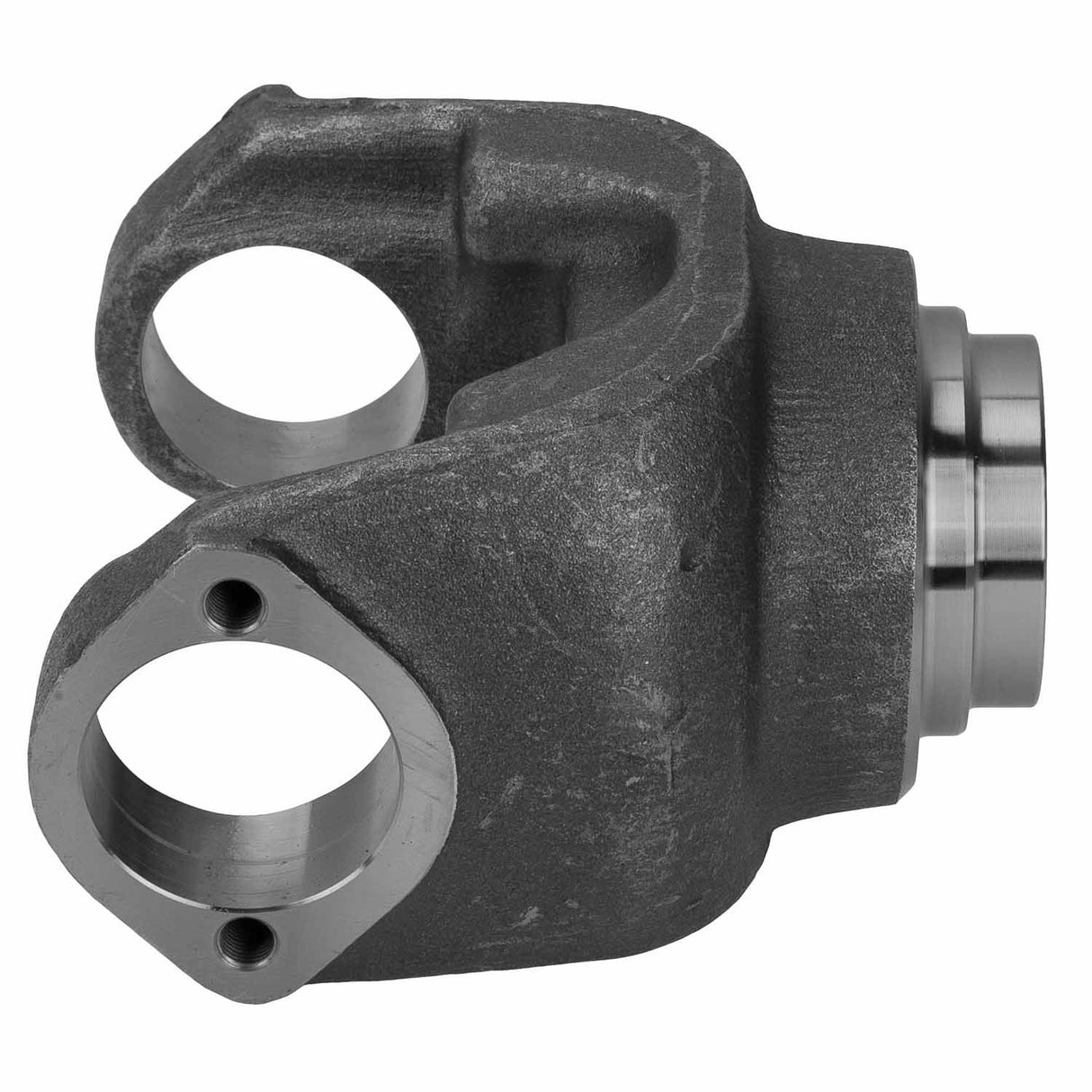

Bearing Plate Style 1710 Series End Yoke 10 Spline | 17N4-1981, 283-360-C, 283360C, 283360C1, 29741, 6-4-1981, 6-4-1981X, 753.641981, DM6-4-1981, N6-4-1981, NEPN6-4-1981, NSCS641981, PAC6-4-1981, S-5780, S5780, SD-6-4-1981, SD641981, SNV6824, TC6-4-1981
Regular price
$93.14
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 10 Spline | 17N4-1981, 283-360-C, 283360C, 283360C1, 29741, 6-4-1981, 6-4-1981X, 753.641981, DM6-4-1981, N6-4-1981, NEPN6-4-1981, NSCS641981, PAC6-4-1981, S-5780, S5780, SD-6-4-1981, SD641981, SNV6824, TC6-4-1981 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 10 Spline | 17N4-1981, 283...
Regular price
$93.14
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 6.09 Inch |
|---|---|
| Assembly | No |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| Centerline To End | 5 |
| Centerline to End | 5 Inch |
| Dimensions | Spline Shaft: 1.960 - 10 Major Diameter: 1.960 Ground Hub Diameter: 2.812 Length Thru Hole: 3.000 Centerline To End: 5.000 Inch |
| Ground Hub Diameter | 2.812 Inch |
| Ground Hub Diameter | 2.81 Inch |
| Includes Slinger/Plug | No |
| Involute Spline | No |
| Joint Angle | 24 Degrees |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 1.96 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.812 Inch |
| Outside Yoke Dimension | 6.094 Inch |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 1.969 Inch |
| Spline Length | 3 Inch |
| Spline Quantity | 10 |
| Spline Shaft | 1.960 - 10 |
| Spline Size | 1.960 - 10 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1710 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 17N4-1981 |
| International | 283-360-C |
| International | 283360C |
| International | 283360C1 |
| Spicer | 29741 |
| Spicer | 6-4-1981 |
| Spicer | 6-4-1981X |
| Automann | 753.641981 |
| DT Components | DM6-4-1981 |
| Neapco OE Series | N6-4-1981 |
| Automann | NEPN6-4-1981 |
| International | NSCS641981 |
| Spicer | PAC6-4-1981 |
| Genuine Newstar | S-5780 |
| Genuine Newstar | S5780 |
| Genuine Newstar | SD-6-4-1981 |
| Spicer | SD641981 |
| Spicer | SNV6824 |
| Spicer | TC6-4-1981 |
