SKU:
GTP11737

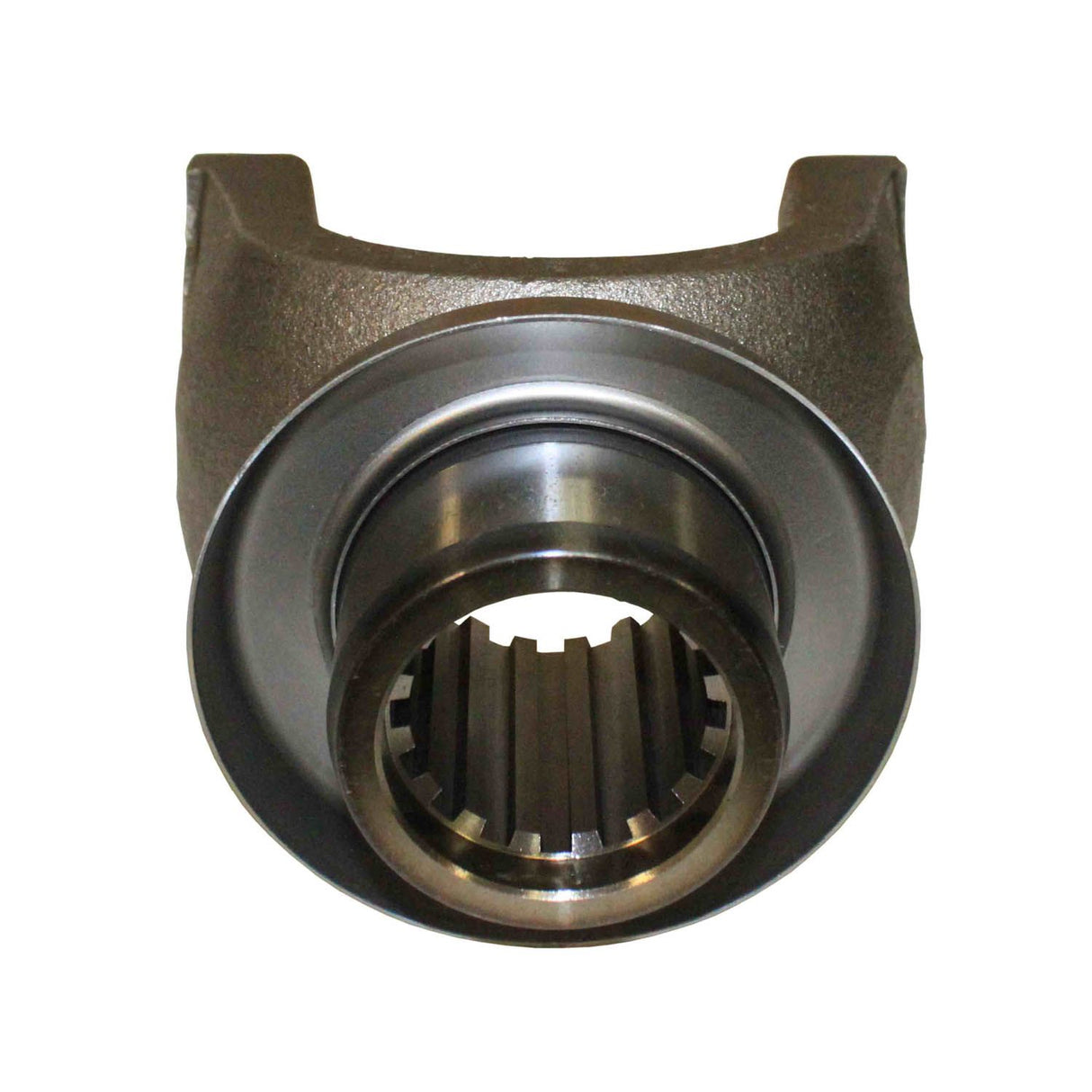

Bearing Plate Style 1710 Series End Yoke 16 Spline | 17N-4-4591, 17N4-5481, 17N4-5481X, 6-4-5481R, 6-4-5481X, 6-4-9841X, 644591, PAC6-4-5481X, S-A848, SA848, SD-6-4-5481X, SD645481X
Regular price
$134.79
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 16 Spline | 17N-4-4591, 17N4-5481, 17N4-5481X, 6-4-5481R, 6-4-5481X, 6-4-9841X, 644591, PAC6-4-5481X, S-A848, SA848, SD-6-4-5481X, SD645481X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 16 Spline | 17N-4-4591, 17...
Regular price
$134.79
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| C'bore Depth | 0.38 Inch |
| C-Bore Depth | 0.38 Inch |
| Centerline to End | 6.625 Inch |
| Centerline To End | 6.625 |
| Dimensions | Spline Size: 2.149 - 16 Major Diameter: 2.149 Ground Hub Diameter: 2.938 Length Thru Hole: 3.000 Centerline To End: 6.625 CBore Depth: .380 Inch |
| Ground Hub Diameter | 2.938 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 2.149 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.938 Inch |
| Outside Yoke Dimension | 6.094 Inch |
| Series | 1710 Series (Full Round) |
| Spline Quantity | 16 |
| Spline Size | 2.149 - 16 Inch |
| Style | BP |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 17N-4-4591 |
| Meritor | 17N4-5481 |
| Meritor | 17N4-5481X |
| World American | 6-4-5481R |
| Spicer | 6-4-5481X |
| Spicer | 6-4-9841X |
| Spicer | 644591 |
| Spicer | PAC6-4-5481X |
| Genuine Newstar | S-A848 |
| Genuine Newstar | SA848 |
| Genuine Newstar | SD-6-4-5481X |
| Spicer | SD645481X |
