SKU:
GTP06040

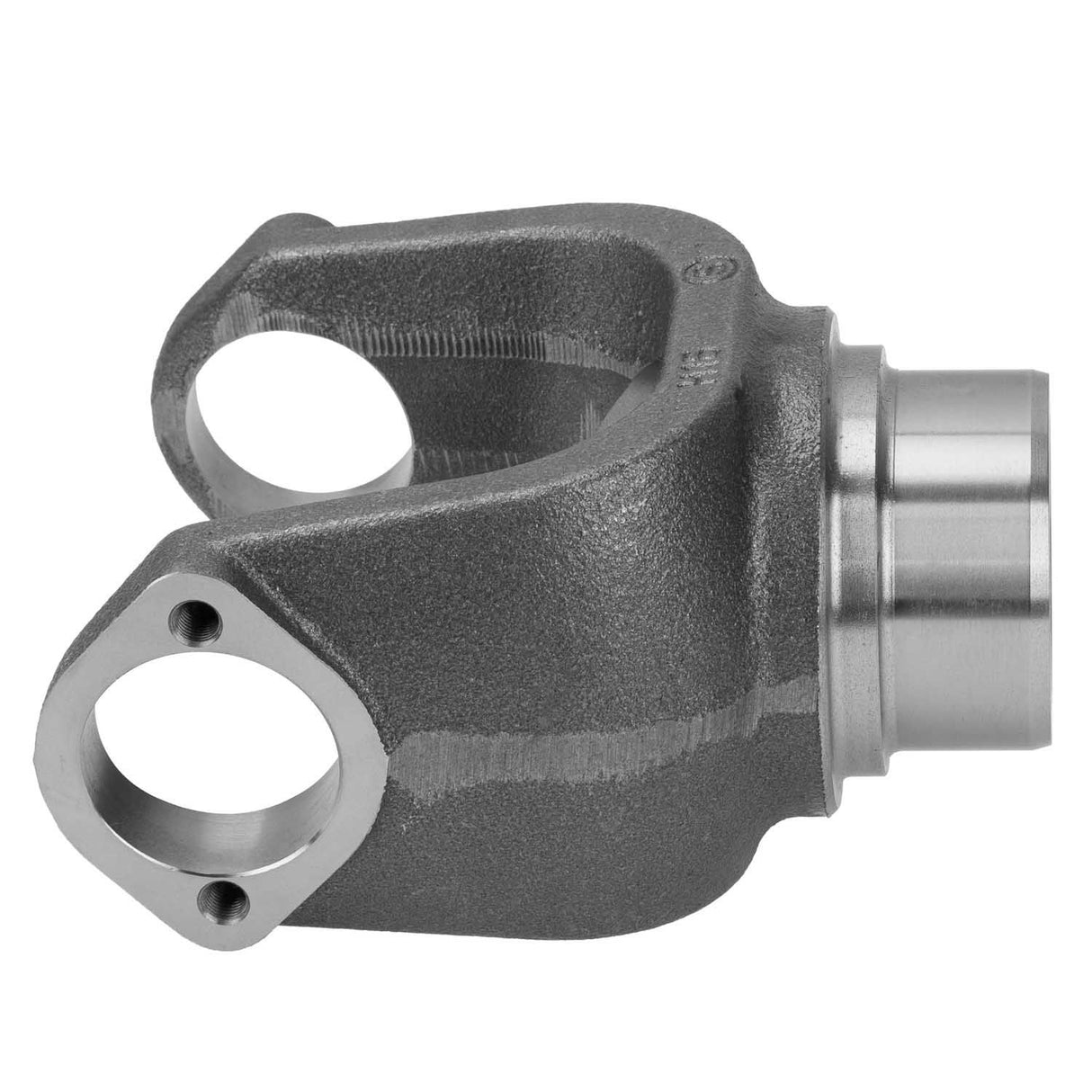

Bearing Plate Style 1710 Series End Yoke 32 Spline | 1421315, 1649805C, 1649805C91, 17N4-5791, 6-4-5791, 6-4-5791X, 6-4-7171X, N6-4-5791, S-B228, SB228, SD-6-4-5791, SD645791, SP645791
Regular price
$111.87
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 32 Spline | 1421315, 1649805C, 1649805C91, 17N4-5791, 6-4-5791, 6-4-5791X, 6-4-7171X, N6-4-5791, S-B228, SB228, SD-6-4-5791, SD645791, SP645791 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 32 Spline | 1421315, 16498...
Regular price
$111.87
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 6.09 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| C'bore Depth | 0.424 Inch |
| C-Bore Depth | 0.424 Inch |
| Centerline to End | 6.25 Inch |
| Centerline To End | 6.25 |
| Dimensions | Spline Size: 2.114 - 32 Major Diameter: 2.114 Ground Hub Diameter: 3.000 Length Thru Hole: 2.250 Centerline To End: 6.250 CBore Depth: 0.424 Inch |
| Ground Hub Diameter | 3 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 45 Degrees |
| Length Thru Hole | 2.25 Inch |
| Length Thru Hole | 2.25 Inch |
| Major Diameter | 2.114 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Outside Yoke Dimension | 6.094 Inch |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 2.109 Inch |
| Spline Length | 2.25 Inch |
| Spline Quantity | 32 |
| Spline Size | 2.114 - 32 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1710 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 1421315 |
| International | 1649805C |
| International | 1649805C91 |
| Meritor | 17N4-5791 |
| Spicer | 6-4-5791 |
| Spicer | 6-4-5791X |
| Spicer | 6-4-7171X |
| Neapco OE Series | N6-4-5791 |
| Genuine Newstar | S-B228 |
| Genuine Newstar | SB228 |
| Genuine Newstar | SD-6-4-5791 |
| Spicer | SD645791 |
| Freightliner | SP645791 |
