SKU:
GTP06033

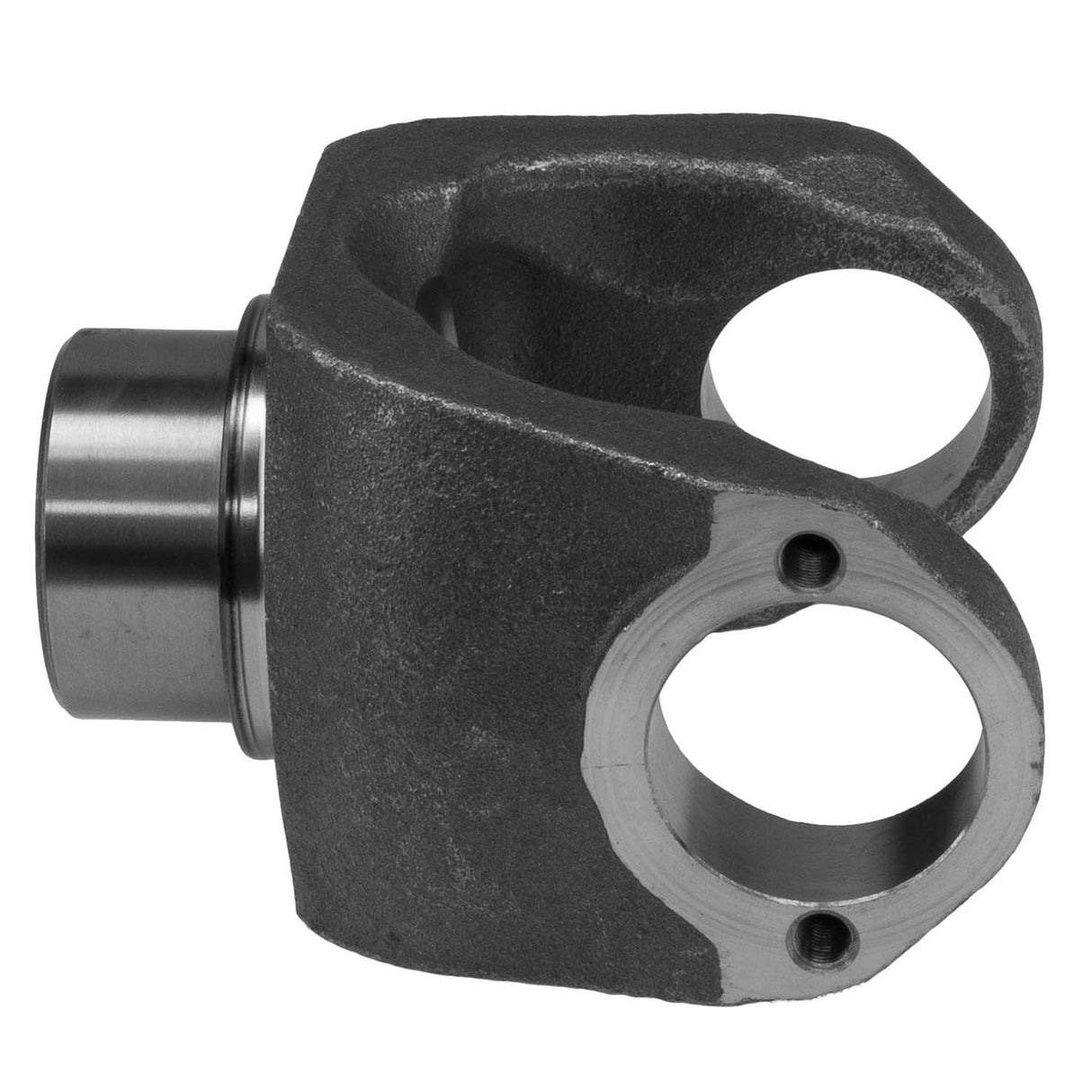

Bearing Plate Style 1710 Series End Yoke 34 Spline | 1618545, 17N4-6331, 3260-V-126, 583-092-C, 6-4-5131X, 6-4-6331, MER-17N46331, N6-4-6331, S-B818, SB818, SD-6-4-6331, SD646331, TDA 17N4 6331
Regular price
$89.71
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 34 Spline | 1618545, 17N4-6331, 3260-V-126, 583-092-C, 6-4-5131X, 6-4-6331, MER-17N46331, N6-4-6331, S-B818, SB818, SD-6-4-6331, SD646331, TDA 17N4 6331 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 34 Spline | 1618545, 17N4-...
Regular price
$89.71
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| C'bore Depth | 0.09 Inch |
| Centerline To End | 4.875 |
| Centerline to End | 4.875 Inch |
| Dimensions | Spline Size: 1.774 - 34 Major Diameter: 1.774 Ground Hub Diameter: 2.500 Length Thru Hole: 2.250 Centerline To End: 4.875 CBore Depth: 0.090 Inch |
| Ground Hub Diameter | 2.5 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Length Thru Hole | 2.25 Inch |
| Length Thru Hole | 2.25 Inch |
| Major Diameter | 1.774 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.5 Inch |
| Outside Yoke Dimension | 6.094 Inch |
| Series | 1710 Series (Full Round) |
| Spline Quantity | 34 |
| Spline Size | 1.774 - 34 Inch |
| Style | BP |
| Type | Splined Hole |
| U Joint Cap Diameter | 1.774 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 1618545 |
| Meritor | 17N4-6331 |
| Meritor | 3260-V-126 |
| International | 583-092-C |
| Spicer | 6-4-5131X |
| Spicer | 6-4-6331 |
| Meritor | MER-17N46331 |
| Neapco OE Series | N6-4-6331 |
| Genuine Newstar | S-B818 |
| Genuine Newstar | SB818 |
| Genuine Newstar | SD-6-4-6331 |
| Spicer | SD646331 |
| Freightliner | TDA 17N4 6331 |
