SKU:
GTP06028

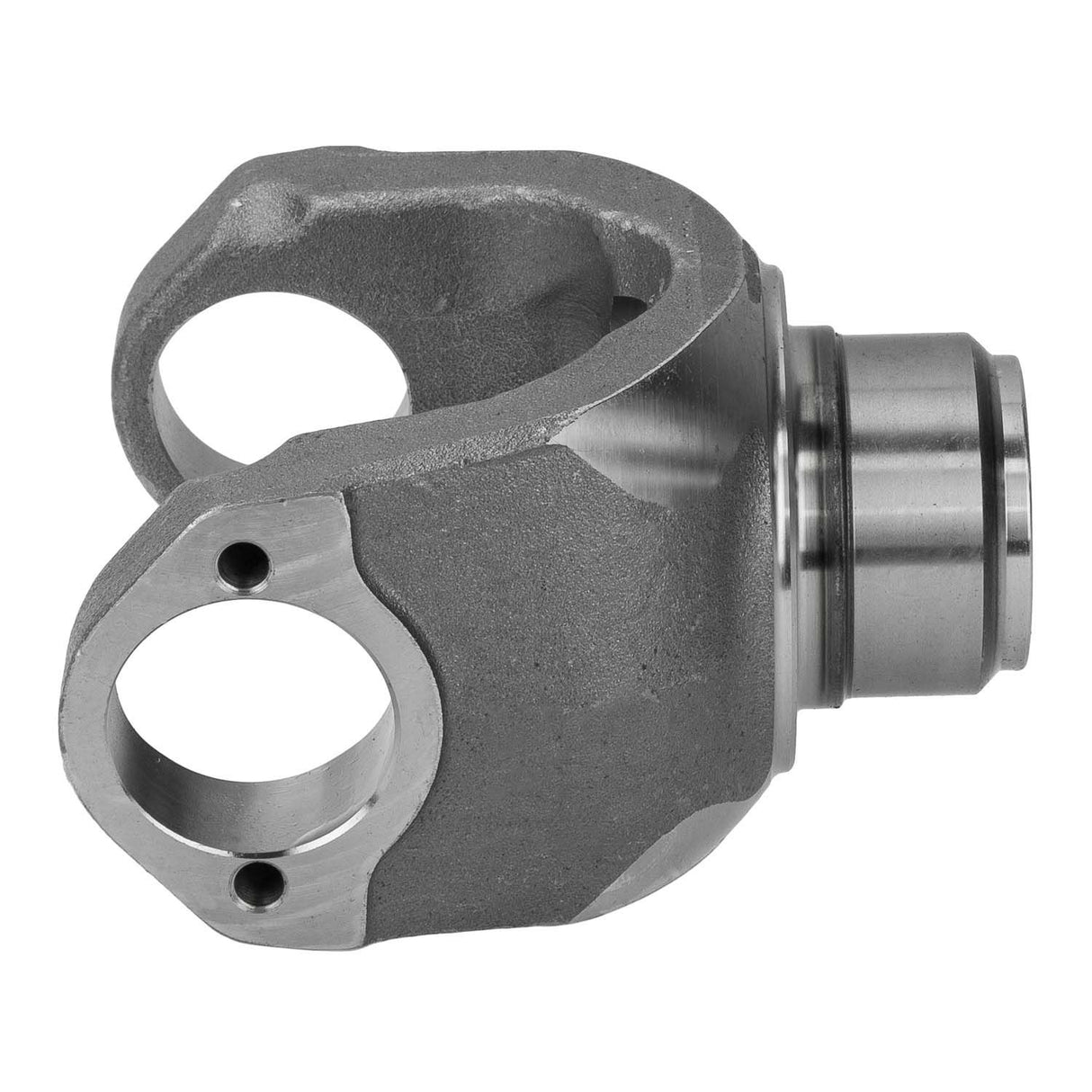

Bearing Plate Style 1710 Series End Yoke 34 Spline | 1673333, 17N4-6481, 17NYS28-51, 2104-646481, 6-4-6481, 6-4-6481X, 6-4-8511XR, N6-4-6481, PAC6-4-6481, S-9028, S9028, SD-6-4-6481, SD646481, SP646481X
Regular price
$108.01
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 34 Spline | 1673333, 17N4-6481, 17NYS28-51, 2104-646481, 6-4-6481, 6-4-6481X, 6-4-8511XR, N6-4-6481, PAC6-4-6481, S-9028, S9028, SD-6-4-6481, SD646481, SP646481X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 34 Spline | 1673333, 17N4-...
Regular price
$108.01
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | No |
|---|---|
| Bearing Type | BP |
| C'bore Depth | 0.25 Inch |
| C-Bore Diameter | 1.81 |
| Centerline To End | 5.438 |
| Centerline to End | 5.438 Inch |
| Dimensions | Spline Size: 1.790 - 34 Major Diameter: 1.790 Ground Hub Diameter: 2.625 Length Thru Hole: 2.438 Centerline To End: 5.438 CBore Depth: 0.250 Inch |
| Ground Hub Diameter | 2.625 Inch |
| Includes Slinger/Plug | No |
| Joint Angle | 34 Degrees |
| Length Thru Hole | 2.438 Inch |
| Length Thru Hole | 2.438 Inch |
| Major Diameter | 1.79 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.625 Inch |
| Outside Yoke Dimension | 6.094 Inch |
| Series | 1710 Series (Full Round) |
| Spline Quantity | 34 |
| Spline Size | 1.790 - 34 Inch |
| Style | BP |
| Type | Splined Hole |
| U Joint Cap Diameter | 1.79 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 1673333 |
| Meritor | 17N4-6481 |
| Meritor | 17NYS28-51 |
| Mack | 2104-646481 |
| Spicer | 6-4-6481 |
| Spicer | 6-4-6481X |
| World American | 6-4-8511XR |
| Neapco OE Series | N6-4-6481 |
| Spicer | PAC6-4-6481 |
| Genuine Newstar | S-9028 |
| Genuine Newstar | S9028 |
| Genuine Newstar | SD-6-4-6481 |
| Spicer | SD646481 |
| Freightliner | SP646481X |
