SKU:
GTP11736

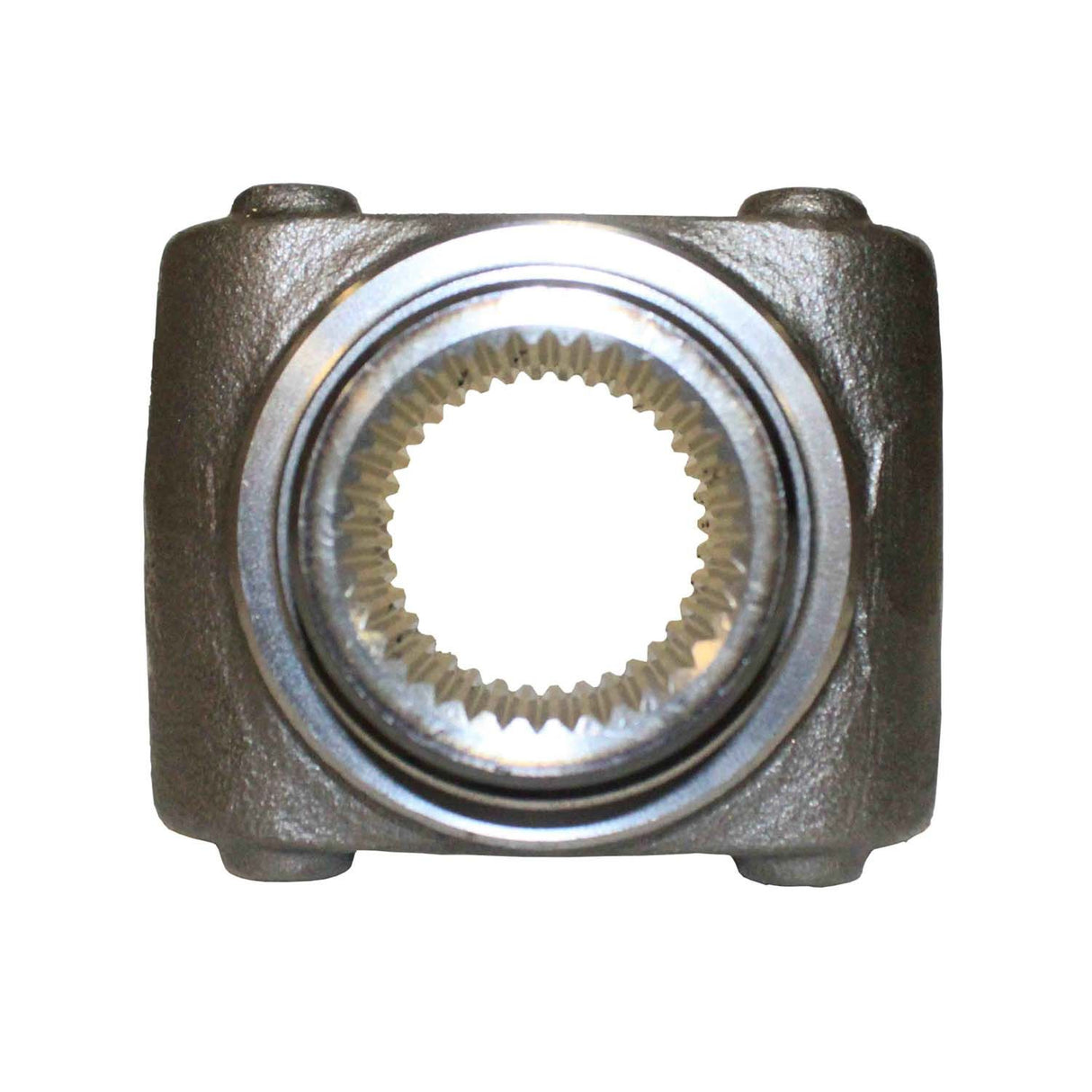

Bearing Plate Style 1710 Series End Yoke 36 Spline | 17N4-5711, 6-4-8711, 645711, 647191X, N6-4-5711, S-A166, S-A785, SA166, SA785, SD-6-4-5711, SD645711
Regular price
$111.82
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 36 Spline | 17N4-5711, 6-4-8711, 645711, 647191X, N6-4-5711, S-A166, S-A785, SA166, SA785, SD-6-4-5711, SD645711 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 36 Spline | 17N4-5711, 6-4...
Regular price
$111.82
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| Centerline To End | 5.438 |
| Centerline to End | 5.438 Inch |
| Dimensions | Spline Size: 2.364 - 36 Major Diameter: 2.364 Ground Hub Diameter: 3.000 Length Thru Hole: 2.688 Centerline To End: 5.438 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 28.5 Degrees |
| Length Thru Hole | 2.688 Inch |
| Major Diameter | 2.364 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Series | 1710 Series (Full Round) |
| Spline Quantity | 36 |
| Spline Size | 2.364 - 36 Inch |
| Style | BP |
| Type | Splined Hole |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 17N4-5711 |
| Spicer | 6-4-8711 |
| Prima Brands | 645711 |
| Spicer | 647191X |
| Neapco OE Series | N6-4-5711 |
| Genuine Newstar | S-A166 |
| Genuine Newstar | S-A785 |
| Genuine Newstar | SA166 |
| Genuine Newstar | SA785 |
| Genuine Newstar | SD-6-4-5711 |
| Spicer | SD645711 |
