SKU:
GTP06029

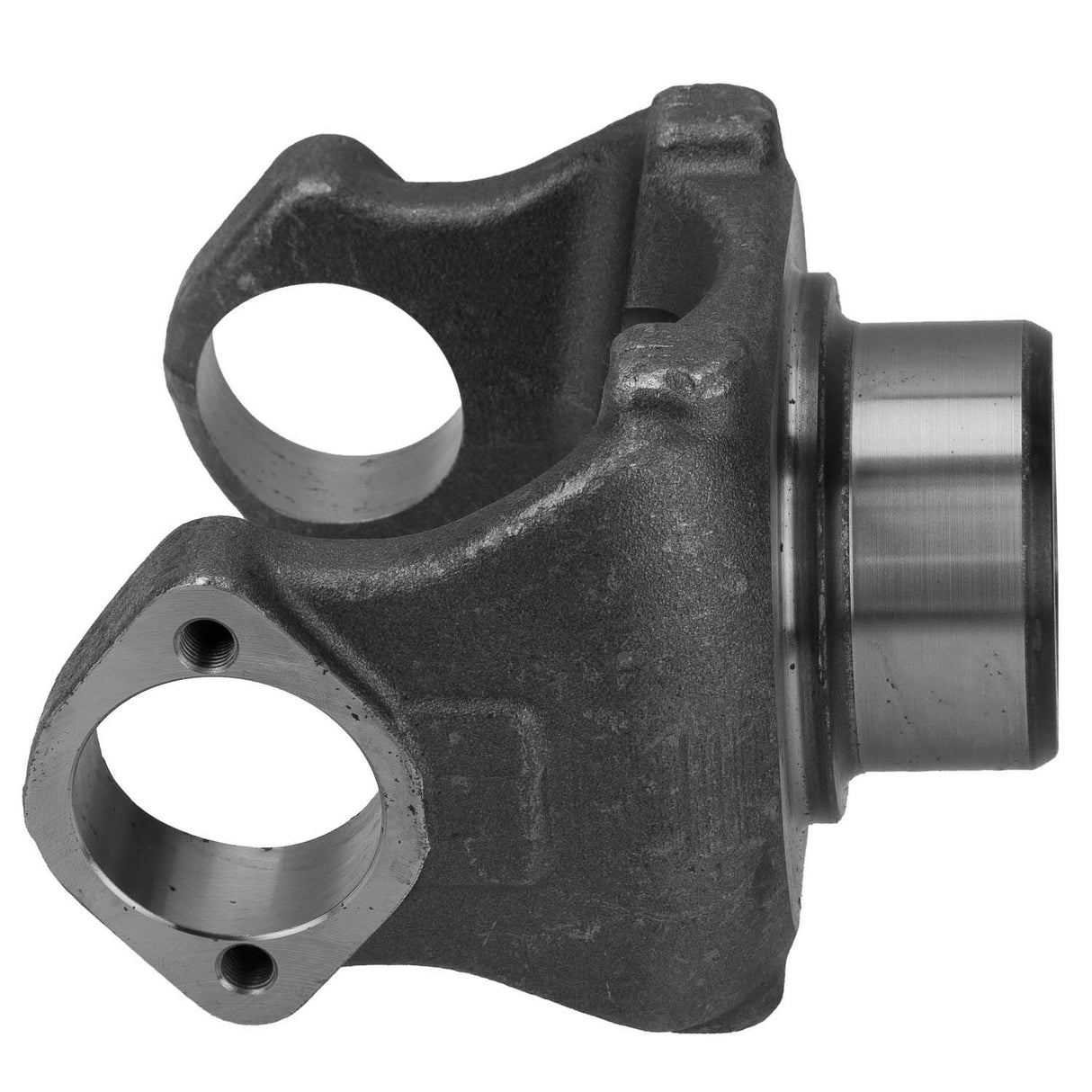

Bearing Plate Style 1710 Series End Yoke 39 Spline | 016-4-6411X, 1644113, 17N 4 6421X, 17N4-5101, 17N4-6401, 17N4-6411, 17N46421X, 17NYS32 100A, 17NYS32-100, 17NYS32-55A, 2104-646411X, 583-087-C, 583-095-C, 583095C, 583095C91, 6-4-5101, 6-4-5101X
Regular price
$101.32
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 39 Spline | 016-4-6411X, 1644113, 17N 4 6421X, 17N4-5101, 17N4-6401, 17N4-6411, 17N46421X, 17NYS32 100A, 17NYS32-100, 17NYS32-55A, 2104-646411X, 583-087-C, 583-095-C, 583095C, 583095C91, 6-4-5101, 6-4-5101X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 39 Spline | 016-4-6411X, 1...
Regular price
$101.32
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| C'bore Depth | 0.09 Inch |
| C-Bore Diameter | 0.9 Inch |
| Centerline to End | 5.156 Inch |
| Centerline To End | 5.156 |
| Dimensions | Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter:3.000 Length Thru Hole: 2.327 Centerline To End: 5.156 CBore Depth: 0.090 Inch |
| Ground Hub Diameter | 3 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Joint Angle | 30 Degrees |
| Length Thru Hole | 2.327 Inch |
| Length Thru Hole | 2.327 Inch |
| Major Diameter | 2.024 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Outside Yoke Dimension | 6.094 Inch |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 2.031 Inch |
| Spline Length | 2.31 Inch |
| Spline Quantity | 39 |
| Spline Size | 2.024 - 39 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1710 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Freightliner | 016-4-6411X |
| Spicer | 1644113 |
| Meritor | 17N 4 6421X |
| Meritor | 17N4-5101 |
| Meritor | 17N4-6401 |
| Meritor | 17N4-6411 |
| Spicer | 17N46421X |
| Meritor | 17NYS32 100A |
| Spicer | 17NYS32-100 |
| Meritor | 17NYS32-55A |
| Mack | 2104-646411X |
| International | 583-087-C |
| International | 583-095-C |
| International | 583095C |
| International | 583095C91 |
| Spicer | 6-4-5101 |
| Spicer | 6-4-5101X |
| Spicer | 6-4-6401 |
| Spicer | 6-4-6411 |
| Spicer | 6-4-6411X |
| Spicer | 6-4-6421 |
| Spicer | 6-4-6421X |
| Spicer | 646411X |
| Meritor | A-3280-H-5520 |
| Meritor | A1-3260-Q-121 |
| Ford | D8HZ-4351-L |
| Ford | E1HZ-4351-C |
| Meritor | MER-17N46411X |
| Spicer | N6-4-6401 |
| Neapco OE Series | N6-4-6411X |
| Spicer | N6-4-6421X |
| Spicer | PAC6-4-6401 |
| Spicer | PAC6-4-6411 |
| Spicer | PAC6-4-6411X |
| Spicer | PAC6-4-6421X |
| Genuine Newstar | S-5411 |
| Genuine Newstar | S5411 |
| Genuine Newstar | SD-6-4-6411 |
| Spicer | SD646411 |
| Freightliner | TDA 17N4 6421X |
| Freightliner | TDA 17N4-6401 |
| Freightliner | TDA 17NYS32 100 |
| Volvo Truck | TDA17N4-6401 |
