SKU:
GTP06026

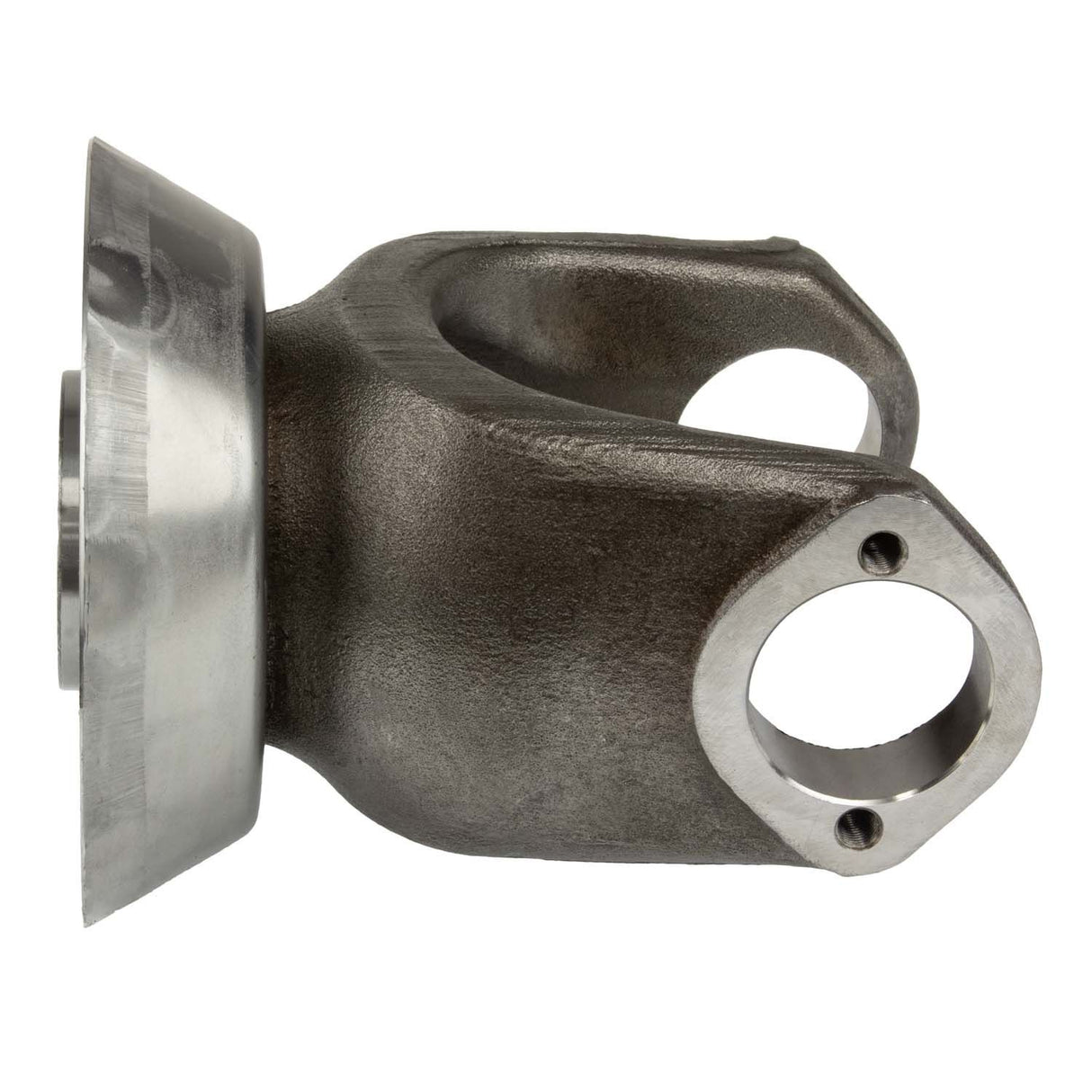

Bearing Plate Style 1710 Series End Yoke 39 Spline | 016-4-6871X, 1662152C, 1662152C91, 17N4-5501, 17N4-6871, 17N4-6871X, 3280-X-6758, 486-101-C, 6-4-5501R, 6-4-5501X, 6-4-6871R, 645501R, 646871, 646871X, A2-3280-X-6758, N6-4-6871X, S-A849, SA849
Regular price
$107.64
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 39 Spline | 016-4-6871X, 1662152C, 1662152C91, 17N4-5501, 17N4-6871, 17N4-6871X, 3280-X-6758, 486-101-C, 6-4-5501R, 6-4-5501X, 6-4-6871R, 645501R, 646871, 646871X, A2-3280-X-6758, N6-4-6871X, S-A849, SA849 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 39 Spline | 016-4-6871X, 1...
Regular price
$107.64
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| C'bore Depth | 0.09 Inch |
| Centerline To End | 6.5 |
| Centerline to End | 6.5 Inch |
| Dimensions | Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 2.750 Length Thru Hole: 2.438 Centerline To End: 6.500 CBore Depth: 0.090 Inch |
| Ground Hub Diameter | 2.75 Inch |
| Ground Hub Diameter | 2.75 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Length Thru Hole | 2.438 Inch |
| Length Thru Hole | 2.438 Inch |
| Major Diameter | 2.024 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.75 Inch |
| Outside Yoke Dimension | 6.094 Inch |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 2 Inch |
| Spline Length | 2.44 Inch |
| Spline Quantity | 39 |
| Spline Size | 2.024 - 39 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1710 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Freightliner | 016-4-6871X |
| International | 1662152C |
| International | 1662152C91 |
| Meritor | 17N4-5501 |
| Meritor | 17N4-6871 |
| Meritor | 17N4-6871X |
| Meritor | 3280-X-6758 |
| International | 486-101-C |
| World American | 6-4-5501R |
| Spicer | 6-4-5501X |
| World American | 6-4-6871R |
| World American | 645501R |
| Spicer | 646871 |
| Prima Brands | 646871X |
| Meritor | A2-3280-X-6758 |
| Neapco OE Series | N6-4-6871X |
| Genuine Newstar | S-A849 |
| Genuine Newstar | SA849 |
| Genuine Newstar | SD-6-4-6871X |
| Spicer | SD646871X |
| Freightliner | SP646871X |
