SKU:
GTP06023

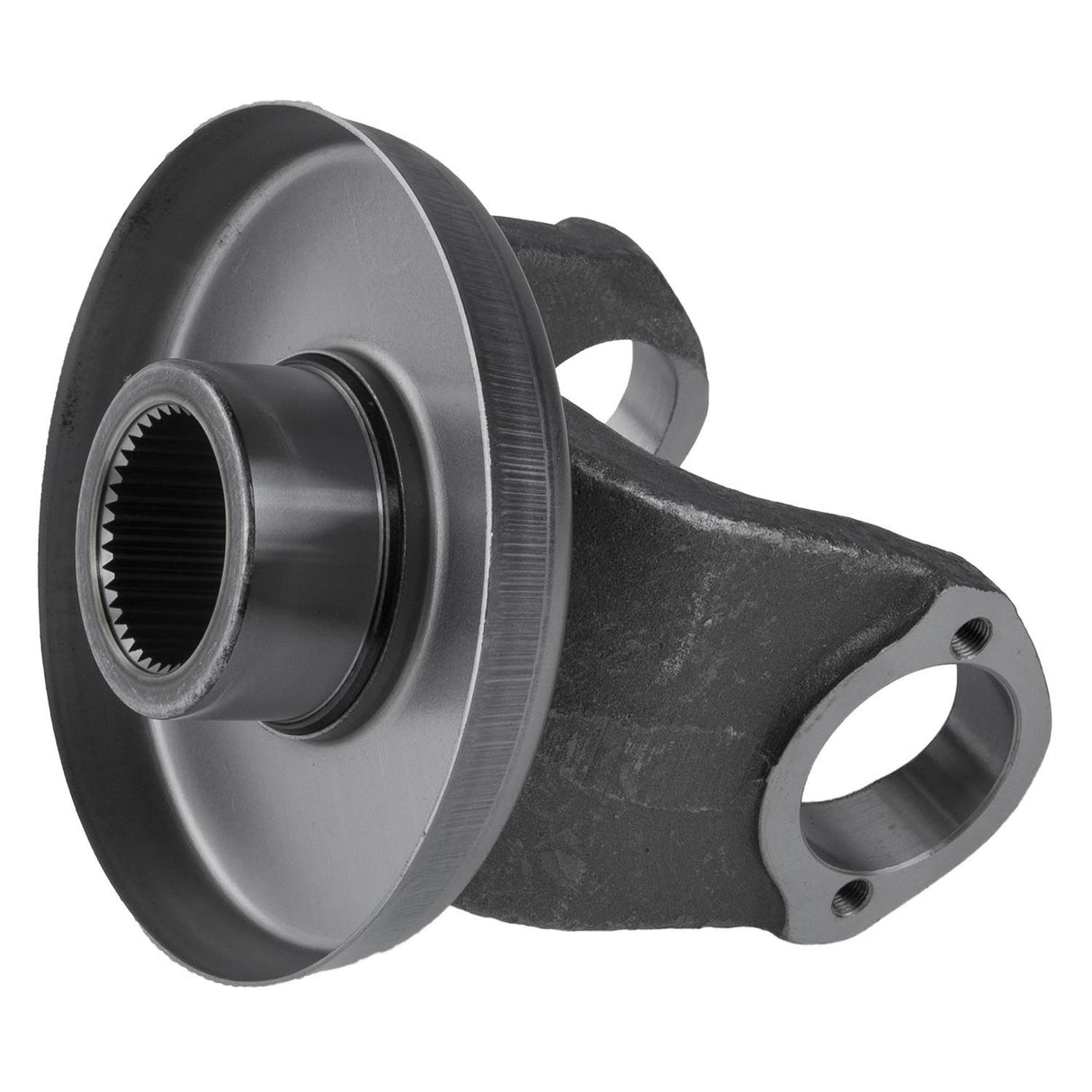

Bearing Plate Style 1710 Series End Yoke 39 Spline | 016-4-6951X, 1322699, 1662-153-C, 1662153C, 1662153C91, 17N4-6951X, 3280-T-6754, 6-4-5521, 6-4-5521R, 6-4-5531, 6-4-6951R, 6-4-6951X, 645521R, 646951X, A-3280-T-6754, A3-3280-T-6754, MER-17N46951X
Regular price
$94.44
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 39 Spline | 016-4-6951X, 1322699, 1662-153-C, 1662153C, 1662153C91, 17N4-6951X, 3280-T-6754, 6-4-5521, 6-4-5521R, 6-4-5531, 6-4-6951R, 6-4-6951X, 645521R, 646951X, A-3280-T-6754, A3-3280-T-6754, MER-17N46951X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 39 Spline | 016-4-6951X, 1...
Regular price
$94.44
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 6.09 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| C'bore Depth | 0.09 Inch |
| Centerline To End | 5.25 |
| Centerline to End | 5.25 Inch |
| Dimensions | Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 2.750 Length Thru Hole: 2.438 Centerline To End: 5.250 CBore Depth: 0.090 Inch |
| Ground Hub Diameter | 2.75 Inch |
| Ground Hub Diameter | 2.75 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Joint Angle | 34 Degrees |
| Length Thru Hole | 2.438 Inch |
| Length Thru Hole | 2.438 Inch |
| Major Diameter | 2.024 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.75 Inch |
| Outside Yoke Dimension | 6.094 Inch |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 2 Inch |
| Spline Length | 2.44 Inch |
| Spline Quantity | 39 |
| Spline Size | 2.024 - 39 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1710 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Freightliner | 016-4-6951X |
| Spicer | 1322699 |
| International | 1662-153-C |
| International | 1662153C |
| International | 1662153C91 |
| Meritor | 17N4-6951X |
| Meritor | 3280-T-6754 |
| Spicer | 6-4-5521 |
| World American | 6-4-5521R |
| Spicer | 6-4-5531 |
| World American | 6-4-6951R |
| Spicer | 6-4-6951X |
| World American | 645521R |
| Prima Brands | 646951X |
| Meritor | A-3280-T-6754 |
| Meritor | A3-3280-T-6754 |
| Meritor | MER-17N46951X |
| Neapco OE Series | N6-4-6951X |
| Automann | NEPN6-4-6951X |
| International | NS3280T6754 |
| Paccar Parts | PAC3280T6754 |
| Spicer | PAC6-4-6951X |
| Paccar Parts | PACA3280T6754 |
| Genuine Newstar | S-9029 |
| Genuine Newstar | S9029 |
| Genuine Newstar | SD-6-4-6951X |
| Spicer | SD646951X |
| Freightliner | SP646951X |
