SKU:
GTP06014

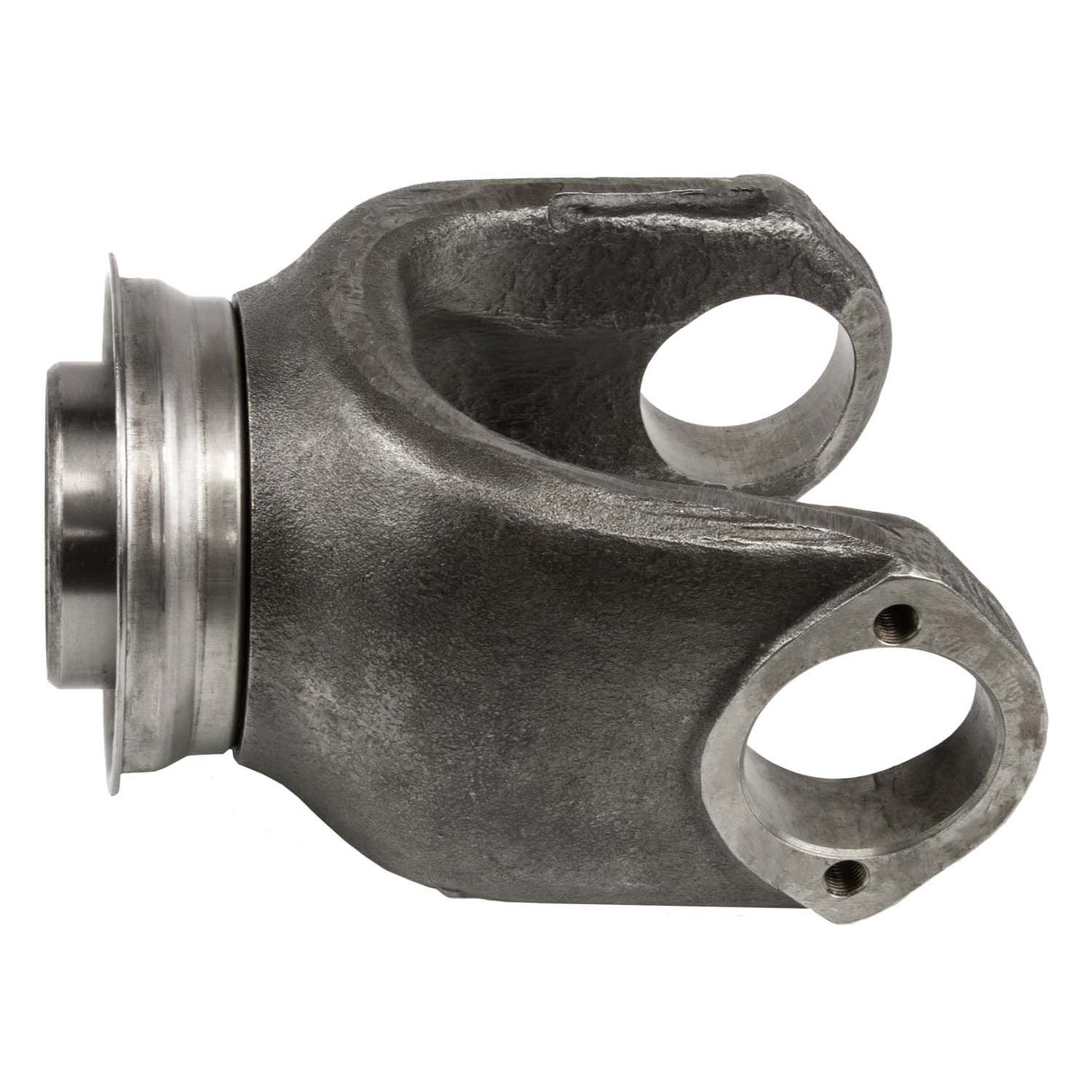

Bearing Plate Style 1710 Series End Yoke 39 Spline | 15690221, 171MU52P64, 17N4-8541X, 17NYS32-86A, 2030240C91, 2104-648541X, 6-4-7981, 6-4-8541X, S-C636, SC636, SD-6-4-8541X, SP648541X
Regular price
$140.56
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 39 Spline | 15690221, 171MU52P64, 17N4-8541X, 17NYS32-86A, 2030240C91, 2104-648541X, 6-4-7981, 6-4-8541X, S-C636, SC636, SD-6-4-8541X, SP648541X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 39 Spline | 15690221, 171M...
Regular price
$140.56
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 6.094 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.938 Inch |
| Bearing Type | BP |
| C'bore Depth | 0.25 Inch |
| C-Bore Depth | 0.25 Inch |
| Centerline to End | 6.125 Inch |
| Centerline To End | 6.125 |
| Dimensions | Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 2.625 Length Thru Hole: 2.250 Centerline To End: 6.125 CBore Depth: 0.250 Inch |
| Ground Hub Diameter | 2.625 Inch |
| Ground Hub Diameter | 2.625 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length Thru Hole | 2.25 Inch |
| Length Thru Hole | 2.25 Inch |
| Major Diameter | 2.024 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.625 Inch |
| Outside Yoke Dimension | 6.094 Inch |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 2.024 Inch |
| Spline Length | 2.25 Inch |
| Spline Quantity | 39 |
| Spline Size | 2.024 - 39 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1710 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| General Motors | 15690221 |
| Mack | 171MU52P64 |
| Meritor | 17N4-8541X |
| Meritor | 17NYS32-86A |
| International | 2030240C91 |
| Mack | 2104-648541X |
| Spicer | 6-4-7981 |
| Spicer | 6-4-8541X |
| Genuine Newstar | S-C636 |
| Genuine Newstar | SC636 |
| Genuine Newstar | SD-6-4-8541X |
| Freightliner | SP648541X |
