SKU:
GTP06017

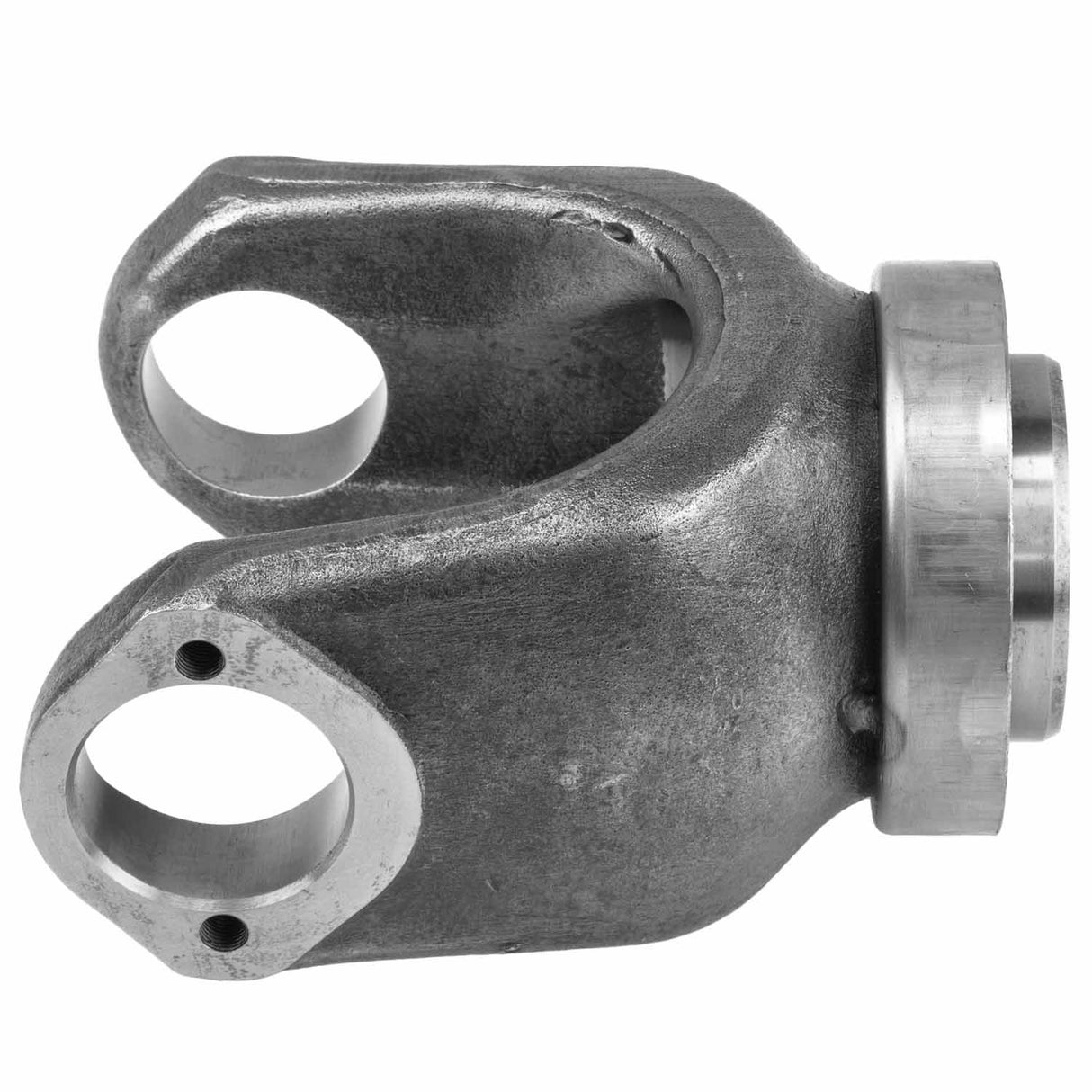

Bearing Plate Style 1710 Series End Yoke 41 Spline | 126589, 17N4-7561X, 17NYS34-19A1, 6-4-7551, 6-4-7551R, 6-4-7561R, 6-4-7561X, 647551R, N6-4-7561X, S-E654, SD-6-4-7561X, SD647561X, SE654
Regular price
$127.49
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 41 Spline | 126589, 17N4-7561X, 17NYS34-19A1, 6-4-7551, 6-4-7551R, 6-4-7561R, 6-4-7561X, 647551R, N6-4-7561X, S-E654, SD-6-4-7561X, SD647561X, SE654 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 41 Spline | 126589, 17N4-7...
Regular price
$127.49
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| Centerline To End | 6.125 |
| Centerline to End | 6.125 Inch |
| Dimensions | Spline Size: 2.143 - 41 Major Diameter: 2.143 Ground Hub Diameter: 2.938 Length Thru Hole: 2.500 Centerline To End: 6.125 Inch |
| Ground Hub Diameter | 2.938 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 39 Degrees |
| Length Thru Hole | 2.5 Inch |
| Length Thru Hole | 2.5 Inch |
| Major Diameter | 2.143 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.938 Inch |
| Outside Yoke Dimension | 6.094 Inch |
| Series | 1710 Series (Full Round) |
| Spline Quantity | 41 |
| Spline Size | 2.143 - 41 Inch |
| Style | BP |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.143 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Eaton | 126589 |
| Meritor | 17N4-7561X |
| Meritor | 17NYS34-19A1 |
| Spicer | 6-4-7551 |
| World American | 6-4-7551R |
| World American | 6-4-7561R |
| Spicer | 6-4-7561X |
| World American | 647551R |
| Neapco OE Series | N6-4-7561X |
| Genuine Newstar | S-E654 |
| Genuine Newstar | SD-6-4-7561X |
| Spicer | SD647561X |
| Genuine Newstar | SE654 |
