SKU:
GTP06019

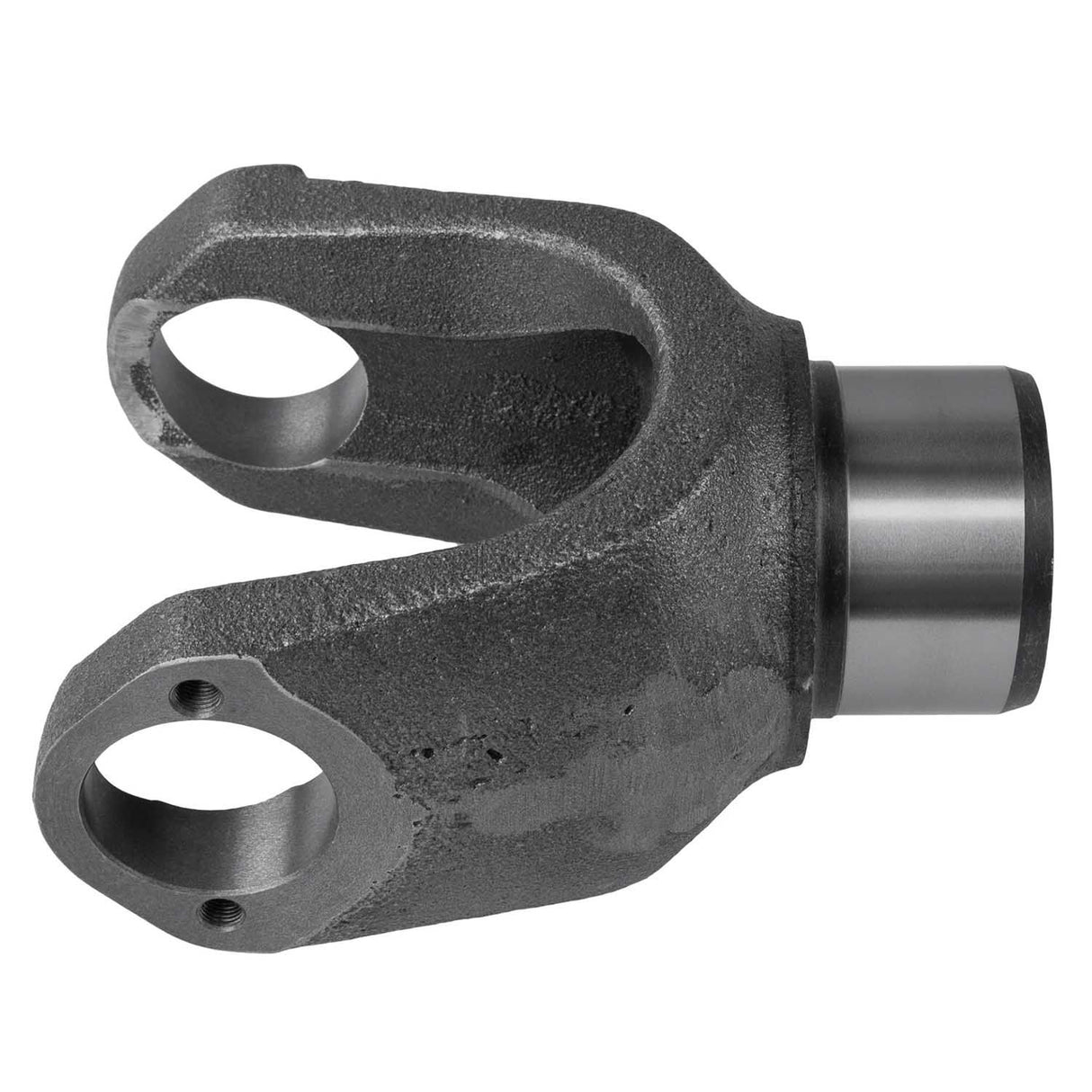

Bearing Plate Style 1710 Series End Yoke 41 Spline | 128881, 1616-019-C, 1616020C91, 17N4-7541, 2060489, 6-4-7541, 6-4-7541XR, 6-4-7651X, 6-4-9191X, N6-4-7541, NEPN6-4-7541, S-B619, SB619, SD-6-4-7541, SD647541
Regular price
$103.16
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 41 Spline | 128881, 1616-019-C, 1616020C91, 17N4-7541, 2060489, 6-4-7541, 6-4-7541XR, 6-4-7651X, 6-4-9191X, N6-4-7541, NEPN6-4-7541, S-B619, SB619, SD-6-4-7541, SD647541 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 41 Spline | 128881, 1616-0...
Regular price
$103.16
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 6.09 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| C'bore Depth | 0.38 Inch |
| Centerline To End | 6.625 |
| Centerline to End | 6.625 Inch |
| Dimensions | Spline Size: 2.143 Major Diameter: 2.143 Ground Hub Diameter: 2.938 Length Thru Hole: 3.000 Centerline To End: 6.625 CBore Depth: 0.380 Inch |
| Ground Hub Diameter | 2.938 Inch |
| Ground Hub Diameter | 2.94 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Joint Angle | 52 Degrees |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 2.143 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.938 Inch |
| Outside Yoke Dimension | 6.094 Inch |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 2.143 Inch |
| Spline Length | 3 Inch |
| Spline Quantity | 41 |
| Spline Size | 2.143 Inch |
| Spline Size | 2.143 - 41 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1710 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Eaton | 128881 |
| International | 1616-019-C |
| International | 1616020C91 |
| Meritor | 17N4-7541 |
| Spicer | 2060489 |
| Spicer | 6-4-7541 |
| Spicer | 6-4-7541XR |
| Spicer | 6-4-7651X |
| Spicer | 6-4-9191X |
| Neapco OE Series | N6-4-7541 |
| Automann | NEPN6-4-7541 |
| Genuine Newstar | S-B619 |
| Genuine Newstar | SB619 |
| Genuine Newstar | SD-6-4-7541 |
| Spicer | SD647541 |
