SKU:
GTP06034

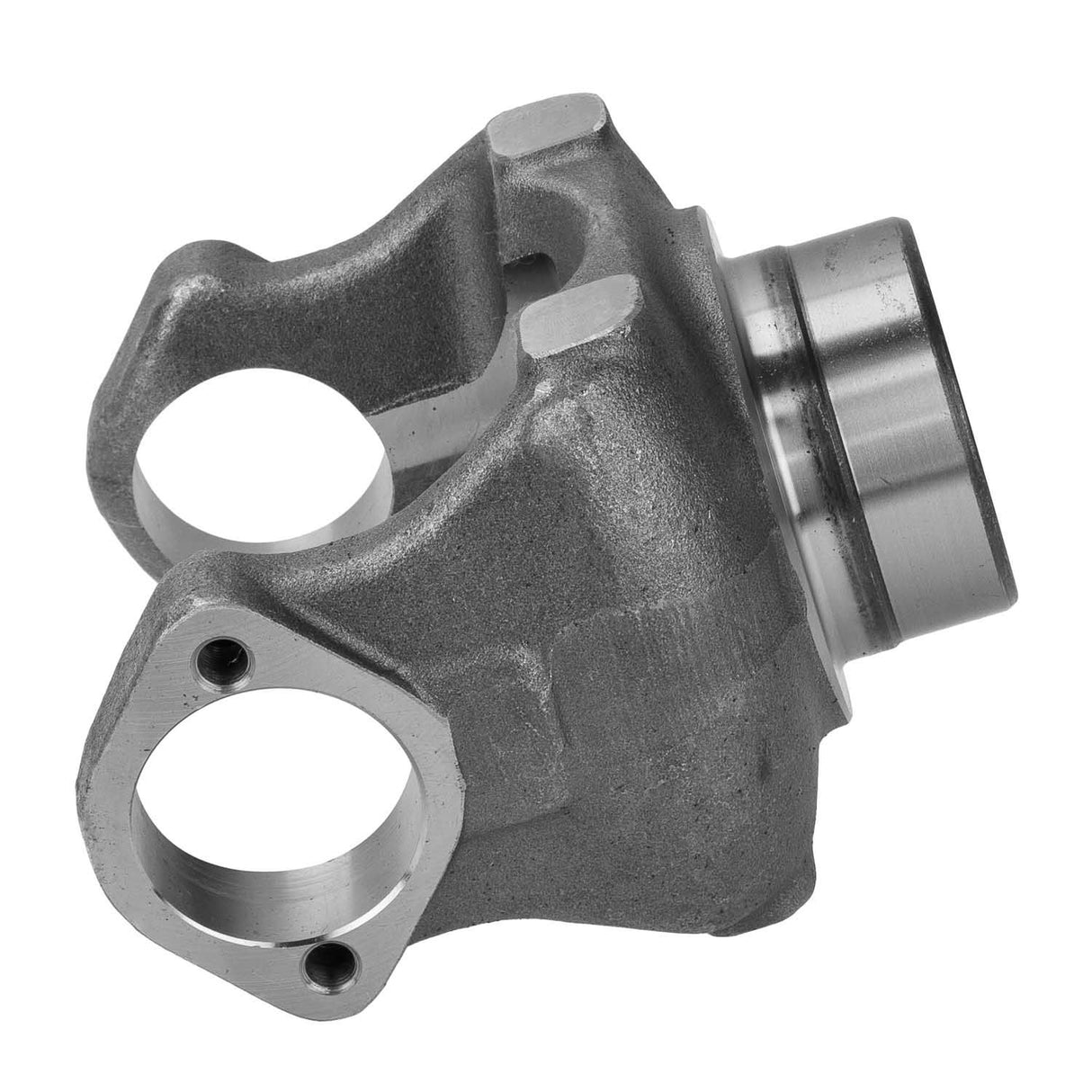

Bearing Plate Style 1710 Series End Yoke 44 Spline | 111527, 1662-086-C, 1662086C91, 17N4-6031, 17N4-6041X, 17NYS36-40, 17NYS36-40A, 17NYS36-60A, 213169, 6-4-6031, 6-4-6041-1X, 6-4-6041R, 6-4-6041X, 6-4-6041XG, 6-4-6591, 6-4-8461, 6-5-5071X, 646041
Regular price
$238.44
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 44 Spline | 111527, 1662-086-C, 1662086C91, 17N4-6031, 17N4-6041X, 17NYS36-40, 17NYS36-40A, 17NYS36-60A, 213169, 6-4-6031, 6-4-6041-1X, 6-4-6041R, 6-4-6041X, 6-4-6041XG, 6-4-6591, 6-4-8461, 6-5-5071X, 646041 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 44 Spline | 111527, 1662-0...
Regular price
$238.44
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 6.09 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| Centerline To End | 5.188 |
| Centerline to End | 5.19 Inch |
| Dimensions | Spline Size: 2.274 - 44 Major Diameter: 2.274 Ground Hub Diameter: 2.938 Length Thru Hole: 2.500 Centerline To End: 5.188 Inch |
| Ground Hub Diameter | 2.938 Inch |
| Ground Hub Diameter | 2.94 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 34 Degrees |
| Joint Angle | 27.5 Degrees |
| Length Thru Hole | 2.5 Inch |
| Length Thru Hole | 2.495 Inch |
| Major Diameter | 2.274 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.9385 Inch |
| Outside Yoke Dimension | 6.092 Inch |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 2.266 Inch |
| Spline Length | 2.5 Inch |
| Spline Quantity | 44 |
| Spline Size | 2.274 - 44 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1710 |
| Yoke Bearing Dimension | 1.9383 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Eaton | 111527 |
| International | 1662-086-C |
| International | 1662086C91 |
| Meritor | 17N4-6031 |
| Meritor | 17N4-6041X |
| Meritor | 17NYS36-40 |
| Meritor | 17NYS36-40A |
| Meritor | 17NYS36-60A |
| Eaton | 213169 |
| Spicer | 6-4-6031 |
| Spicer | 6-4-6041-1X |
| World American | 6-4-6041R |
| Spicer | 6-4-6041X |
| Spicer | 6-4-6041XG |
| Spicer | 6-4-6591 |
| Spicer | 6-4-8461 |
| Spicer | 6-5-5071X |
| Spicer | 646041 |
| World American | |
| OE Aftermarket | N6-4-6041X |
| Automann | NEPN6-4-6041X |
| Spicer | PAC6-4-6041 |
| Spicer | PAC6-4-6041X |
| Genuine Newstar | S-7017 |
| Genuine Newstar | S7017 |
| Genuine Newstar | SD-6-4-6041X |
| Spicer | SD646041X |
