SKU:
GTP06035

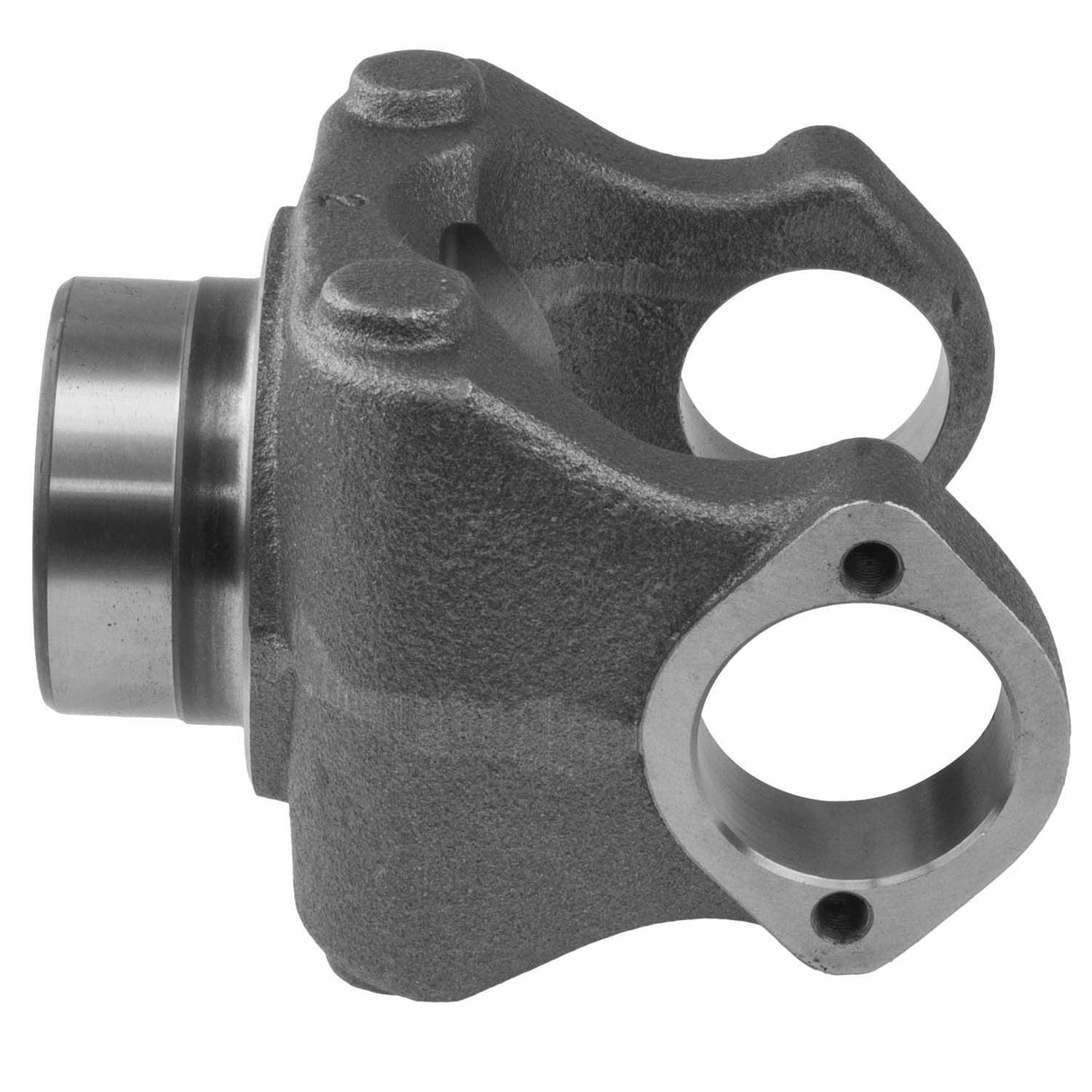

Bearing Plate Style 1710 Series End Yoke 44 Spline | 17N46031, 17N8461, 6-4-6031, 6-4-6031X, 6-4-6041R, 6-4-6041XR, 6-4-8461, S-47239, S47239
Regular price
$113.10
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 44 Spline | 17N46031, 17N8461, 6-4-6031, 6-4-6031X, 6-4-6041R, 6-4-6041XR, 6-4-8461, S-47239, S47239 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 44 Spline | 17N46031, 17N8...
Regular price
$113.10
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Centerline to End | 5.19 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 27.5 Degrees |
| Length Thru Hole | 2.495 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.9385 Inch |
| Outside Yoke Dimension | 6.092 Inch |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 2.274 Inch |
| Spline Quantity | 44 |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.274 Inch |
| Yoke Bearing Dimension | 1.9383 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 17N46031 |
| Meritor | 17N8461 |
| Spicer | 6-4-6031 |
| Spicer | 6-4-6031X |
| World American | 6-4-6041R |
| World American | 6-4-6041XR |
| Spicer | 6-4-8461 |
| Genuine Newstar | S-47239 |
| Genuine Newstar | S47239 |
