SKU:
GTP06043
Bearing Plate Style 1710 Series End Yoke 46 Spline | 016-4-5461X, 1300785, 1657354C91, 17N4-5461, 17N4-5461-1X, 17N4-5461X, 2005581, 3280-U-6729, 476822C, 6-4-5451, 6-4-5461, 6-4-5461-1XR, 6-4-5461XR, 645461X, A-3280-U-6729, D8HZ-4351-F
Regular price
$92.74
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 46 Spline | 016-4-5461X, 1300785, 1657354C91, 17N4-5461, 17N4-5461-1X, 17N4-5461X, 2005581, 3280-U-6729, 476822C, 6-4-5451, 6-4-5461, 6-4-5461-1XR, 6-4-5461XR, 645461X, A-3280-U-6729, D8HZ-4351-F is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 46 Spline | 016-4-5461X, 1...
Regular price
$92.74
Unit price
/
Unavailable

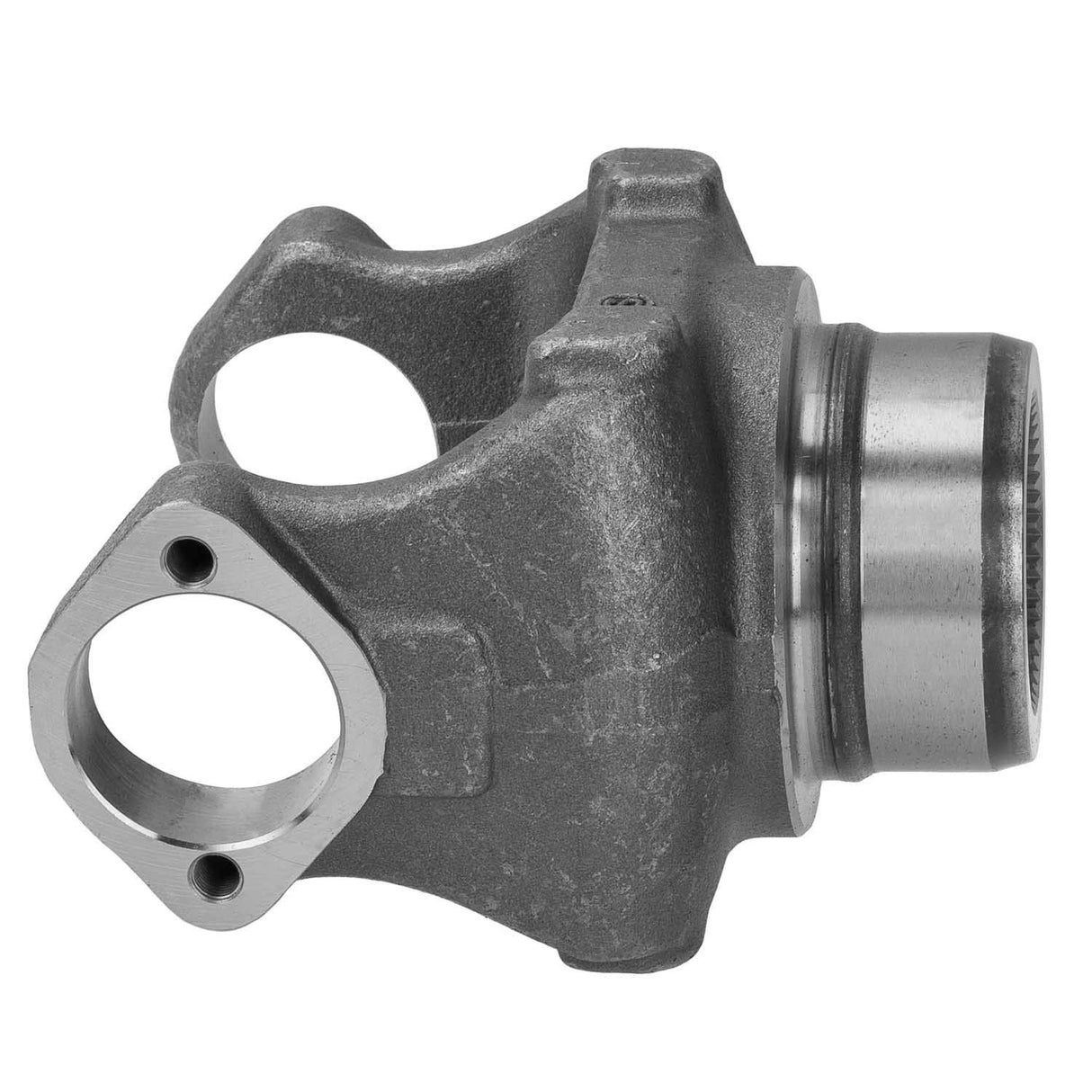

This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| C/l To End Hub S | 5.688 |
| Dimensions | Spline Size: 2.374 - 46 Major Diameter: 2.375 Ground Hub Diameter: 3.250 Length Thru Hole: 2.625 Centerline To End: 5.688 Inch |
| Hub Diameter R | 3.25 Inch |
| Includes Slinger/plug | Y |
| Includes Slinger/Plug | Yes |
| Involute Spline | N |
| Joint Angle | 22 Degrees |
| Length Thru Hole | 2.625 Inch |
| Length Thru Hole | 2.625 Inch |
| Major Diameter | 2.374 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.25 Inch |
| Outside Yoke Dimension E | 6.094 Inch |
| Series | 1710 Series (Full Round) |
| Series | 1710 |
| Spline Count | 46 |
| Spline Quantity | 46 |
| Spline Size | 2.374 - 46 Inch |
| Spline Size | 2.375 - 46 Inch |
| Type | Splined Hole |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.375 Inch |
| Yoke Bearing Dimension D | 1.938 Inch |
| Yoke Style | BP |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Freightliner | 016-4-5461X |
| Spicer | 1300785 |
| International | 1657354C91 |
| Meritor | 17N4-5461 |
| Meritor | 17N4-5461-1X |
| OE Aftermarket | 17N4-5461X |
| Mei | 2005581 |
| Meritor | 3280-U-6729 |
| International | 476822C |
| Spicer | 6-4-5451 |
| Spicer | 6-4-5461 |
| World American | 6-4-5461-1XR |
| World American | 6-4-5461XR |
| World American | |
| Spicer | 645461X |
| Meritor | A-3280-U-6729 |
| Ford | D8HZ-4351-F |
| Neapco OE Series | N6-4-5461 |
| Neapco OE Series | N6-4-5461X |
| Paccar Parts | PAC3280U6729 |
| Spicer | PAC6-4-5461X |
| Paccar Parts | PACA3280U6729 |
| Genuine Newstar | S-7013 |
| Genuine Newstar | S7013 |
| Genuine Newstar | SD-6-4-5461 |
| Spicer | SD645461 |
