SKU:
GTP11850

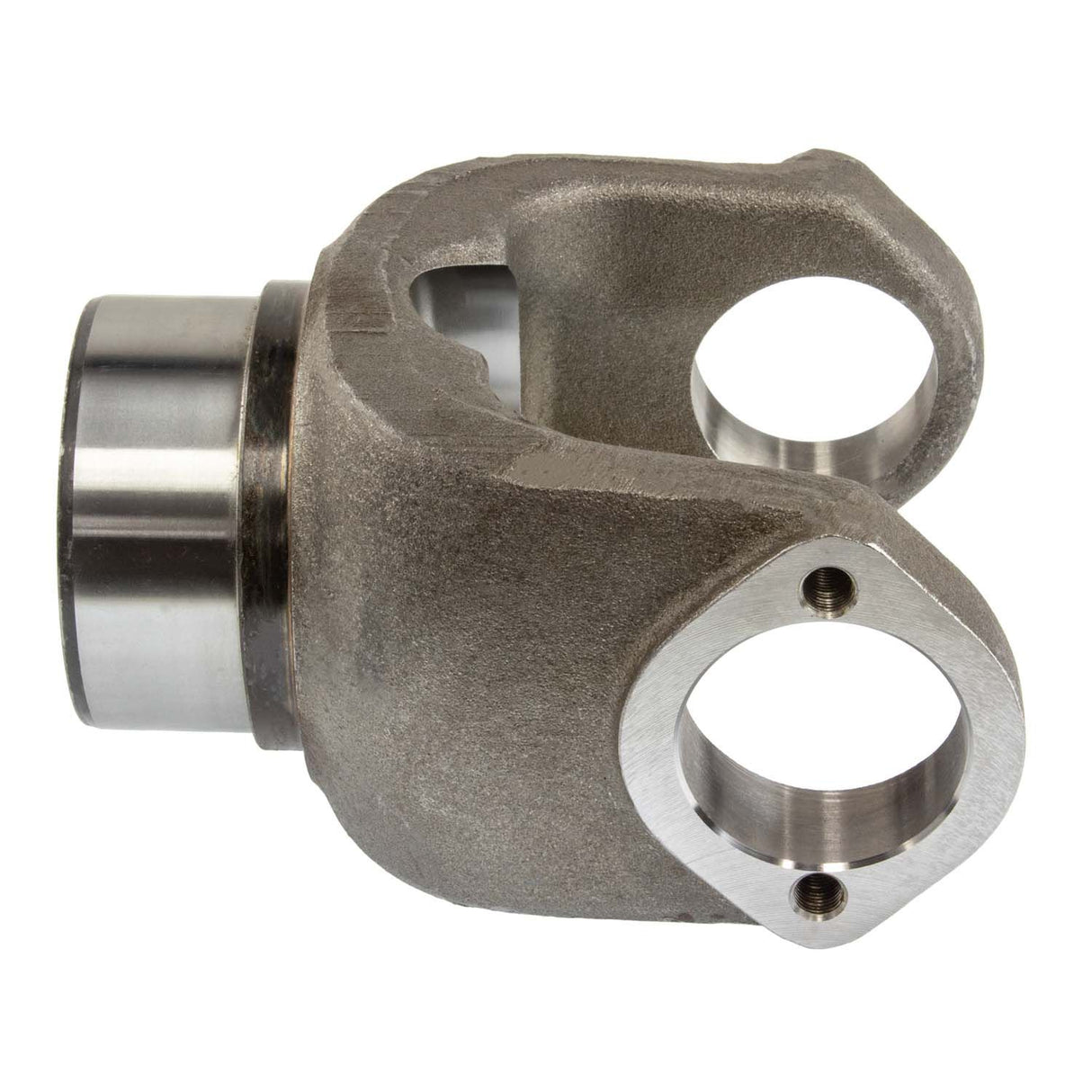

Bearing Plate Style 1710 Series End Yoke 46 Spline | 17N4-7161, 17N47161, 17NYS38-32, 6-4-7161, 6-4-7181XR, A-3260-U-359, S-C487, SC487, SD-6-4-7161, SD647161, TDA17N47161
Regular price
$102.96
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1710 Series End Yoke 46 Spline | 17N4-7161, 17N47161, 17NYS38-32, 6-4-7161, 6-4-7181XR, A-3260-U-359, S-C487, SC487, SD-6-4-7161, SD647161, TDA17N47161 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1710 Series End Yoke 46 Spline | 17N4-7161, 17N...
Regular price
$102.96
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 6.09 Inch |
|---|---|
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| C'bore Depth | 0.14 Inch |
| Centerline To End | 5.391 |
| Centerline to End | 5.38 Inch |
| Dimensions | Spline Size: 2.390 - 46 Major Diameter: 2.390 Ground Hub Diameter: 3.250 Length Thru Hole: 2.328 Centerline To End: 5.391 CBore Depth: 0.140 Inch |
| Ground Hub Diameter | 3.25 Inch |
| Ground Hub Diameter | 3.25 Inch |
| Involute Spline | No |
| Joint Angle | 34 DEG |
| Length Thru Hole | 2.328 Inch |
| Major Diameter | 2.39 Inch |
| Material | Steel |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 2.38 Inch |
| Spline Length | 2.33 Inch |
| Spline Quantity | 46 |
| Spline Size | 2.390 - 46 Inch |
| Style | BP |
| Universal Joint Series | 1710 |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 17N4-7161 |
| Meritor | 17N47161 |
| Meritor | 17NYS38-32 |
| Spicer | 6-4-7161 |
| World American | 6-4-7181XR |
| Meritor | A-3260-U-359 |
| Genuine Newstar | S-C487 |
| Genuine Newstar | SC487 |
| Genuine Newstar | SD-6-4-7161 |
| Spicer | SD647161 |
| Freightliner | TDA17N47161 |
