SKU:
GTP06092

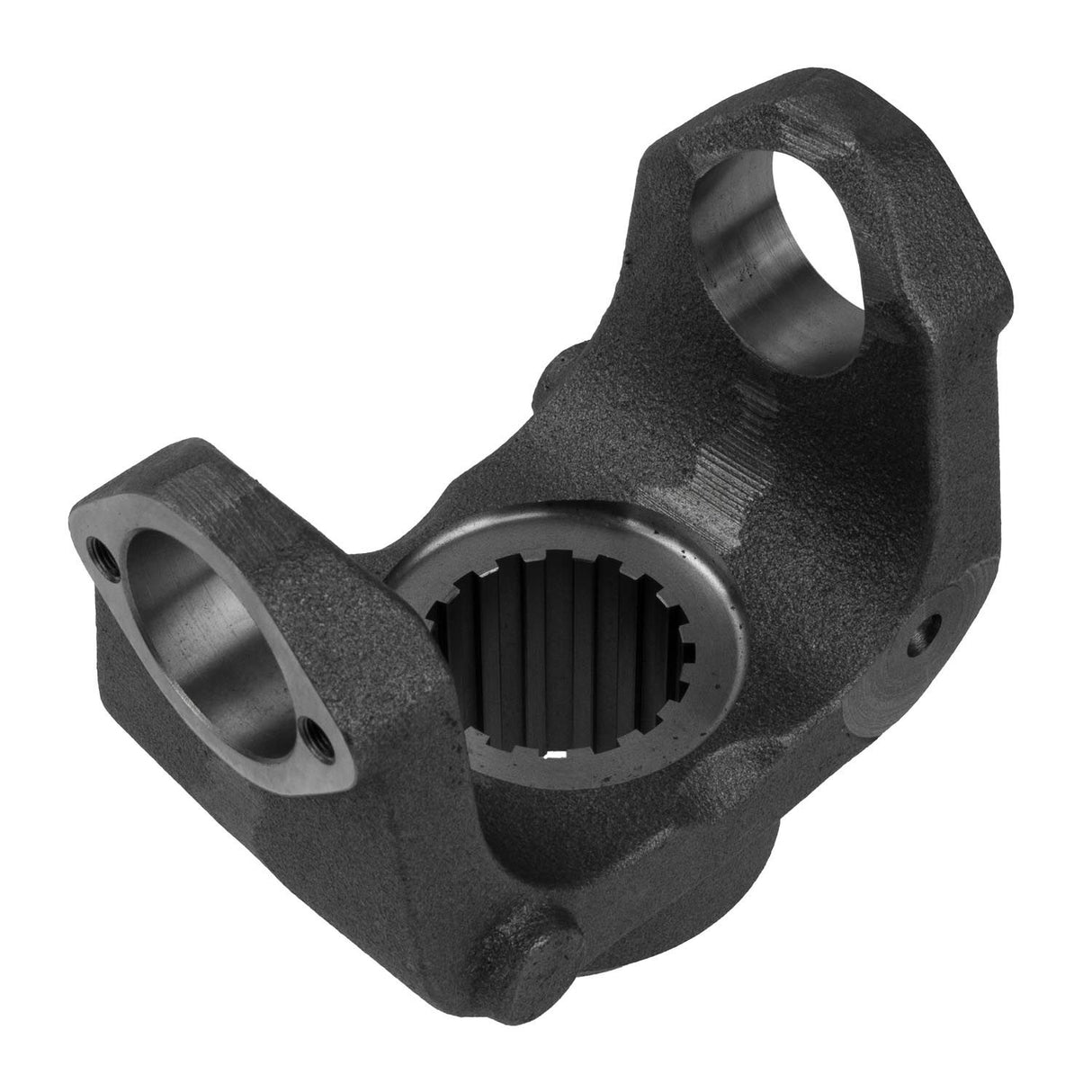

Bearing Plate Style 1760 Series End Yoke 16 Spline | 176N4-161, 176N4161, 2104-634161, 2104634161, 578-384-C, 6.3-4-161, 634161, N6.3-4-161, PAC6.3-4-161, S-9178, S-9961, S9178, S9961, SD-6.3-4-161, SP6.34161, TDA 176N4 161
Regular price
$101.77
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1760 Series End Yoke 16 Spline | 176N4-161, 176N4161, 2104-634161, 2104634161, 578-384-C, 6.3-4-161, 634161, N6.3-4-161, PAC6.3-4-161, S-9178, S-9961, S9178, S9961, SD-6.3-4-161, SP6.34161, TDA 176N4 161 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1760 Series End Yoke 16 Spline | 176N4-161, 176...
Regular price
$101.77
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | No |
|---|---|
| Bearing Type | BP |
| Centerline To End | 5.5 |
| Centerline to End | 5.5 Inch |
| Dimensions | Spline Size: 2.350 - 16 Major Diameter: 2.350 Ground Hub Diameter: 2.875 Length Thru Hole: 2.750 Centerline To End: 5.500 Inch |
| Ground Hub Diameter | 2.875 Inch |
| Includes Slinger/Plug | No |
| Involute Spline | No |
| Joint Angle | 30 Degrees |
| Length Thru Hole | 2.75 Inch |
| Length Thru Hole | 2.75 Inch |
| Major Diameter | 2.35 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.875 Inch |
| Outside Yoke Dimension | 7 Inch |
| Series | 1760 Series (Full Round) |
| Spline Quantity | 16 |
| Spline Size | 2.350 - 16 Inch |
| Style | BP |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 176N4-161 |
| Meritor | 176N4161 |
| Mack | 2104-634161 |
| Automann | 2104634161 |
| International | 578-384-C |
| Spicer | 6.3-4-161 |
| Prima Brands | 634161 |
| Neapco OE Series | N6.3-4-161 |
| Spicer | PAC6.3-4-161 |
| Genuine Newstar | S-9178 |
| Genuine Newstar | S-9961 |
| Genuine Newstar | S9178 |
| Genuine Newstar | S9961 |
| Genuine Newstar | SD-6.3-4-161 |
| Freightliner | SP6.34161 |
| Freightliner | TDA 176N4 161 |
