Bearing Plate Style 1760 Series End Yoke 39 Spline | 016.3-4-5411X, 1657-349-C, 1657349C91, 176MU51-P20, 176MU51P20, 176N4-541-1X, 176TYS32-3A, 6.3-4-1341-1X, 6.3-4-531-1, 6.3-4-541-1, 6345411X, 8071376, E8HZ4351A, N6.3-4-541-1X, PAC6.3-4-541-1X, S-A126
Regular price
$113.67
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1760 Series End Yoke 39 Spline | 016.3-4-5411X, 1657-349-C, 1657349C91, 176MU51-P20, 176MU51P20, 176N4-541-1X, 176TYS32-3A, 6.3-4-1341-1X, 6.3-4-531-1, 6.3-4-541-1, 6345411X, 8071376, E8HZ4351A, N6.3-4-541-1X, PAC6.3-4-541-1X, S-A126 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1760 Series End Yoke 39 Spline | 016.3-4-5411X,...
Regular price
$113.67
Unit price
/
Unavailable

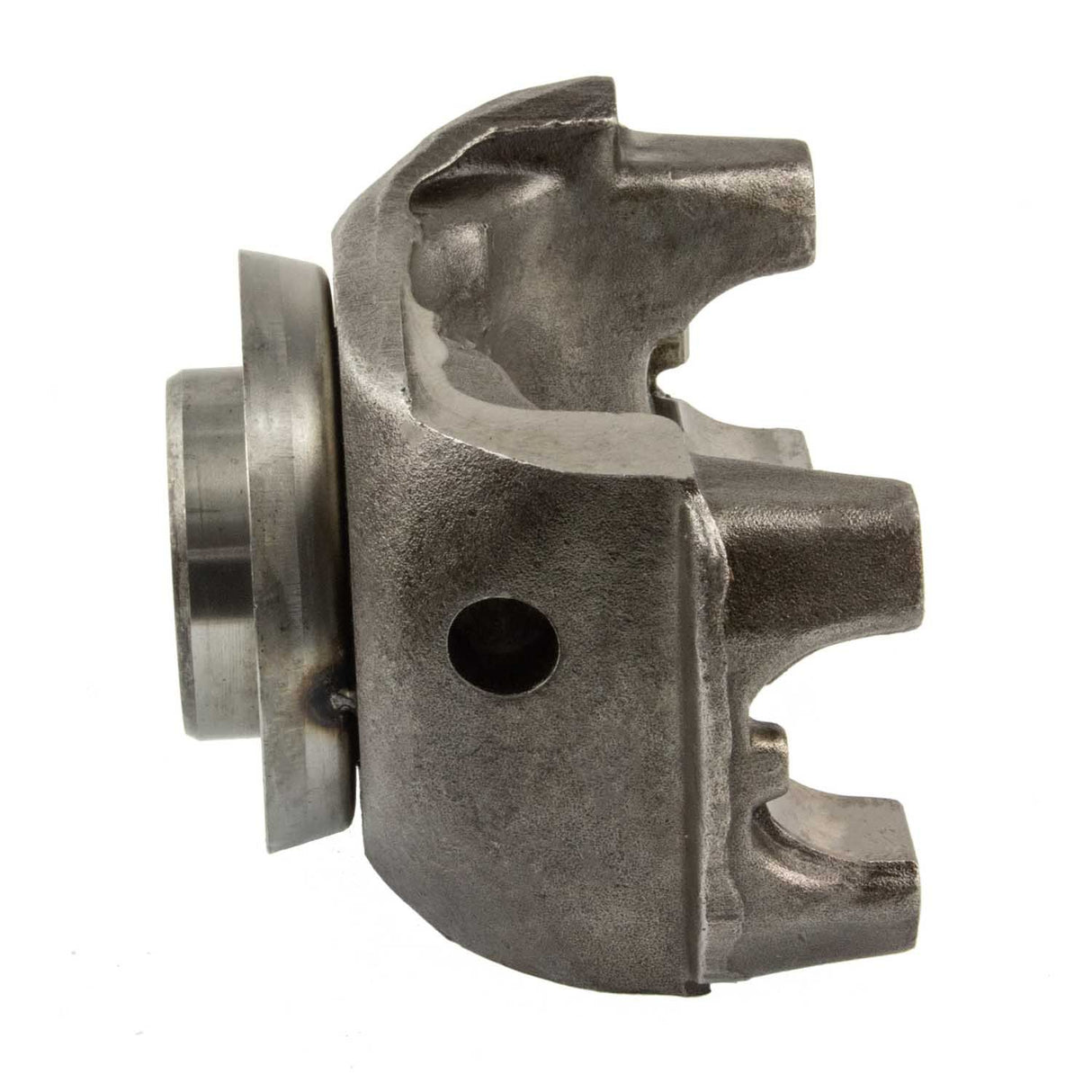

This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.125 Inch |
| C-Bore Diameter | 2.06 Inch |
| Centerline to End | 5.188 Inch |
| Centerline To End | 5.188 |
| Dimensions | Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 3.000 Length Thru Hole: 2.312 Centerline To End: 5.188 CBore Depth: 0.125 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 30 Degrees |
| Length Thru Hole | 2.312 Inch |
| Length Thru Hole | 2.312 Inch |
| Major Diameter | 2.024 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Series | 1760 Series (Half Round) |
| Spline Diameter | 2.024 Inch |
| Spline Quantity | 39 |
| Spline Size | 2.024 - 39 Inch |
| Style | HR |
| Type | Splined Hole |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Freightliner | 016.3-4-5411X |
| International | 1657-349-C |
| International | 1657349C91 |
| Mack | 176MU51-P20 |
| Mack | 176MU51P20 |
| Meritor | 176N4-541-1X |
| Meritor | 176TYS32-3A |
| Spicer | 6.3-4-1341-1X |
| Spicer | 6.3-4-531-1 |
| Spicer | 6.3-4-541-1 |
| Prima Brands | 6345411X |
| Volvo Truck | 8071376 |
| Ford | E8HZ4351A |
| Neapco OE Series | N6.3-4-541-1X |
| Spicer | PAC6.3-4-541-1X |
| Genuine Newstar | S-A126 |
| Genuine Newstar | S-A377 |
| Genuine Newstar | SA126 |
| Genuine Newstar | SA377 |
| Genuine Newstar | SD-6.3-4-541-1X |
| Freightliner | TDA 176N4 541 1X |
