SKU:
GTP11720

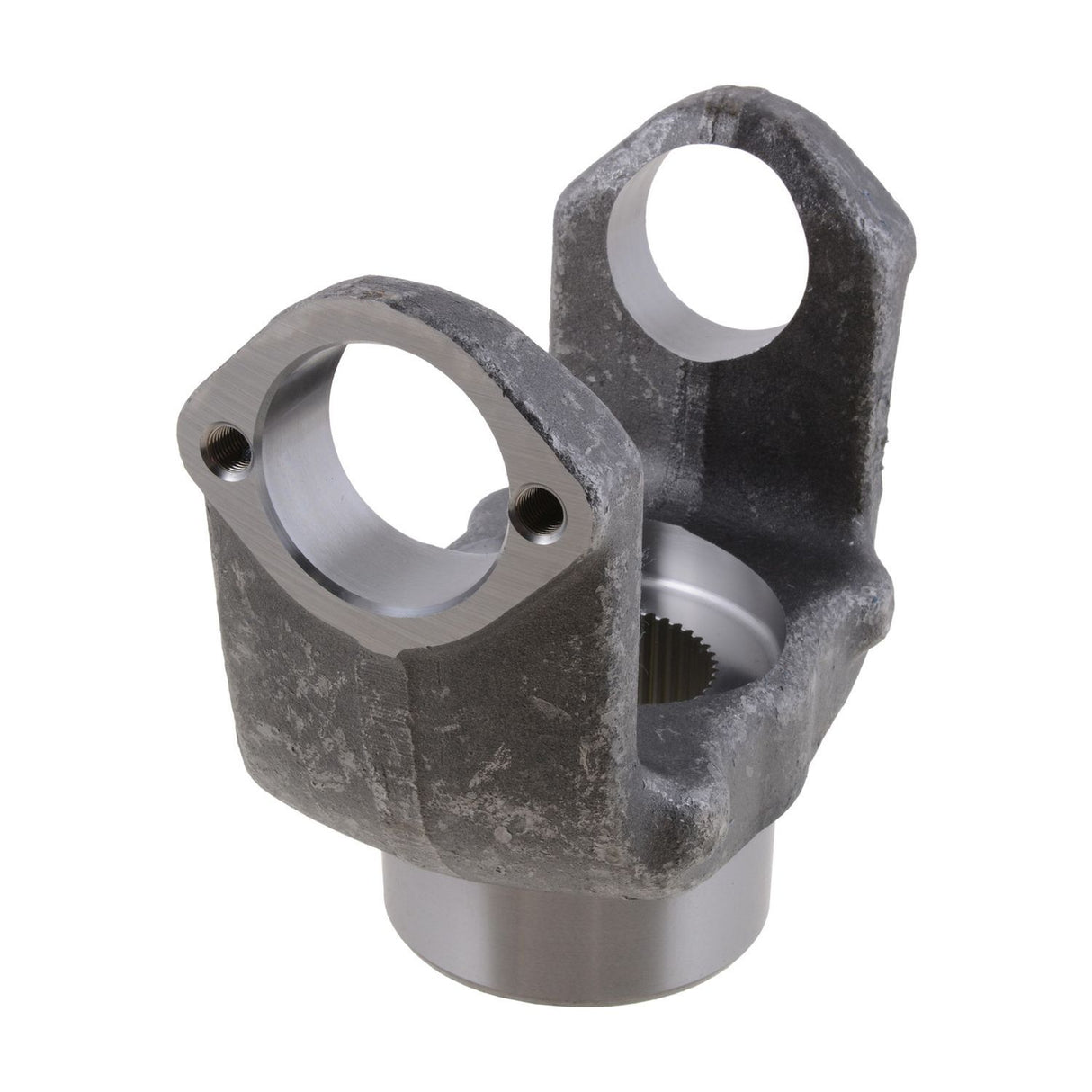

Bearing Plate Style 1760 Series End Yoke 46 Spline | 176N4-391, 6.3-4-1391X, 634-391, 634391, N6.3-4-391, S-10072, S-11345, S10072, S11345, SD-6.3-4-391
Regular price
$122.88
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1760 Series End Yoke 46 Spline | 176N4-391, 6.3-4-1391X, 634-391, 634391, N6.3-4-391, S-10072, S-11345, S10072, S11345, SD-6.3-4-391 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1760 Series End Yoke 46 Spline | 176N4-391, 6.3...
Regular price
$122.88
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| Centerline To End | 5.375 |
| Centerline to End | 5.375 Inch |
| Dimensions | Spline Size: 2.374 - 46 Major Diameter: 2.374 Ground Hub Diameter: 3.500 Length Thru Hole: 2.406 Centerline To End: 5.375 Inch |
| Ground Hub Diameter | 3.5 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Joint Angle | 30 Degrees |
| Length Thru Hole | 2.406 Inch |
| Length Thru Hole | 2.406 Inch |
| Major Diameter | 2.374 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.5 Inch |
| Outside Yoke Dimension | 7 Inch |
| Series | 1760 Series (Full Round) |
| Spline Quantity | 46 |
| Spline Size | 2.374 - 46 Inch |
| Style | BP |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.374 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 176N4-391 |
| Spicer | 6.3-4-1391X |
| Spicer | 634-391 |
| Prima Brands | 634391 |
| Neapco OE Series | N6.3-4-391 |
| Genuine Newstar | S-10072 |
| Genuine Newstar | S-11345 |
| Genuine Newstar | S10072 |
| Genuine Newstar | S11345 |
| Genuine Newstar | SD-6.3-4-391 |
