SKU:
GTP06070

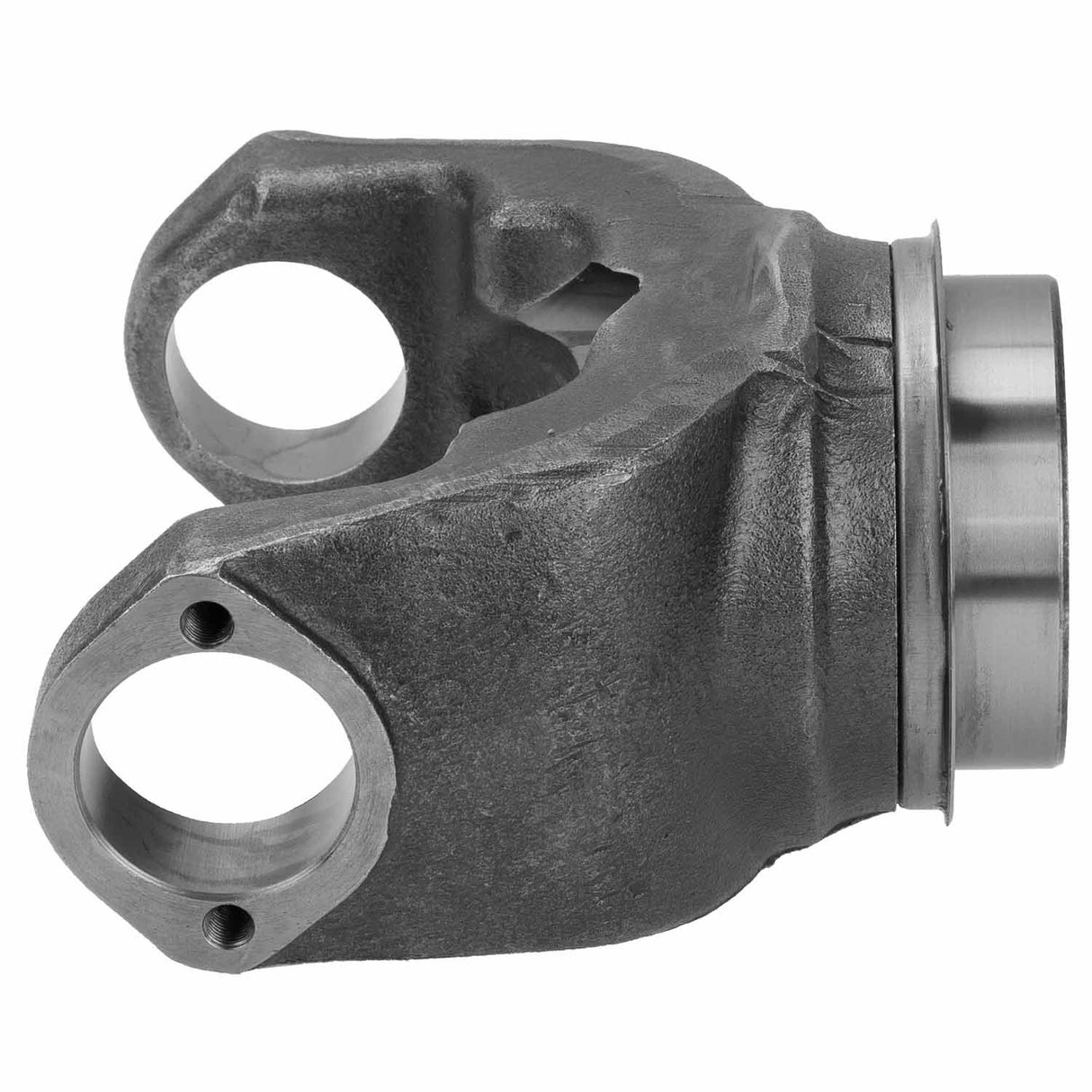

Bearing Plate Style 1810 Series End Yoke 10 Spline | 016.5-4-3561, 181MU52P32, 18N4-3261X, 18N4-3561X, 18N43561X, 2104-6543561X, 25154187, 30011-0137, 3260-T-1372, 597-765-C, 597765C, 597765C1, 597782C1, 6.5-4-3491, 6.5-4-3491R, 6.5-4-3561, 6.5-4-3561R
Regular price
$127.58
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1810 Series End Yoke 10 Spline | 016.5-4-3561, 181MU52P32, 18N4-3261X, 18N4-3561X, 18N43561X, 2104-6543561X, 25154187, 30011-0137, 3260-T-1372, 597-765-C, 597765C, 597765C1, 597782C1, 6.5-4-3491, 6.5-4-3491R, 6.5-4-3561, 6.5-4-3561R is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1810 Series End Yoke 10 Spline | 016.5-4-3561, ...
Regular price
$127.58
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 7.55 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| Centerline To End | 6.062 |
| Centerline to End | 6.062 Inch |
| Dimensions | Spline Size: 2.750 - 10 Major Diameter: 2.750 Ground Hub Diameter: 3.750 Length Thru Hole: 3.000 Centerline To End: 6.062 Inch |
| Ground Hub Diameter | 3.75 Inch |
| Ground Hub Diameter | 3.75 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Joint Angle | 32 Degrees |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 2.75 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.75 Inch |
| Outside Yoke Dimension | 7.643 Inch |
| Series | 1810 Series (Full Round) |
| Spline Diameter | 2.75 Inch |
| Spline Length | 3 Inch |
| Spline Quantity | 10 |
| Spline Size | 2.750 - 10 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1810 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Freightliner | 016.5-4-3561 |
| Mack | 181MU52P32 |
| OE Aftermarket | 18N4-3261X |
| Meritor | 18N4-3561X |
| Meritor | 18N43561X |
| Mack | 2104-6543561X |
| Mack | 25154187 |
| Volvo Truck | 30011-0137 |
| Meritor | 3260-T-1372 |
| International | 597-765-C |
| International | 597765C |
| International | 597765C1 |
| International | 597782C1 |
| Spicer | 6.5-4-3491 |
| World American | 6.5-4-3491R |
| Spicer | 6.5-4-3561 |
| World American | 6.5-4-3561R |
| Spicer | 6.5-4-3561X |
| World American | 6543491R |
| Spicer | 65435611X |
| World American | 65435611XR |
| Meritor | A-3260-S-1371 |
| Fuller- Transmissions | A-5073 |
| Freightliner | FUL A5073 |
| Neapco OE Series | N6.5-4-3561X |
| Spicer | PAC6.5-4-3561X |
| Genuine Newstar | S-9034 |
| Genuine Newstar | S9034 |
| Genuine Newstar | SD-6.5-4-3561X |
