SKU:
GTP11717

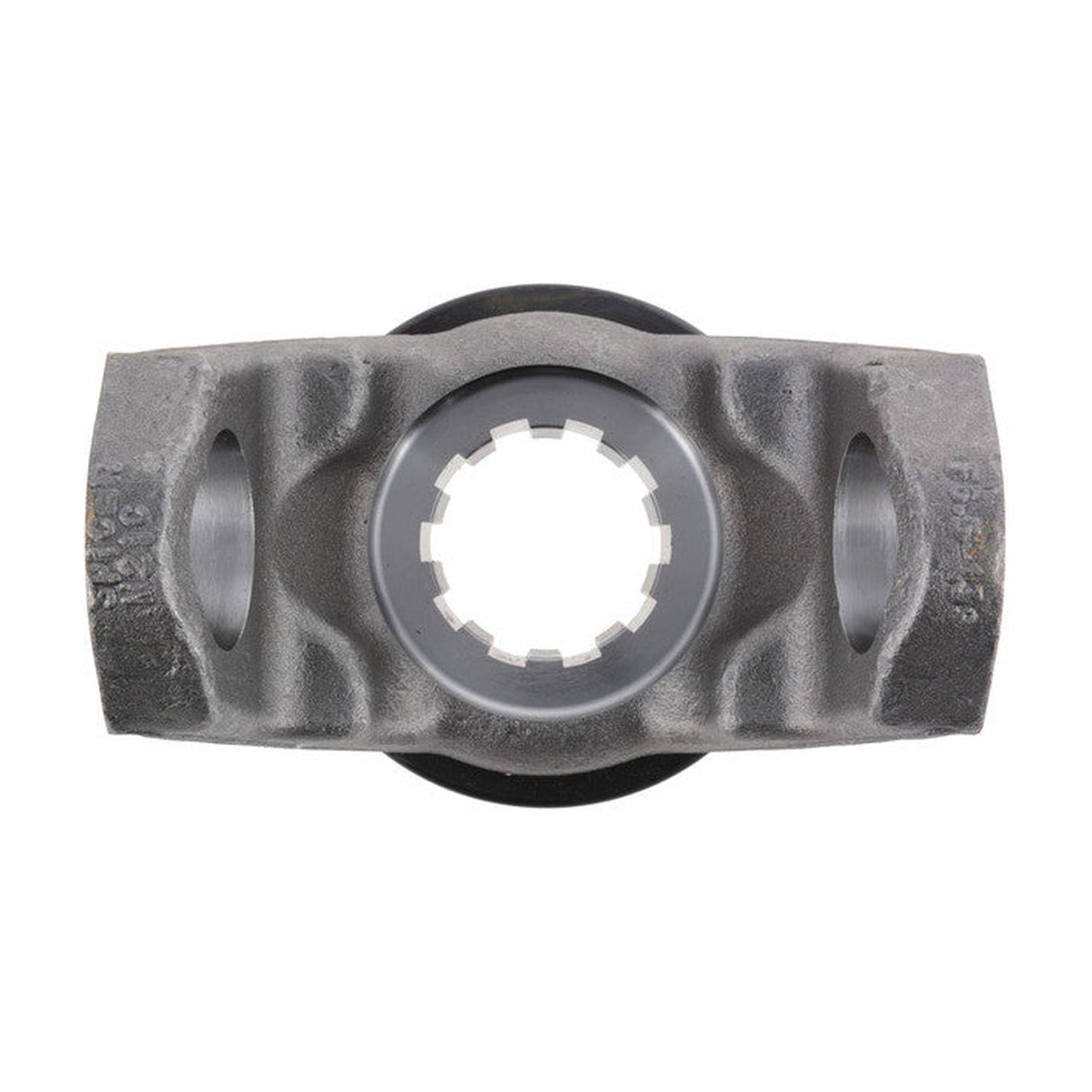

Bearing Plate Style 1810 Series End Yoke 10 Spline | 1614-574-C, 18N4-2101, 18NYS40-5, 6.5-4-2101, 6.5-4-4291X, S-B926, SB926, SD-6.5-4-2101
Regular price
$124.42
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1810 Series End Yoke 10 Spline | 1614-574-C, 18N4-2101, 18NYS40-5, 6.5-4-2101, 6.5-4-4291X, S-B926, SB926, SD-6.5-4-2101 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1810 Series End Yoke 10 Spline | 1614-574-C, 18...
Regular price
$124.42
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| Centerline To End | 5.406 |
| Centerline to End | 5.406 Inch |
| Dimensions | Spline Size: 2.500 - 10 Major Diameter: 2.500 Ground Hub Diameter: 3.500 Length Thru Hole: 2.406 Centerline To End: 5.406 Inch |
| Ground Hub Diameter | 3.5 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Length Thru Hole | 2.406 Inch |
| Length Thru Hole | 2.406 Inch |
| Major Diameter | 2.5 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.5 Inch |
| Outside Yoke Dimension | 7.547 Inch |
| Series | 1810 Series (Full Round) |
| Spline Diameter | 2.5 Inch |
| Spline Quantity | 10 |
| Spline Size | 2.500 - 10 Inch |
| Style | BP |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1614-574-C |
| Meritor | 18N4-2101 |
| Meritor | 18NYS40-5 |
| Spicer | 6.5-4-2101 |
| Spicer | 6.5-4-4291X |
| Genuine Newstar | S-B926 |
| Genuine Newstar | SB926 |
| Genuine Newstar | SD-6.5-4-2101 |
