SKU:
GTP06073

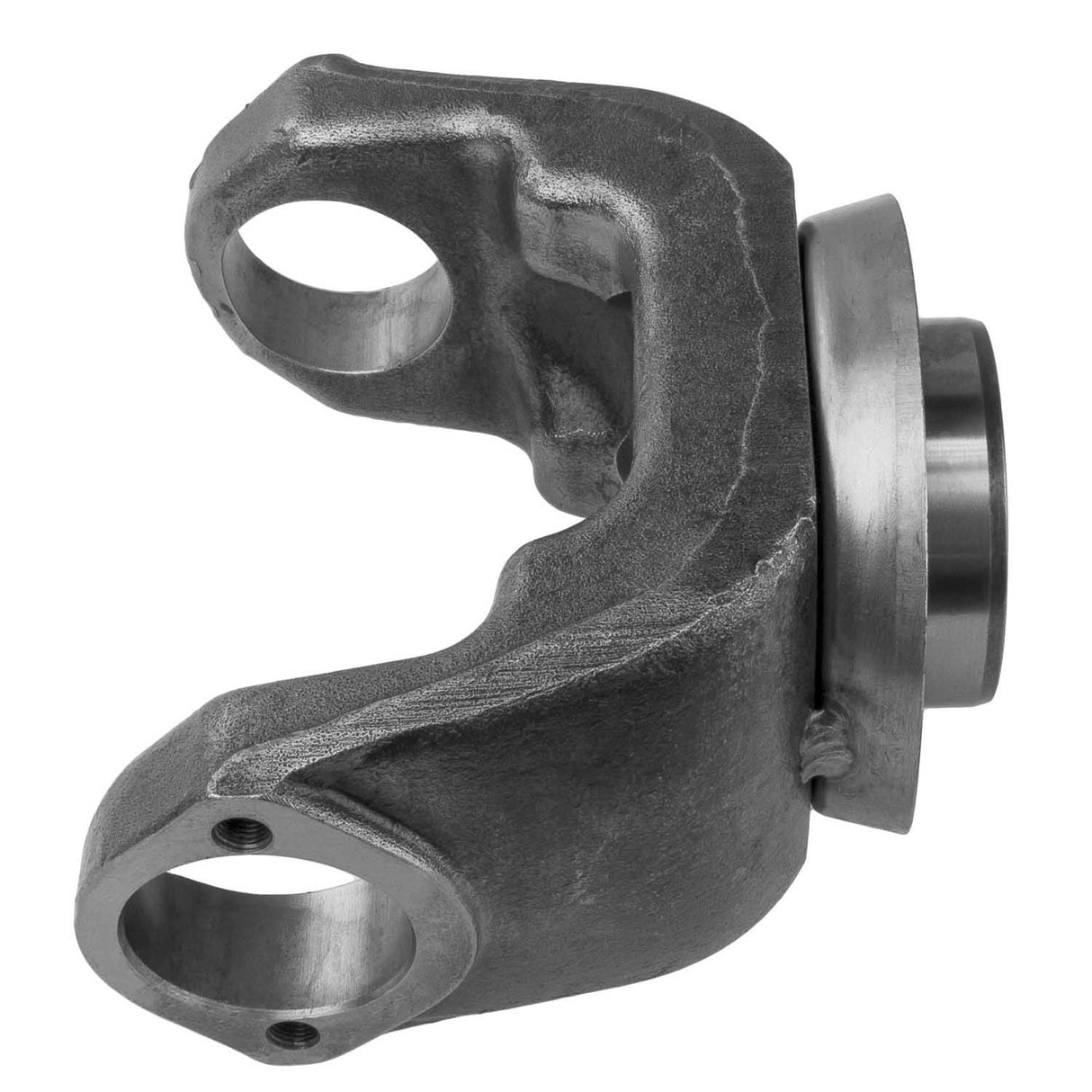

Bearing Plate Style 1810 Series End Yoke 39 Spline | 18N4-3381X, 583-090-C, 583090C, 583090C91, 6.5-4-3371, 6.5-4-3381, 6.5-4-3381X, 6543381X, N6.5-4-3381X, S-9380, S-A369, S9380, SA369, SD-6.5-4-3381X
Regular price
$132.53
Unit price
/
Unavailable
Shipping calculated at checkout.
Bearing Plate Style 1810 Series End Yoke 39 Spline | 18N4-3381X, 583-090-C, 583090C, 583090C91, 6.5-4-3371, 6.5-4-3381, 6.5-4-3381X, 6543381X, N6.5-4-3381X, S-9380, S-A369, S9380, SA369, SD-6.5-4-3381X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bearing Plate Style 1810 Series End Yoke 39 Spline | 18N4-3381X, 58...
Regular price
$132.53
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 7.55 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| C'bore Depth | 0.12 Inch |
| Centerline To End | 5.19 |
| Centerline to End | 5.19 Inch |
| Dimensions | Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 3.000 Length Thru Hole: 2.312 Centerline To End: 5.190 CBore Depth: 0.120 Inch |
| Ground Hub Diameter | 3 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Joint Angle | 30 Degrees |
| Length Thru Hole | 2.312 Inch |
| Length Thru Hole | 2.312 Inch |
| Major Diameter | 2.024 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Outside Yoke Dimension | 7.547 Inch |
| Series | 1810 Series (Full Round) |
| Spline Diameter | 2.031 Inch |
| Spline Length | 2.31 Inch |
| Spline Quantity | 39 |
| Spline Size | 2.024 - 39 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1810 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 18N4-3381X |
| International | 583-090-C |
| International | 583090C |
| International | 583090C91 |
| Spicer | 6.5-4-3371 |
| Spicer | 6.5-4-3381 |
| Spicer | 6.5-4-3381X |
| Freightliner | 6543381X |
| Neapco OE Series | N6.5-4-3381X |
| Genuine Newstar | S-9380 |
| Genuine Newstar | S-A369 |
| Genuine Newstar | S9380 |
| Genuine Newstar | SA369 |
| Genuine Newstar | SD-6.5-4-3381X |
