SKU:
AXL01009

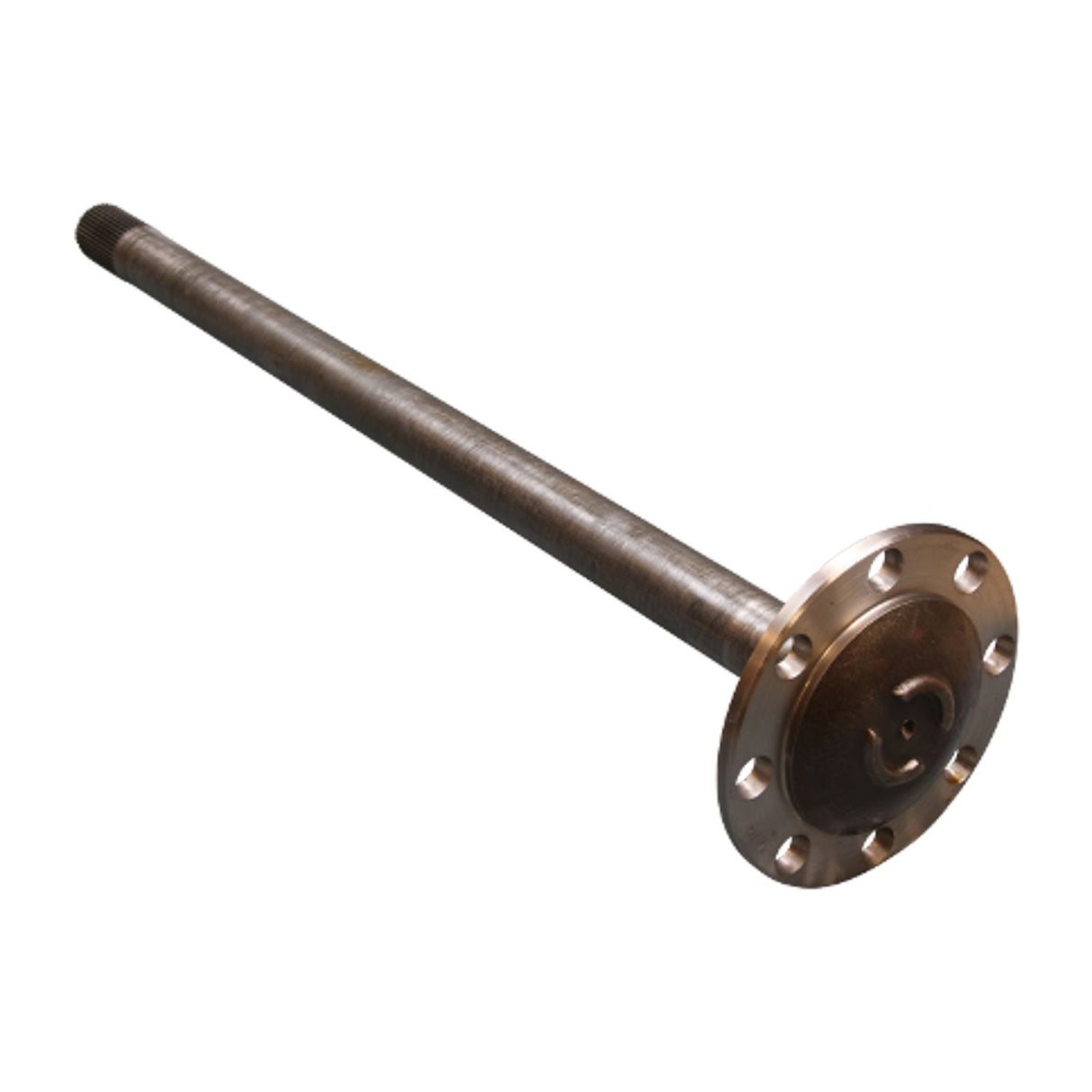

Bolt Pattern Spline Drive Axle Shaft for | 1101-S, 1101S, 3202-L-6356, 3202L6356G, 3202L6356R, 791453, 799-568-C, 799568C1, AS2524, D8HZ4234B, L6356, Q27075386, ROR-3202-L-6356, ROR3202L6356, S-6972, S6972, TDA, TDA
Regular price
$233.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Bolt Pattern Spline Drive Axle Shaft for | 1101-S, 1101S, 3202-L-6356, 3202L6356G, 3202L6356R, 791453, 799-568-C, 799568C1, AS2524, D8HZ4234B, L6356, Q27075386, ROR-3202-L-6356, ROR3202L6356, S-6972, S6972, TDA, TDA is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bolt Pattern Spline Drive Axle Shaft for | 1101-S, 1101S, 3202-L-63...
Regular price
$233.00
Unit price
/
Unavailable
This Drive Axle Shaft is heat treated and precision machined to handle maximum drivetrain torque in commercial truck and heavy-duty applications. It restores correct axle shaft geometry and drivetrain reliability.
Specifications
| Axle Flange Bolt Hole Quantity | 8 |
|---|---|
| Axle Spline Diameter | 2.1 Inch |
| Body Diameter | 2 Inch |
| Bolt Circle Diameter | 7.00 Inch |
| Dimensions | 2.100 - 41 Spline, 38.290 Long Inch |
| Flange Diameter | 8.38 Inch |
| Flange Outside Diameter | 6.62 Inch |
| Forging | 3202-K-6355 |
| Hole Size | 0.73 Inch |
| Holes Type | Taper |
| Inboard Spline Quantity | 41 |
| Length | 38-3/8 in. Inch |
| Numbers Of Splines | 41 |
| Outer Shaft Length | 38.29 Inch |
| Spline Length | 2.62 |
| Spline O.d | 41 - 2.100 Inch |
| Spline Size | 2.1 Inch |
| T-tapers/s-straight, #boltholes/sizes | T 8 - 41/64 Inch |
| Uforging (1) | 3202-K-6355 |
| Uforging (2) | 3206-R-1032 |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| OE Aftermarket | 1101-S |
| Foote Joint Operator | 1101S |
| Meritor | 3202-L-6356 |
| World American | 3202L6356G |
| Foote Joint Operator | 3202L6356R |
| GMC | 791453 |
| International | 799-568-C |
| International | 799568C1 |
| Spicer | AS2524 |
| Ford | D8HZ4234B |
| OE Aftermarket | L6356 |
| White Truck | Q27075386 |
| Genuine Newstar | ROR-3202-L-6356 |
| Rockwell International | ROR3202L6356 |
| Genuine Newstar | S-6972 |
| Genuine Newstar | S6972 |
| Freightliner | TDA |
