SKU: AXL01013

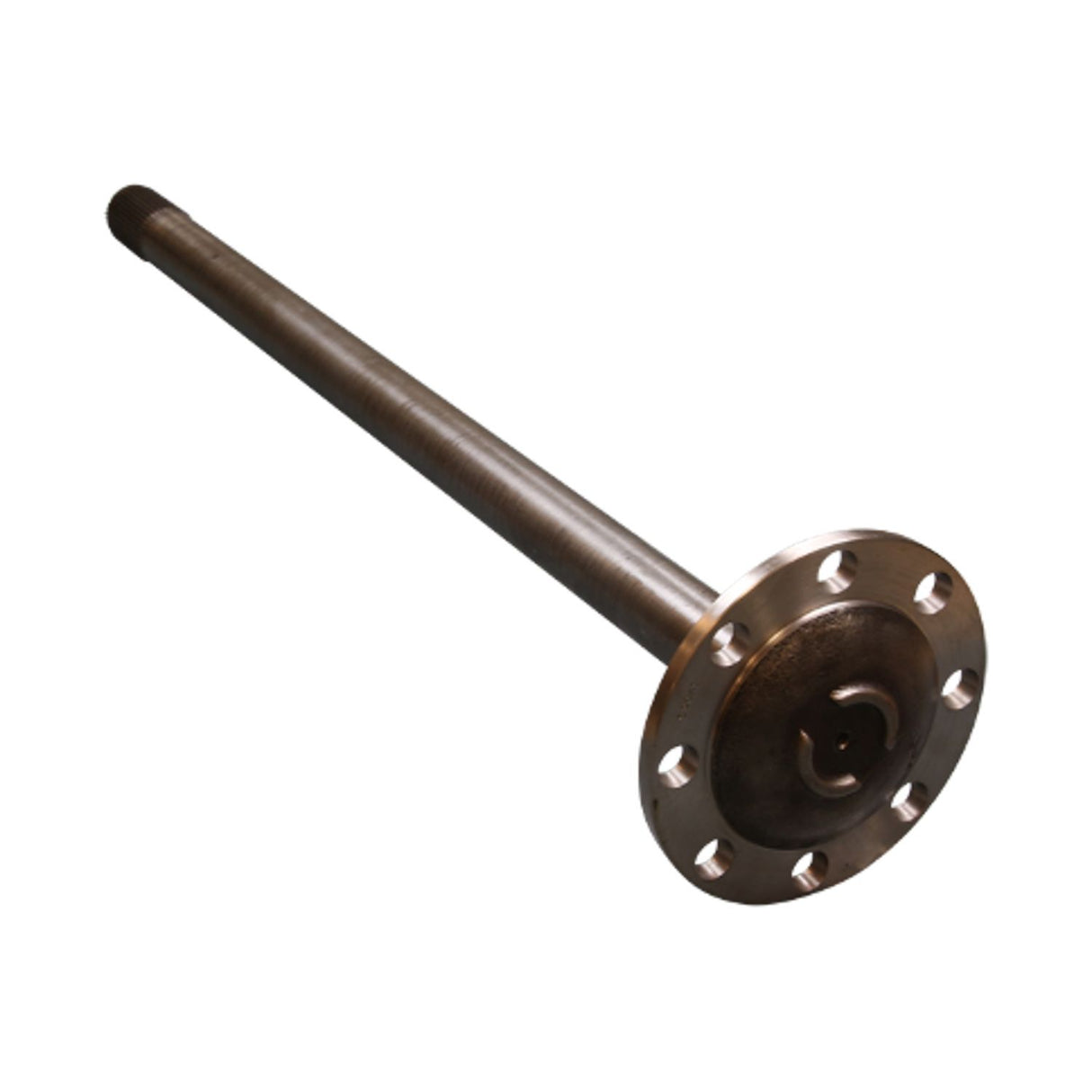

Bolt Pattern Spline Drive Axle Shaft for | 1178, 15617636, 3202-S-9041, 3202S9041, 82353202S9041, E7HZ4234H, ROR-3202-S-9041, ROR3202S9041, S-20536, S20536, S9041, TDA 3202S9041

$405.27
Shipping calculated at checkout.

If you need to order multiple parts, give us a call so our sales team can work to combine your order into fewer packages and save you money on shipping! 858-898-1558

Delivery and Shipping

This part typically ships within 1 to 2 business days.

This Drive Axle Shaft is heat treated and precision machined to handle maximum drivetrain torque in commercial truck and heavy-duty applications. It restores correct axle shaft geometry and drivetrain reliability.

Specifications

Axle Flange Bolt Hole Quantity 8
Axle Spline Diameter 2.1 Inch
Body Diameter 2 Inch
Bolt Circle Diameter 7.00 Inch
Dimensions 2.10 - 41 Spline, 38.04 Long Inch
Flange Diameter 8.38 Inch
Flange Outside Diameter 8.38 Inch
Forging 3202-M-9321
Hole Size 0.73 Inch
Holes Type Taper
Inboard Spline Quantity 41
Length 38-1/8 in. Inch
Numbers Of Splines 41
Outer Shaft Length 38.04 Inch
Spline Length 2.88
Spline O.d 41 - 2.100 Inch
Spline Size 2.1 Inch
T-tapers/s-straight, #boltholes/sizes T 7 - 0.73 Inch
Uforging (1) 3202-M-9321
Uforging (2) 3206-B-1016
Warranty Period 1 Year or 100,000 Miles

Interchange / Cross-Reference Numbers

Brand Part Number
Foote Joint Operator 1178
GMC 15617636
Meritor 3202-S-9041
Meritor 3202S9041
Automann 82353202S9041
Ford E7HZ4234H
Genuine Newstar ROR-3202-S-9041
Rockwell International ROR3202S9041
Genuine Newstar S-20536
Genuine Newstar S20536
OE Aftermarket S9041
Freightliner TDA 3202S9041
