SKU: AXL01068

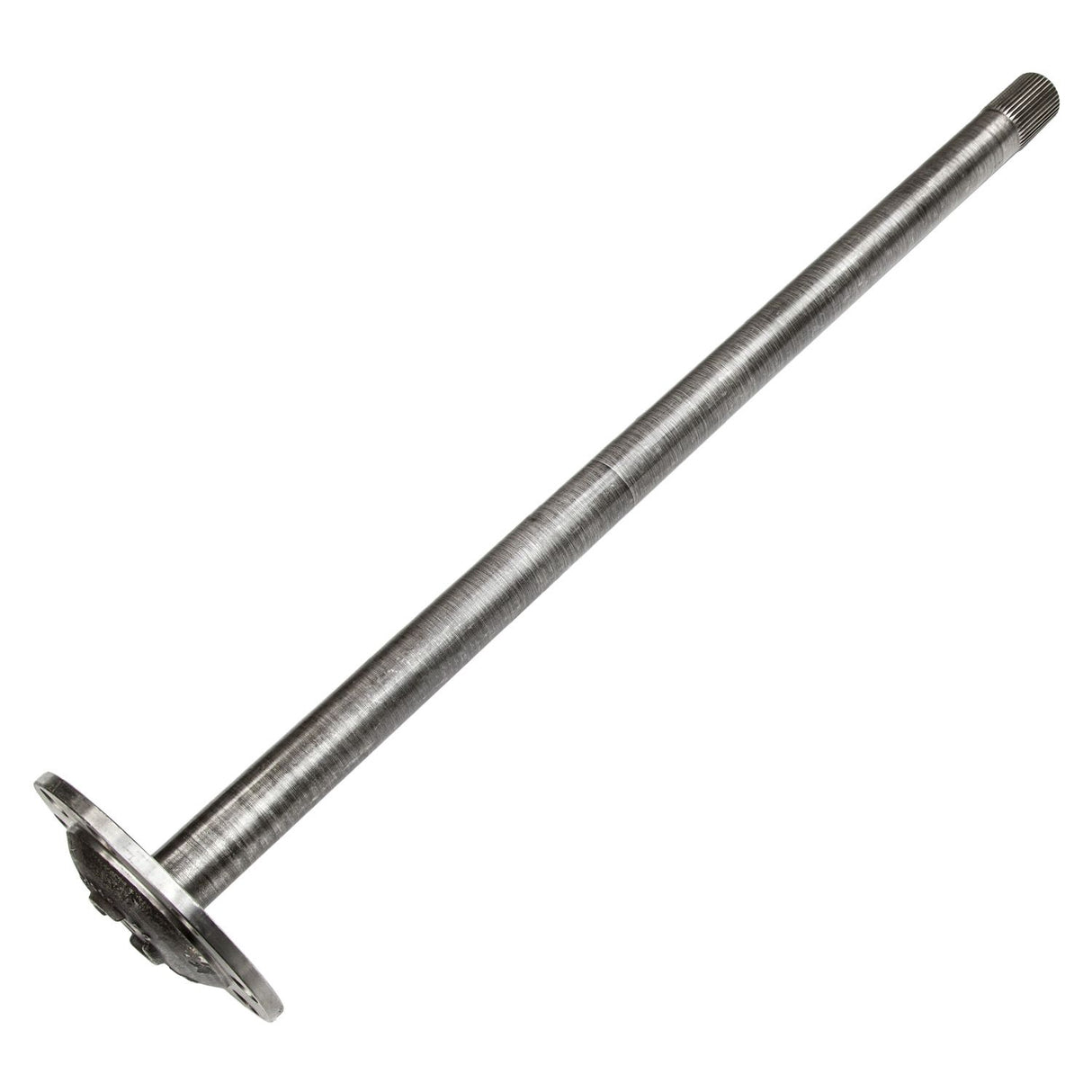

Bolt Pattern Spline Drive Axle Shaft for | 1181, 1676-584-C, 3202-Q-8935, 3202Q8935R, E9HZ4234G, Q8935, ROR-3202-Q-8935, ROR3202Q8935, S-9422, S9422, TDA, TDA

Name: Bolt Pattern Spline Drive Axle Shaft for | 1181, 1676-584-C, 3202-Q-8935, 3202Q8935R, E9HZ4234G, Q8935, ROR-3202-Q-8935, ROR3202Q8935, S-9422, S9422, TDA, TDA
Brand: Newstar
SKU: AXL01068
Price: 155.67 USD
Availability: InStock

$155.67

Shipping calculated at checkout.

If you need to order multiple parts, give us a call so our sales team can work to combine your order into fewer packages and save you money on shipping! 858-898-1558

Delivery and Shipping

This part typically ships within 1 to 2 business days.

This Drive Axle Shaft is heat treated and precision machined to handle maximum drivetrain torque in commercial truck and heavy-duty applications. It restores correct axle shaft geometry and drivetrain reliability.

Specifications

Axle Flange Bolt Hole Quantity	8
Axle Spline Diameter	2 Inch
Body Diameter	1.94 Inch
Bolt Circle Diameter	7.00 Inch
Dimensions	2.000 - 39 Spline, 40.150 Long Inch
Flange Bolt Style	Tapered
Flange Diameter	8.38 Inch
Flange Outside Diameter	8.375 Inch
Flange Type	Flange
Forging	3202-P-8934
Hole Size	0.73 Inch
Holes Type	Taper
Inboard Spline Quantity	39
Length	T 8 - 41/64. Inch
Numbers Of Splines	39
Shaft Length	40.812 Inch
Spline Length	2.36
Spline O.d	39 - 2.000 Inch
Spline Size	2 Inch
T-tapers/s-straight, #boltholes/sizes	T 7 Inch
Uforging (1)	3202-P-8934
Warranty Period	1 Year or 100,000 Miles

Interchange / Cross-Reference Numbers

Brand	Part Number
Foote Joint Operator	1181
International	1676-584-C
Meritor	3202-Q-8935
World American	3202Q8935R
Ford	E9HZ4234G
OE Aftermarket	Q8935
Genuine Newstar	ROR-3202-Q-8935
Rockwell International	ROR3202Q8935
Genuine Newstar	S-9422
Genuine Newstar	S9422
Freightliner	TDA
