SKU: AXL01069

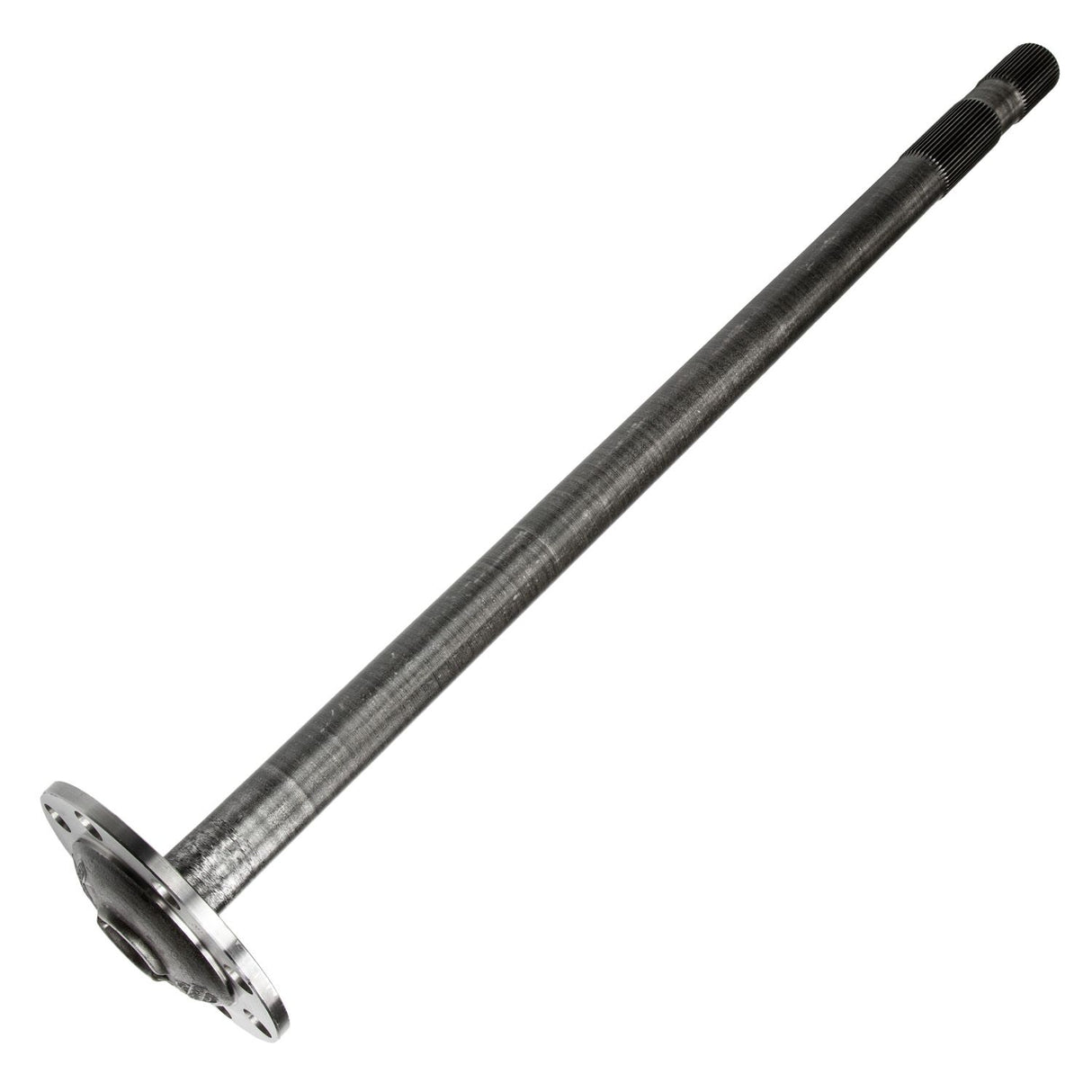

Bolt Pattern Spline Drive Axle Shaft for | 1190, 3202-H-9342, 3202H9342R, 6281, ROR-3202-H-9342, ROR3202H9342, S-D886, SD886, TDA, TDA

Name: Bolt Pattern Spline Drive Axle Shaft for | 1190, 3202-H-9342, 3202H9342R, 6281, ROR-3202-H-9342, ROR3202H9342, S-D886, SD886, TDA, TDA
Brand: Newstar
SKU: AXL01069
Price: 145.50 USD
Availability: InStock

$145.50

Shipping calculated at checkout.

If you need to order multiple parts, give us a call so our sales team can work to combine your order into fewer packages and save you money on shipping! 858-898-1558

Delivery and Shipping

This part typically ships within 1 to 2 business days.

This Drive Axle Shaft is heat treated and precision machined to handle maximum drivetrain torque in commercial truck and heavy-duty applications. It restores correct axle shaft geometry and drivetrain reliability.

Specifications

Axle Flange Bolt Hole Quantity	8
Axle Spline Diameter	2.1 Inch
Body Diameter	2 Inch
Bolt Circle Diameter	7 Inch
Dimensions	2.100 - 41 Spline, 43.130 Long Inch
Flange Bolt Style	Tapered
Flange Diameter	8.38 Inch
Flange Outside Diameter	8.375 Inch
Flange Type	Flange
Forging	3202-P-9116
Hole Size	0.73 Inch
Holes Type	Taper
Inboard Spline Quantity	41
Length	43-1/4 Inch
Numbers Of Splines	41
Shaft Length	43.25 Inch
Spline Length	8.12
Spline O.d	41 - 2.100 Inch
Spline Size	2.1 Inch
T-tapers/s-straight, #boltholes/sizes	T 8 -41/64 Inch
Uforging (1)	3202-S-9327
Uforging (2)	3202-P-9116
Uforging (3)	3206-G-1021
Wheel Bolt Pattern Size	8 x 7 Inch
Warranty Period	1 Year or 100,000 Miles

Interchange / Cross-Reference Numbers

Brand	Part Number
Foote Joint Operator	1190
Meritor	3202-H-9342
Foote Joint Operator	3202H9342R
OE Aftermarket	6281
Genuine Newstar	ROR-3202-H-9342
Rockwell International	ROR3202H9342
Genuine Newstar	S-D886
Genuine Newstar	SD886
Freightliner	TDA
