SKU:
AXL01090

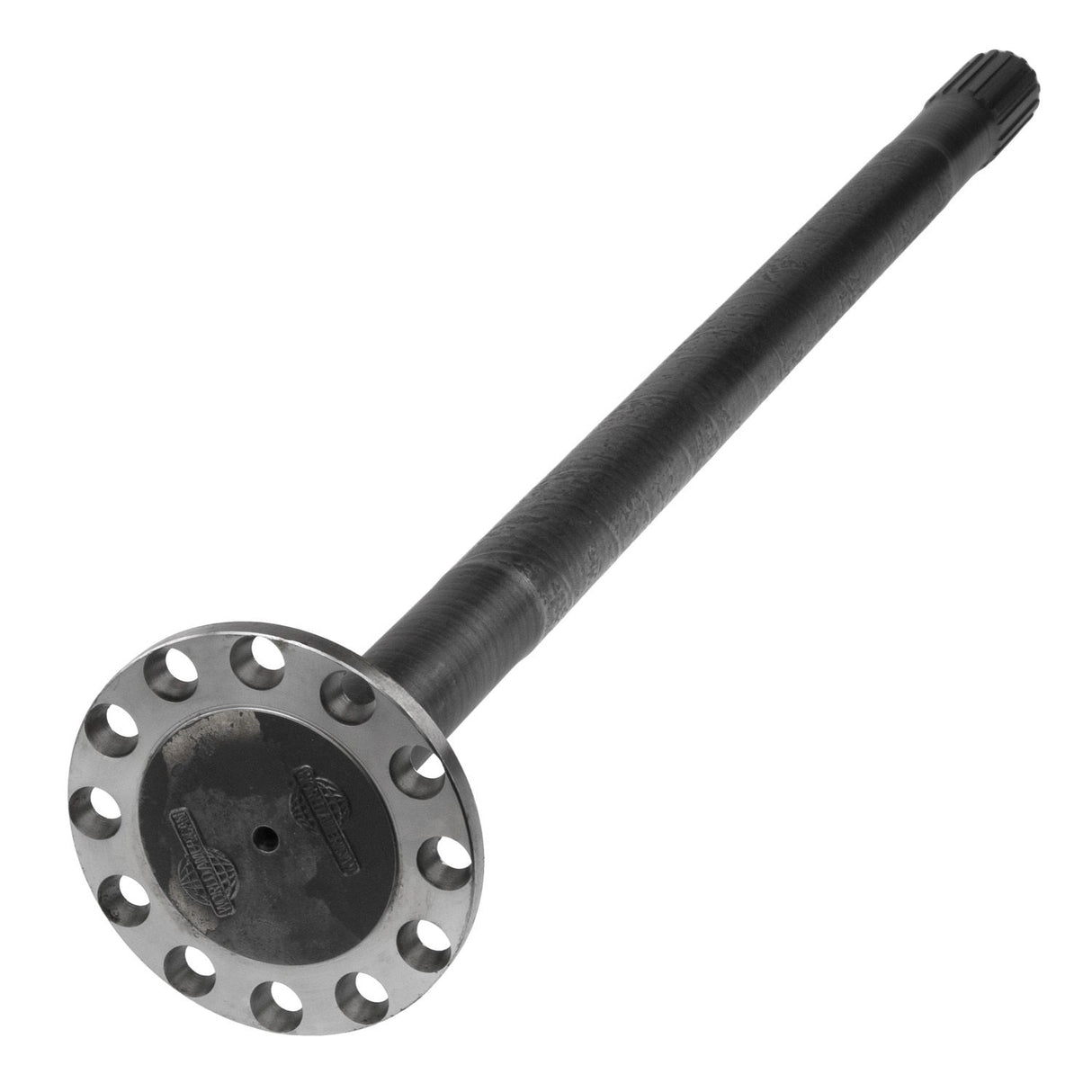

Bolt Pattern Spline Drive Axle Shaft for | 30687, 32686, 56980G, 56980R, 64973, 749F, 8236749, AS2466, B1QH-4235-A, BW749, C3TZ-4234-N, EAR-, EAR56980, ETN0056980, NSDS56980, S-3116, S3116, EAR-56980
Regular price
$103.27
Unit price
/
Unavailable
Shipping calculated at checkout.
Bolt Pattern Spline Drive Axle Shaft for | 30687, 32686, 56980G, 56980R, 64973, 749F, 8236749, AS2466, B1QH-4235-A, BW749, C3TZ-4234-N, EAR-, EAR56980, ETN0056980, NSDS56980, S-3116, S3116, EAR-56980 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bolt Pattern Spline Drive Axle Shaft for | 30687, 32686, 56980G, 56...
Regular price
$103.27
Unit price
/
Unavailable
This Drive Axle Shaft is heat treated and precision machined to handle maximum drivetrain torque in commercial truck and heavy-duty applications. It restores correct axle shaft geometry and drivetrain reliability.
Specifications
| Axle Flange Bolt Hole Quantity | 12 |
|---|---|
| Axle Spline Diameter | 1.975 Inch |
| Bearing(s) Included | No |
| Body Diameter | 1.81 Inch |
| Bolt Circle Diameter | 5.25 Inch |
| Dimensions | 1.98 - 16 Spline, 40.906 Long Inch |
| Flange Bolt Style | Tapered |
| Flange Diameter | 6.13 Inch |
| Flange Outside Diameter | 6.125 Inch |
| Flange Type | Flange |
| Holes Type | Straight |
| Inboard Spline Quantity | 16 |
| Length | 40-3/4 Inch |
| Numbers Of Splines | 16 |
| Shaft Length | 40.75 Inch |
| Spline O.d | 1.98 Inch |
| Spline O.d | 16 - 1.975 Inch |
| T-tapers/s-straight, #boltholes/sizes | T12 - 17/32 Inch |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Eaton | 30687 |
| Eaton | 32686 |
| Eaton | 56980G |
| Eaton | 56980R |
| Eaton | 64973 |
| Foote Joint Operator | 749F |
| Automann | 8236749 |
| Spicer | AS2466 |
| Ford | B1QH-4235-A |
| Eaton | BW749 |
| Ford | C3TZ-4234-N |
| Genuine Newstar | EAR- |
| Eaton | EAR56980 |
| International | ETN0056980 |
| International | NSDS56980 |
| Genuine Newstar | S-3116 |
| Genuine Newstar | S3116 |
