SKU: AXL01560

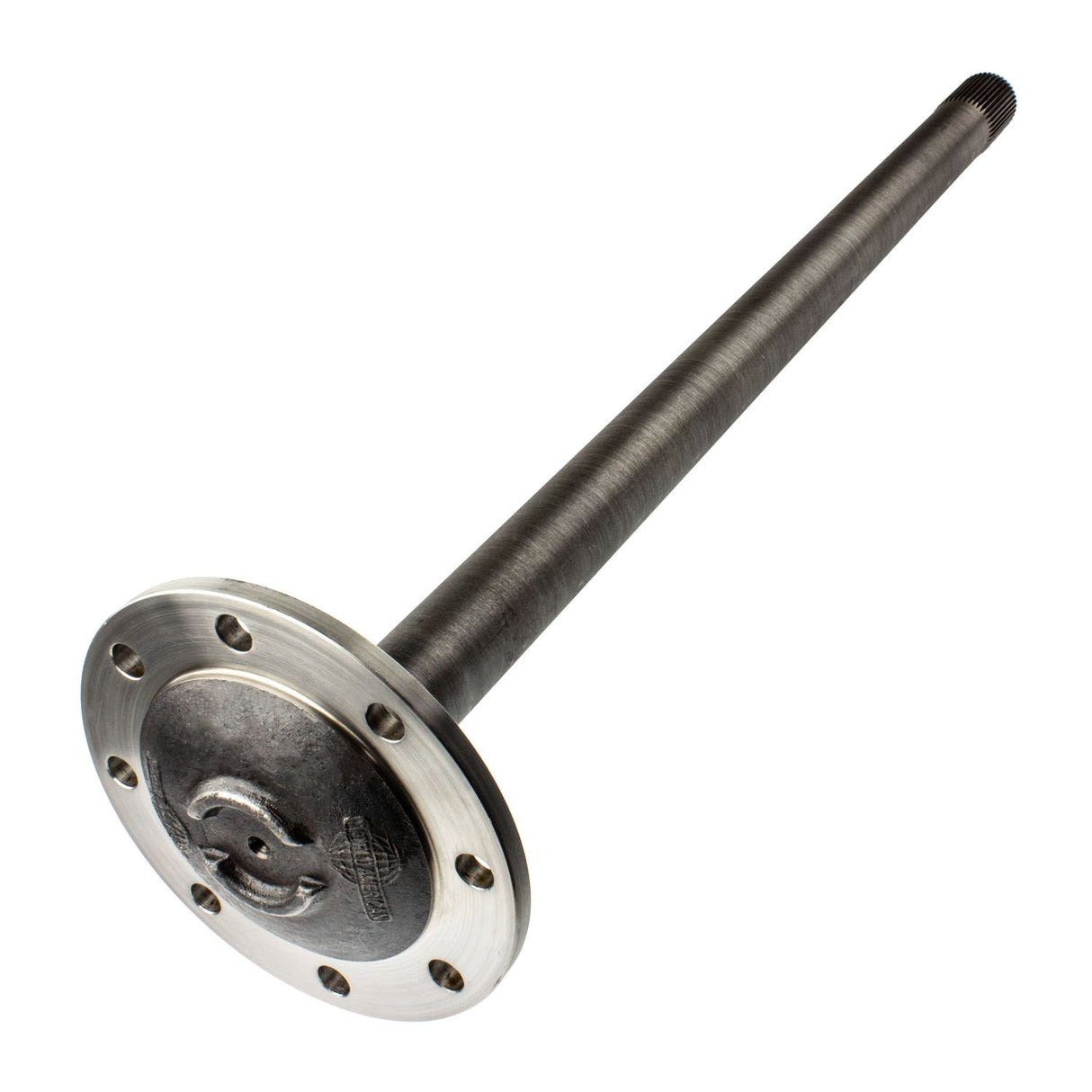

Bolt Pattern Spline Drive Axle Shaft for | 3202-S-9483, 8235-, ROR-3202-S-9483, ROR3202S9483, S-11848, S11848, TDA, TDA3202S9483, 8235-3202S9483, TDA

Name: Bolt Pattern Spline Drive Axle Shaft for | 3202-S-9483, 8235-, ROR-3202-S-9483, ROR3202S9483, S-11848, S11848, TDA, TDA3202S9483, 8235-3202S9483, TDA
Brand: Newstar
SKU: AXL01560
Price: 191.37 USD
Availability: InStock

$191.37

Shipping calculated at checkout.

If you need to order multiple parts, give us a call so our sales team can work to combine your order into fewer packages and save you money on shipping! 858-898-1558

Delivery and Shipping

This part typically ships within 1 to 2 business days.

This Drive Axle Shaft is heat treated and precision machined to handle maximum drivetrain torque in commercial truck and heavy-duty applications. It restores correct axle shaft geometry and drivetrain reliability.

Specifications

Axle Flange Bolt Hole Quantity	8
Axle Spline Diameter	2.1 Inch
Body Diameter	2 Inch
Bolt Circle Diameter	7 Inch
Dimensions	2.10 - 41 Spline, 38.04 Long Inch
Flange Bolt Style	Tapered
Flange Diameter	8.38 Inch
Flange Outside Diameter	8.375 Inch
Flange Type	Flange
Forging	3202-M-9321
Hole Size	0.64 Inch
Holes Type	Straight
Inboard Spline Quantity	41
Length	38.04
Numbers Of Splines	41
Shaft Length	40.375 Inch
Spline Length	2.88
Spline O.d	41 - 2.100 Inch
Spline Size	2.1 Inch
T-tapers/s-straight, #boltholes/sizes	S 8 -41/64 Inch
Uforging (1)	3202-M-9321
Uforging (2)	3206-B-1016
Warranty Period	1 Year or 100,000 Miles

Interchange / Cross-Reference Numbers

Brand	Part Number
Meritor	3202-S-9483
Mack	8235-
Genuine Newstar	ROR-3202-S-9483
Rockwell International	ROR3202S9483
Genuine Newstar	S-11848
Genuine Newstar	S11848
Freightliner	TDA
Freightliner	TDA3202S9483
