SKU:
AXL01063
Bolt Pattern Spline Drive Axle Shaft for Dana 60 | 1150, 119594, 119594R, 2502-177-C, 578-778-C, 578778-C2, 578778C2, 62502, AS2497, IH-578-778-C, IH578778C, S-9511, S9511
Regular price
$150.38
Unit price
/
Unavailable
Shipping calculated at checkout.
Bolt Pattern Spline Drive Axle Shaft for Dana 60 | 1150, 119594, 119594R, 2502-177-C, 578-778-C, 578778-C2, 578778C2, 62502, AS2497, IH-578-778-C, IH578778C, S-9511, S9511 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Bolt Pattern Spline Drive Axle Shaft for Dana 60 | 1150, 119594, 11...
Regular price
$150.38
Unit price
/
Unavailable

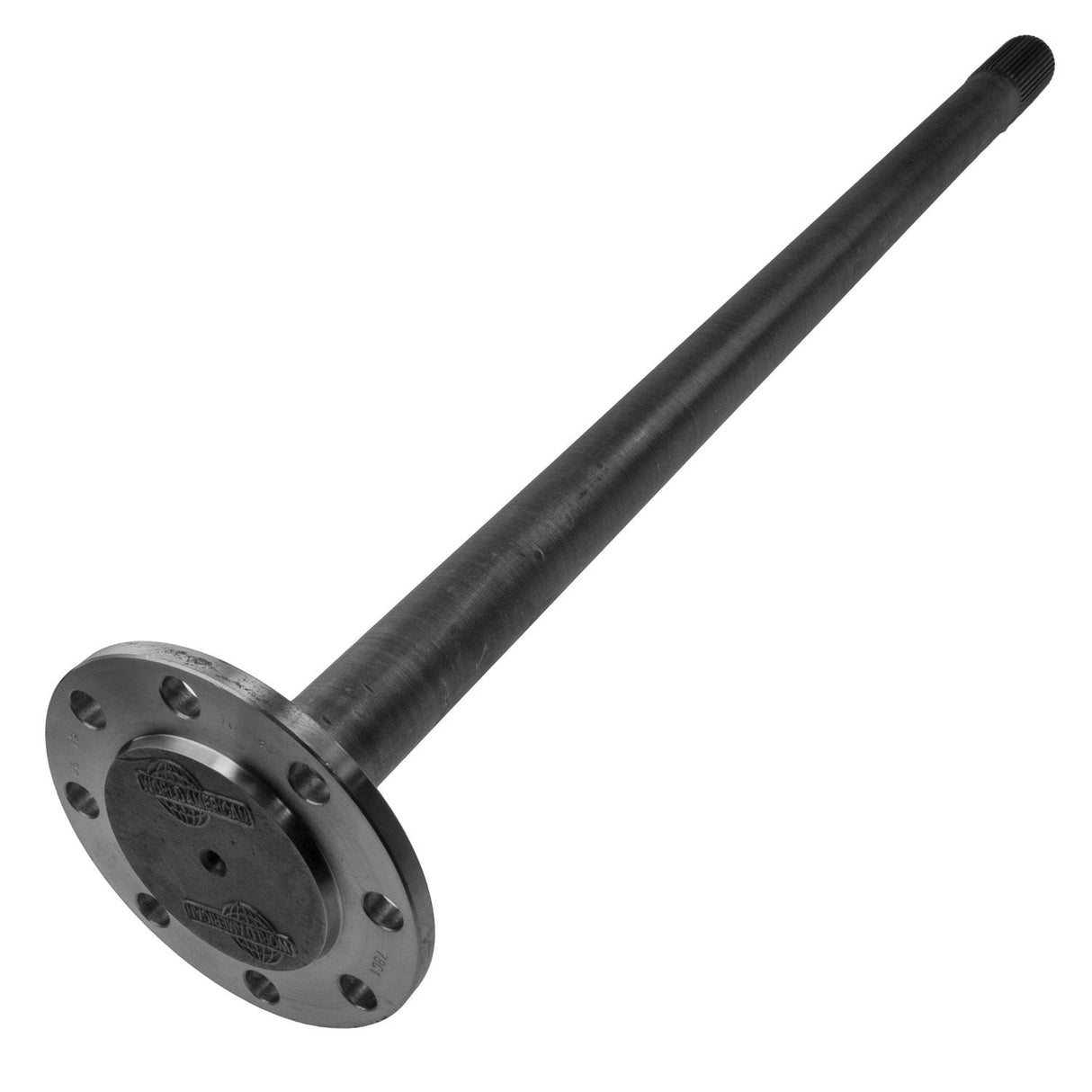

This Drive Axle Shaft is heat treated and precision machined to handle maximum drivetrain torque in commercial truck and heavy-duty applications. It restores correct axle shaft geometry and drivetrain reliability.
Specifications
| Axle Flange Bolt Hole Quantity | 8 |
|---|---|
| Axle Spline Diameter | 2 Inch |
| Axle Type | Semi-Floating |
| Bearing(s) Included | No |
| Body Diameter | 1.81 Inch |
| Bolt Circle Diameter | 5.5 Inch |
| Cover Bolt Quantity | 10 |
| Differential Model | Dana 60 |
| Dimensions | 2.000 - 39 Spline, 40.906 Long Inch |
| Flange Bolt Style | Straight |
| Flange Diameter | 6.63 Inch |
| Flange Outside Diameter | 6.625 Inch |
| Flange Type | Flange |
| Holes Type | Straight |
| Inboard Spline Quantity | 39 |
| Length | S 8 - 41/64 Inch |
| Numbers Of Splines | 39 |
| Outboard Spline Quantity | 30 |
| Seal Included | No |
| Shaft Length | 41 Inch |
| Spline O.d | 2 Inch |
| Spline O.d | 39 - 2.000 Inch |
| T-tapers/s-straight, #boltholes/sizes | S 8 - 41-64 Inch |
| Universal Joint Series | 1480 |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Foote Joint Operator | 1150 |
| Spicer | 119594 |
| Eaton | 119594R |
| International | 2502-177-C |
| International | 578-778-C |
| International | 578778-C2 |
| International | 578778C2 |
| OE Aftermarket | 62502 |
| Spicer | AS2497 |
| Genuine Newstar | IH-578-778-C |
| International | IH578778C |
| Genuine Newstar | S-9511 |
| Genuine Newstar | S9511 |
