SKU:
BRK01275

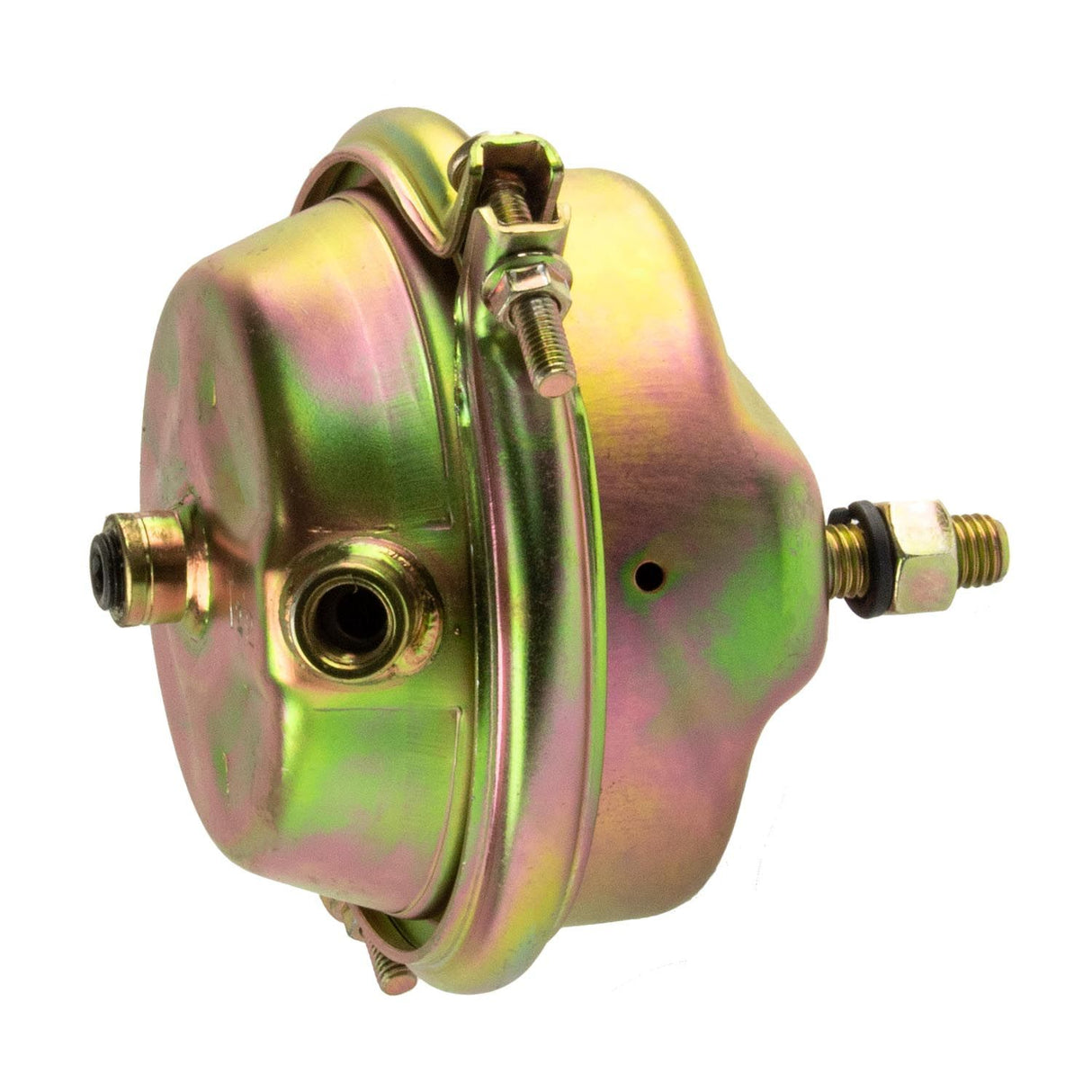

Disc Brake Service Chamber Type 22 2.5" Standard Stroke | 179.SC22DB, K028238, K28238, S-41902, S41902, SC22DB
Regular price
$67.28
Unit price
/
Unavailable
Shipping calculated at checkout.
Disc Brake Service Chamber Type 22 2.5" Standard Stroke | 179.SC22DB, K028238, K28238, S-41902, S41902, SC22DB is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Disc Brake Service Chamber Type 22 2.5" Standard Stroke | 179....
Regular price
$67.28
Unit price
/
Unavailable
This Air Brake Chamber is FMVSS-compliant and engineered for commercial air brake system reliability. Manufactured to OEM specifications for pressure ratings, it ensures correct brake actuation and air management.
Specifications
| Air Chamber Length | 4.375 Inch |
|---|---|
| Air Port Position | 270 Degrees |
| Chamber Type | Service |
| Clevis Type | None |
| Diaphragm Type | 22 |
| Disc Or Drum Brakes | Disc Brake |
| Inlet Port Thread Size | 3/8"-18 NPTF |
| Inlet Type | Round |
| Mount Hole Center To Center Length | 4.75 Inch |
| Mounting Stud Thread Length | 1.7 Inch |
| Mounting Stud Thread Size | M16-1.5 |
| Push Rod Diameter | Spherical End |
| Push Rod Length | 15 Millimeter |
| Ram Stroke | 2.5 Inch |
| Stroke Type | Standard |
| Type | Type 22 |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Automann | 179.SC22DB |
| Bendix | K028238 |
| Bendix | K28238 |
| Genuine Newstar | S-41902 |
| Genuine Newstar | S41902 |
| Haldex | SC22DB |
