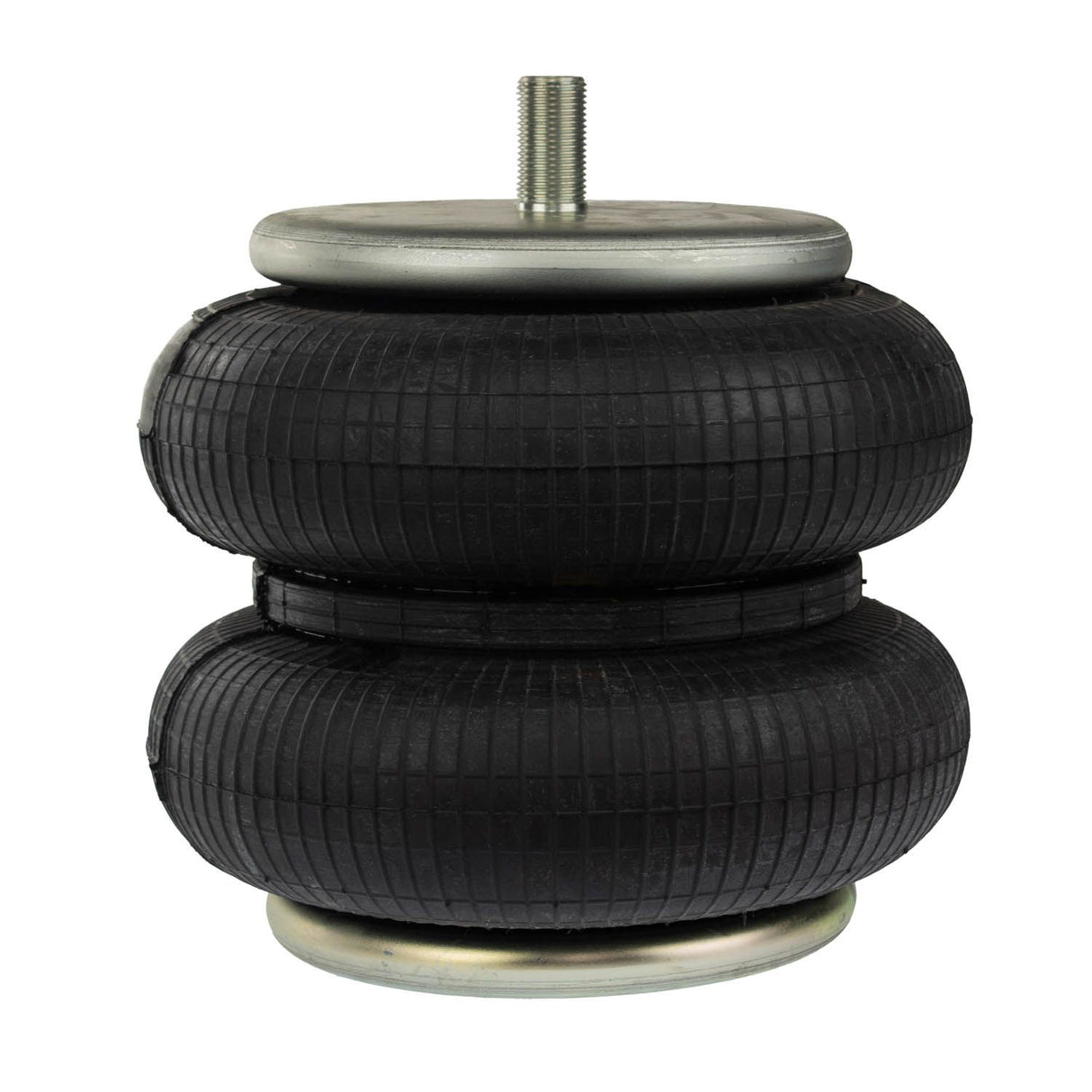

This Air Suspension Spring is engineered for the load ratings and duty cycles of commercial trucks. It maintains correct ride height, vehicle handling, and load capacity while withstanding heavy payloads and rough road conditions.
Specifications
| Air Spring Type | Double Convoluted |
|---|---|
| Base Plate Material | Aluminum |
| Bottom Configuration | 2.25" C/C Inch |
| Bottom Plate Bolt Hole Quantity | 2 |
| Bottom Plate Diameter | 6.31 Inch |
| Bottom Plate to Top Plate Mounting Alignment | Parallel |
| Compressed Length | 3.12 Inch |
| Extended Length | 11.6 Inch |
| Load Rating at 100 PSI | 3260 Pound |
| Load Rating at 80 PSI | 2607 Pound |
| Maximum Diameter | 8.88 Inch |
| Top Plate Bolt Hole Quantity | 1 |
| Top Plate Diameter | 6.31 Inch |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Hendrickson | 003317 |
| Batco | 10-97795 |
| Goodyear | 2B10-226 |
| Dayton Parts | 354-7795 |
| Triangle Air Springs | 4524 |
| Dayton Parts | 454-7795L |
| Automann | 566.ER7795 |
| Continental-ContiTech | 67705 |
| Firestone | 7795 |
| Firestone | 97795 |
| Automann | ABSP2B12R-7795 |
| Watson & Chalin | AS-0146-1G |
| Watson & Chalin | AS-01461G |
| Triangle Air Springs | AS-4524 |
| Watson & Chalin | AS-4713 |
| Watson & Chalin | AS01461G |
| Continental-ContiTech | AS7795 |
| Paccar Parts | AS77950 |
| Hendrickson | B14486 |
| Euclid | E-FS7795 |
| Continental-ContiTech | FD 200-22 524 |
| Continental-ContiTech | FD200-22 524 |
| Continental-ContiTech | FD20022524 |
| Genuine Newstar | FIR-W01-358-7795 |
| Meritor | FS7795 |
| Neway Suspension - USE BCDM | G2297795500 |
| BWP | M-3562 |
| Meritor | RFS7795 |
| Hendrickson | S-14486 |
| Genuine Newstar | S-34328 |
| Hendrickson | S14486 |
| Genuine Newstar | S34328 |
| Automann | SP2B12R-7795 |
| Torque | TR7795 |
| Firestone | W01-358-7795 |
