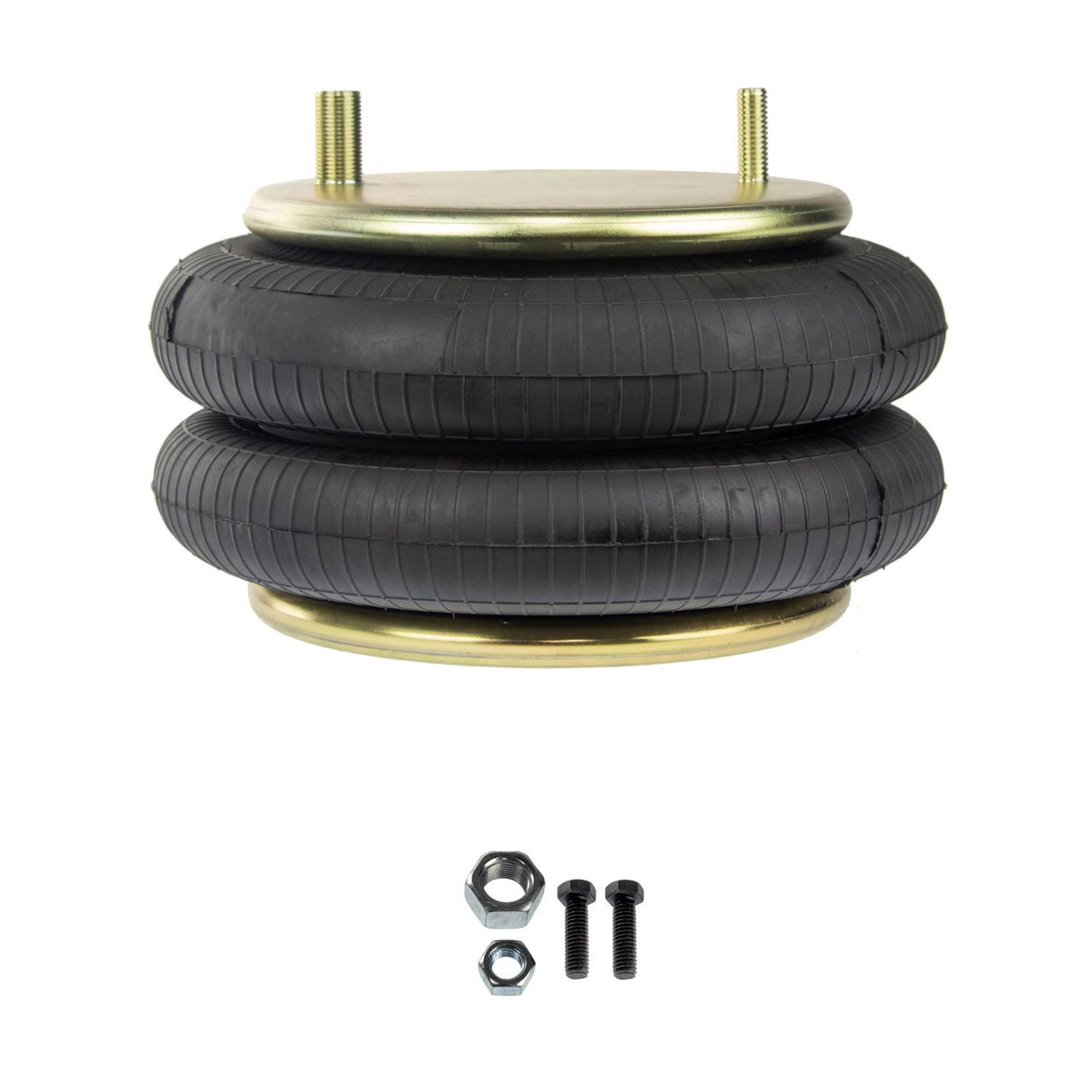

Double Convoluted Air Spring with Aluminum Base, Replaces Firestone | 10-97410, 1003587410C, 16-11378-000, 2B12-406, 354-7410, 4331, 554792C1, 57007410, 97410, ABSP2B22R-7410, AS-0136, AS-4331, AS74100, E-FS7410, FD 330-22 331, FD33022331, FI W01 358 7410
Regular price
$96.15
Unit price
/
Unavailable
Shipping calculated at checkout.
Double Convoluted Air Spring with Aluminum Base, Replaces Firestone | 10-97410, 1003587410C, 16-11378-000, 2B12-406, 354-7410, 4331, 554792C1, 57007410, 97410, ABSP2B22R-7410, AS-0136, AS-4331, AS74100, E-FS7410, FD 330-22 331, FD33022331, FI W01 358 7410 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Double Convoluted Air Spring with Aluminum Base, Replaces Firestone...
Regular price
$96.15
Unit price
/
Unavailable
This Air Suspension Spring is engineered for the load ratings and duty cycles of commercial trucks. It maintains correct ride height, vehicle handling, and load capacity while withstanding heavy payloads and rough road conditions.
Specifications
| Air Spring Type | Double Convoluted |
|---|---|
| Base Plate Material | Aluminum |
| Bottom Configuration | 2.25" C/C Inch |
| Bottom Plate Bolt Hole Quantity | 2 |
| Bottom Plate Diameter | 9 Inch |
| Bottom Plate to Top Plate Mounting Alignment | Parallel |
| Compressed Length | 4.2 Inch |
| Extended Length | 12 Inch |
| Load Rating at 100 PSI | 5250 Pound |
| Load Rating at 80 PSI | 4200 Pound |
| Maximum Diameter | 12 Inch |
| Top Plate Bolt Hole Quantity | 2 |
| Top Plate Diameter | 9 Inch |
| Top Plate Mounting/Fitting Configuration | 6.2" C/C Inch |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Batco | 10-97410 |
| Ridewell Corp | 1003587410C |
| Freightliner | 16-11378-000 |
| Goodyear | 2B12-406 |
| Dayton Parts | 354-7410 |
| Triangle Air Springs | 4331 |
| International | 554792C1 |
| Holland | 57007410 |
| Firestone | 97410 |
| Automann | ABSP2B22R-7410 |
| Watson & Chalin | AS-0136 |
| Triangle Air Springs | AS-4331 |
| TRP | AS74100 |
| Euclid | E-FS7410 |
| Continental-ContiTech | FD 330-22 331 |
| Continental-ContiTech | FD33022331 |
| Freightliner | FI W01 358 7410 |
| Genuine Newstar | FIR-W01-358-7410 |
| Meritor | FS7410 |
| Neway Suspension - USE BCDM | G2297410500 |
| Freightliner | GYR 2B12 406 |
| BWP | M-3508 |
| Meritor | RFS7410 |
| Hendrickson | S-13036 |
| Genuine Newstar | S-36233 |
| Genuine Newstar | S36233 |
| Leland Brake & Wheel Parts | SC2023 |
| Torque | TR7410 |
| Firestone | W01-358-7410 |
