SKU:
BRK01244

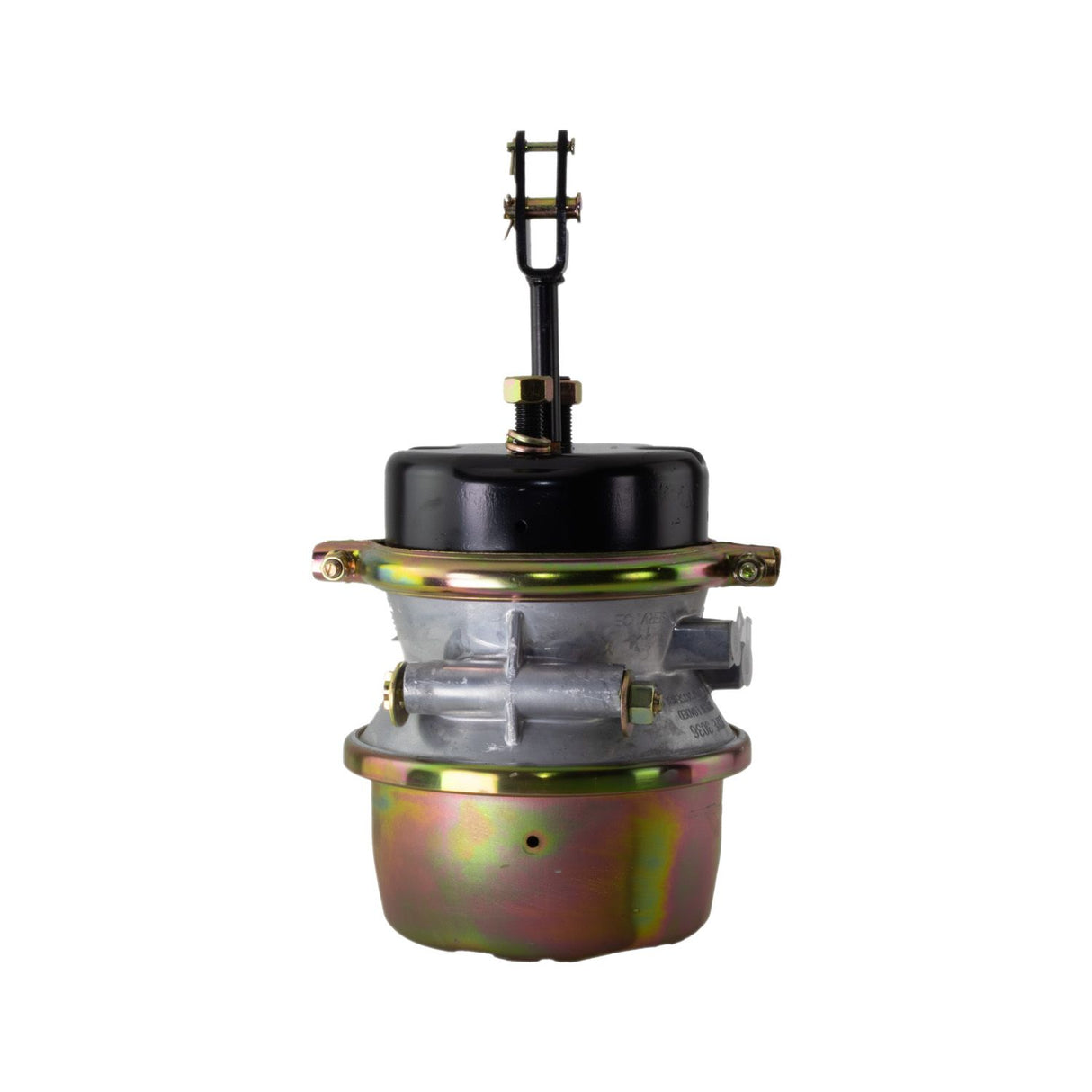

Drum Brake Chamber Type 30/36 2.5" Standard Stroke Welded Clevis | GC3036CW, HAR-GC3036CW, S-36088, S36088
Regular price
$100.19
Unit price
/
Unavailable
Shipping calculated at checkout.
Drum Brake Chamber Type 30/36 2.5" Standard Stroke Welded Clevis | GC3036CW, HAR-GC3036CW, S-36088, S36088 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Drum Brake Chamber Type 30/36 2.5" Standard Stroke Welded Clev...
Regular price
$100.19
Unit price
/
Unavailable
This Air Brake Chamber is FMVSS-compliant and engineered for commercial air brake system reliability. Manufactured to OEM specifications for pressure ratings, it ensures correct brake actuation and air management.
Specifications
| Air Port Position | 90 Degrees |
|---|---|
| Chamber Type | Combination |
| Clevis Type | Welded |
| Disc Or Drum Brakes | Drum Brake |
| Hardware Included | Y |
| Inlet Port Thread Size | 3/8"-18 NPTF |
| Inlet Type | Round |
| Maximum Air Pressure | 150 Pounds per Square In |
| Mount Hole Center To Center Length | 4.75 Inch |
| Mounting Stud Thread Length | 1.5 Inch |
| Mounting Stud Thread Size | 5/8"-11 |
| Push Rod Diameter | 5/8"-18 |
| Ram Stroke | 2.5 Inch |
| Stroke Type | Standard |
| Type | Type 30/36 |
| Warranty Period | 1 Year or 100,000 Miles |
Vehicle Applications
| Year | Make | Model |
|---|---|---|
| 2016-2021 | Peterbilt | 220 |
| 2010-2018 | Peterbilt | 320 1996-2003, Peterbilt 320 2006, Peterbilt 320 |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Haldex | GC3036CW |
| Genuine Newstar | HAR-GC3036CW |
| Genuine Newstar | S-36088 |
| Genuine Newstar | S36088 |
