SKU:
GTP06053

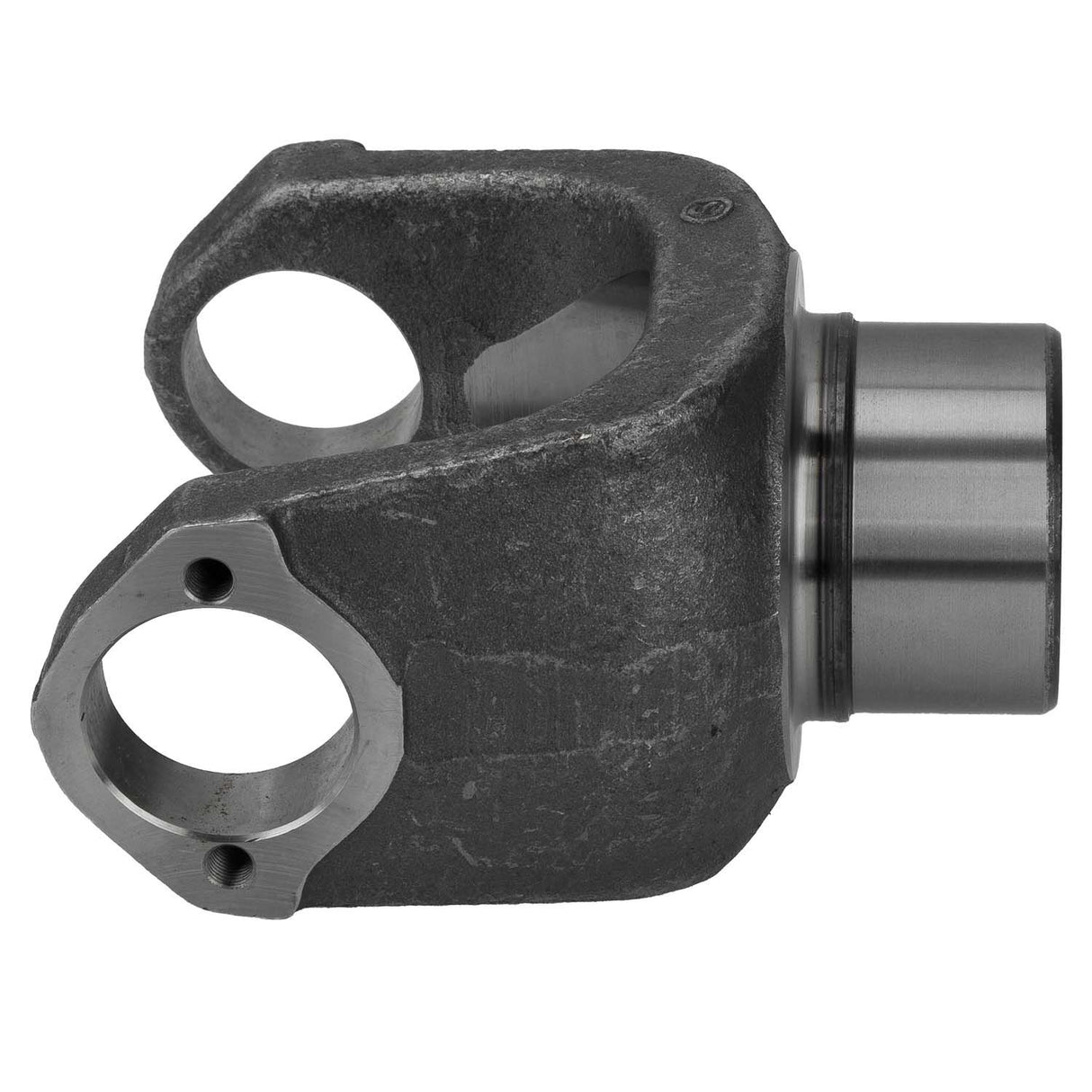

Full Round Style 1710 Series End Yoke 10 Spline | 1662-246-C, 1662246C, 1662246C91, 17N4-1991, 17N4-4411X, 17N41991, 2104-644411X, 3280-E-1643, 436-032-R, 6-4-3231, 6-4-4411, 6-4-4411X, 6-4-4411XR, 644411XR, A3-3280E1643, C6TZ-4851-P, N6-4-4411X, S-9027
Regular price
$100.23
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1710 Series End Yoke 10 Spline | 1662-246-C, 1662246C, 1662246C91, 17N4-1991, 17N4-4411X, 17N41991, 2104-644411X, 3280-E-1643, 436-032-R, 6-4-3231, 6-4-4411, 6-4-4411X, 6-4-4411XR, 644411XR, A3-3280E1643, C6TZ-4851-P, N6-4-4411X, S-9027 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1710 Series End Yoke 10 Spline | 1662-246-C, 16622...
Regular price
$100.23
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| C'bore Depth | 0.25 Inch |
| C-Bore Depth | 0.25 Inch |
| Centerline to End | 6.062 Inch |
| Centerline To End | 6.062 |
| Dimensions | Spline Size: 2.250 - 10 Major Diameter: 2.250 Ground Hub Diameter: 3.000 Length Thru Hole: 3.000 Centerline To End: 6.062 CBore Depth: 0.250 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 2.25 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Full Round) |
| Spline Quantity | 10 |
| Spline Size | 2.250 - 10 Inch |
| Style | BP |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.25 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1662-246-C |
| International | 1662246C |
| International | 1662246C91 |
| Meritor | 17N4-1991 |
| Meritor | 17N4-4411X |
| Meritor | 17N41991 |
| Mack | 2104-644411X |
| Meritor | 3280-E-1643 |
| International | 436-032-R |
| Spicer | 6-4-3231 |
| Spicer | 6-4-4411 |
| Spicer | 6-4-4411X |
| World American | 6-4-4411XR |
| World American | 644411XR |
| Meritor | A3-3280E1643 |
| Ford | C6TZ-4851-P |
| Neapco OE Series | N6-4-4411X |
| Genuine Newstar | S-9027 |
| Genuine Newstar | S9027 |
| Genuine Newstar | SD-6-4-4411X |
| Spicer | SD644411X |
| Freightliner | SP641991 |
| Freightliner | SP644411X |
