SKU:
GTP06024

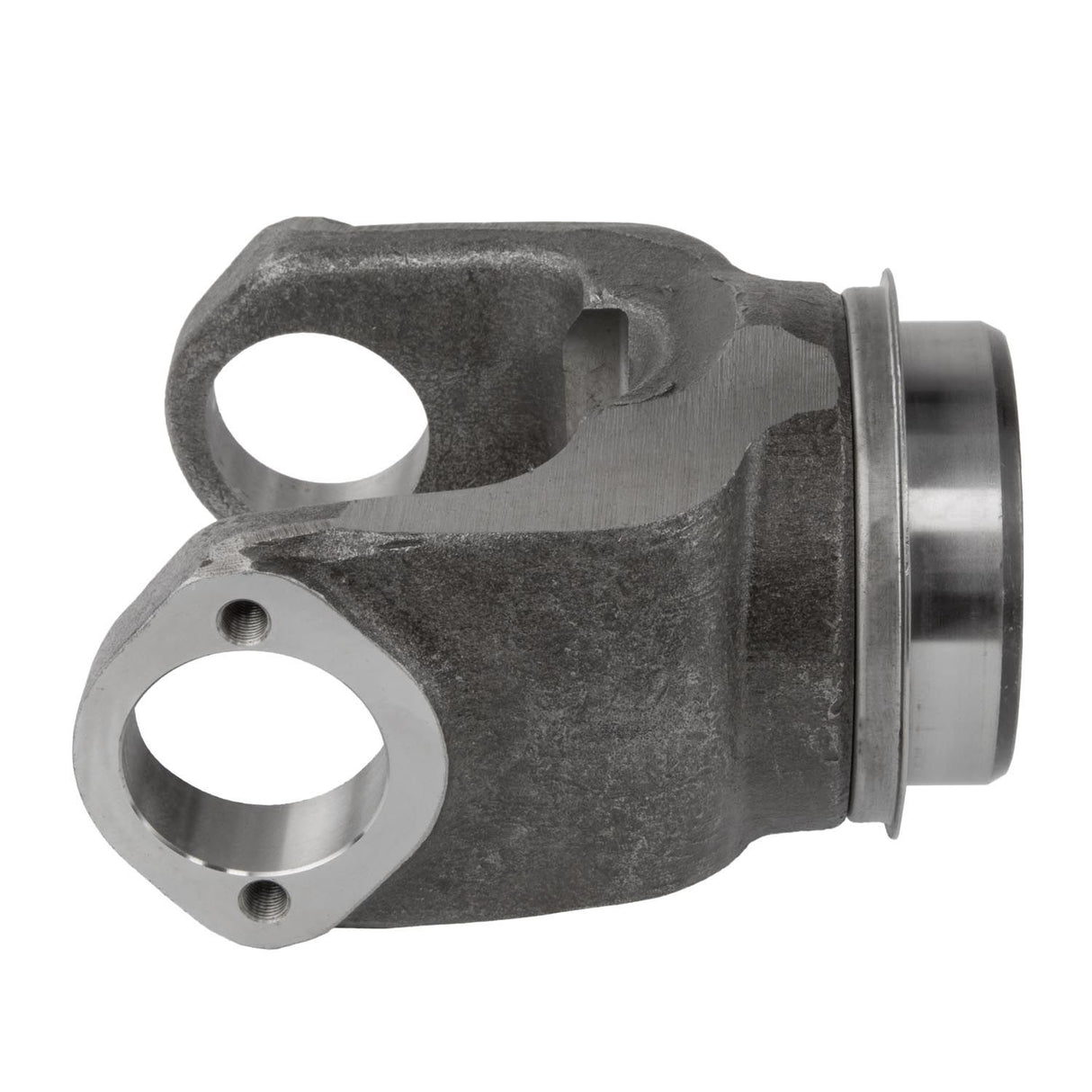

Full Round Style 1710 Series End Yoke 10 Spline | 17N4-6841X, 17N4-6931X, 17NYS44-7A, 597-763-C, 597763C, 597763C91, 6-4-6821, 6-4-6841X, 6-4-6931R, 6-4-6931X, A-3280-M-1365, N6-4-6931X, PAC6-4-6931X, S-4-6931, S-9033, S9033, SD-6-4-6931X, SD646931X
Regular price
$105.10
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1710 Series End Yoke 10 Spline | 17N4-6841X, 17N4-6931X, 17NYS44-7A, 597-763-C, 597763C, 597763C91, 6-4-6821, 6-4-6841X, 6-4-6931R, 6-4-6931X, A-3280-M-1365, N6-4-6931X, PAC6-4-6931X, S-4-6931, S-9033, S9033, SD-6-4-6931X, SD646931X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1710 Series End Yoke 10 Spline | 17N4-6841X, 17N4-...
Regular price
$105.10
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 6.09 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| Centerline To End | 5.75 |
| Centerline to End | 5.75 Inch |
| Dimensions | Spline Size: 2.750 - 10 Major Diameter: 2.750 Ground Hub Diameter: 3.750 Length Thru Hole: 3.000 Centerline To End: 5.750 Inch |
| Ground Hub Diameter | 3.75 Inch |
| Ground Hub Diameter | 3.75 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Joint Angle | 34 Degrees |
| Joint Angle | 20.5 Degrees |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 2.75 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.75 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 2.75 Inch |
| Spline Length | 3 Inch |
| Spline Quantity | 10 |
| Spline Size | 2.750 - 10 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1710 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 17N4-6841X |
| Meritor | 17N4-6931X |
| Meritor | 17NYS44-7A |
| International | 597-763-C |
| International | 597763C |
| International | 597763C91 |
| Spicer | 6-4-6821 |
| Spicer | 6-4-6841X |
| World American | 6-4-6931R |
| Spicer | 6-4-6931X |
| Meritor | A-3280-M-1365 |
| Neapco OE Series | N6-4-6931X |
| Spicer | PAC6-4-6931X |
| Spicer | S-4-6931 |
| Genuine Newstar | S-9033 |
| Genuine Newstar | S9033 |
| Genuine Newstar | SD-6-4-6931X |
| Spicer | SD646931X |
