SKU:
GTP06025

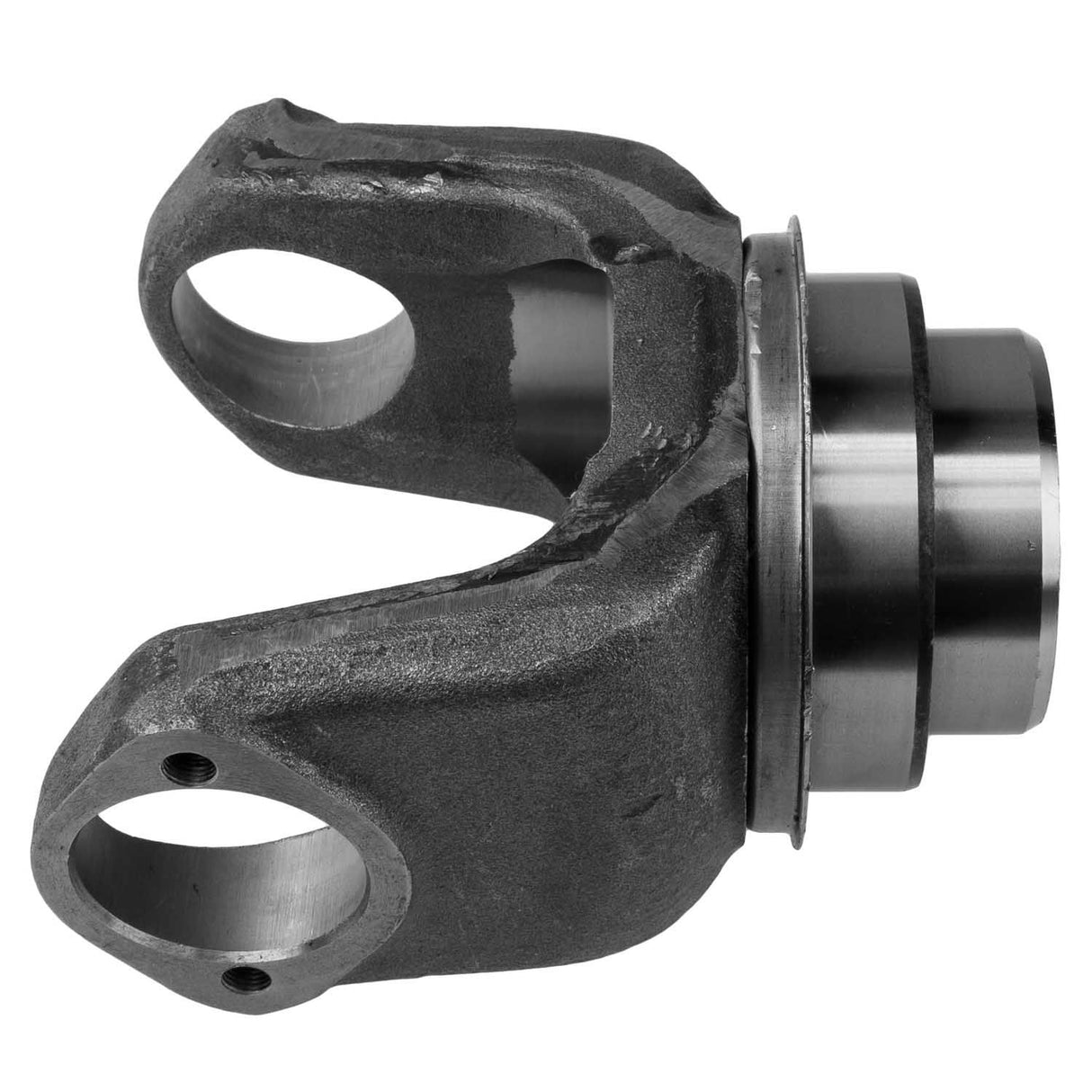

Full Round Style 1710 Series End Yoke 10 Spline | 17N4-6921X, 17NYS40-125A, 597-780-C, 597780C1, 6-4-6611, 6-4-6611R, 6-4-6921, 6-4-6921R, 6-4-6921X, 646611R, 646921R, 753.646321XR, DM6-4-6921X, N6-4-6921, N6-4-6921X, PAC6-4-6921X, S-4-6921, S-9032, S9032
Regular price
$110.98
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1710 Series End Yoke 10 Spline | 17N4-6921X, 17NYS40-125A, 597-780-C, 597780C1, 6-4-6611, 6-4-6611R, 6-4-6921, 6-4-6921R, 6-4-6921X, 646611R, 646921R, 753.646321XR, DM6-4-6921X, N6-4-6921, N6-4-6921X, PAC6-4-6921X, S-4-6921, S-9032, S9032 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1710 Series End Yoke 10 Spline | 17N4-6921X, 17NYS...
Regular price
$110.98
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| Centerline To End | 5.625 |
| Centerline to End | 5.625 Inch |
| Dimensions | Spline Size: 2.500 - 10 Major Diameter: 2.500 Ground Hub Diameter: 3.750 Length Thru Hole: 3.000 Centerline To End: 5.625 Inch |
| Ground Hub Diameter | 3.75 Inch |
| Ground Hub Diameter | 3.75 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Joint Angle | 30 Degrees |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 2.5 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.75 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 2.5 Inch |
| Spline Length | 3 Inch |
| Spline Quantity | 10 |
| Spline Size | 2.500 - 10 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1710 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 17N4-6921X |
| Meritor | 17NYS40-125A |
| International | 597-780-C |
| International | 597780C1 |
| Spicer | 6-4-6611 |
| World American | 6-4-6611R |
| Spicer | 6-4-6921 |
| World American | 6-4-6921R |
| Spicer | 6-4-6921X |
| World American | 646611R |
| Spicer | 646921R |
| Automann | 753.646321XR |
| DT Components | DM6-4-6921X |
| Neapco OE Series | N6-4-6921 |
| Neapco OE Series | N6-4-6921X |
| Spicer | PAC6-4-6921X |
| Spicer | S-4-6921 |
| Genuine Newstar | S-9032 |
| Genuine Newstar | S9032 |
| Genuine Newstar | SD-6-4-6921X |
| Spicer | SD646921X |
