SKU:
GTP06045

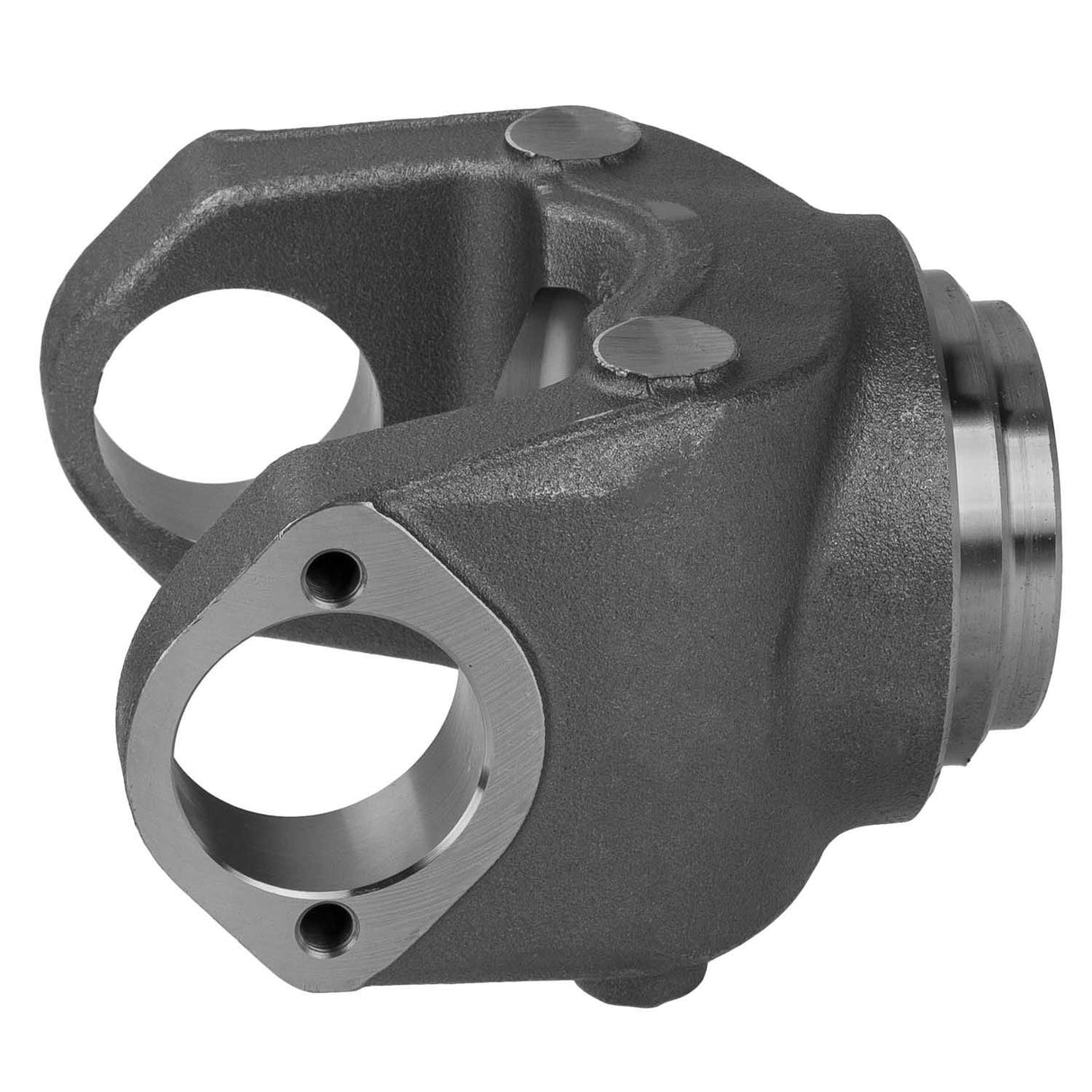

Full Round Style 1710 Series End Yoke 16 Spline | 1662-252-C, 171-MU-52-P27, 17N4-4601, 17NYS38-8A, 2048035, 38-MU-19330, 486-531-C, 6-4-4601, 6-4-4601-1, 6-4-4601X, 6-4-5071X, 6-4-5071XI, 6-4-5071XR, 6446011R, 645071XR, 986676, DM6-4-5071X, N6-4-4601
Regular price
$90.71
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1710 Series End Yoke 16 Spline | 1662-252-C, 171-MU-52-P27, 17N4-4601, 17NYS38-8A, 2048035, 38-MU-19330, 486-531-C, 6-4-4601, 6-4-4601-1, 6-4-4601X, 6-4-5071X, 6-4-5071XI, 6-4-5071XR, 6446011R, 645071XR, 986676, DM6-4-5071X, N6-4-4601 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1710 Series End Yoke 16 Spline | 1662-252-C, 171-M...
Regular price
$90.71
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 6.09 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| Centerline To End | 4.938 |
| Centerline to End | 4.938 Inch |
| Dimensions | Spline Size: 2.350 - 16 Major Diameter: 2.350 Ground Hub Diameter: 3.312 Length Thru Hole: 2.750 Centerline To End: 4.938 Inch |
| Ground Hub Diameter | 3.312 Inch |
| Ground Hub Diameter | 3.31 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Joint Angle | 24 Degrees |
| Joint Angle | 20.5 Degrees |
| Length Thru Hole | 2.75 Inch |
| Length Thru Hole | 2.75 Inch |
| Major Diameter | 2.35 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.312 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 2.344 Inch |
| Spline Length | 2.75 Inch |
| Spline Quantity | 16 |
| Spline Size | 2.350 - 16 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1710 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1662-252-C |
| Mack | 171-MU-52-P27 |
| Meritor | 17N4-4601 |
| Meritor | 17NYS38-8A |
| Mei | 2048035 |
| Mack | 38-MU-19330 |
| International | 486-531-C |
| Spicer | 6-4-4601 |
| Spicer | 6-4-4601-1 |
| Spicer | 6-4-4601X |
| Spicer | 6-4-5071X |
| Spicer | 6-4-5071XI |
| World American | 6-4-5071XR |
| World American | 6446011R |
| World American | 645071XR |
| Spicer | 986676 |
| DT Components | DM6-4-5071X |
| Neapco OE Series | N6-4-4601 |
| Neapco OE Series | N6-4-5071 |
| Spicer | N6-4-5071X |
| Spicer | PAC6-4-4601 |
| Spicer | PAC6-4-5071X |
| Genuine Newstar | S-7582 |
| Genuine Newstar | S7582 |
| Genuine Newstar | SD-6-4-4601 |
| Spicer | SD644601 |
| Freightliner | SP644601 |
