SKU:
GTP11790

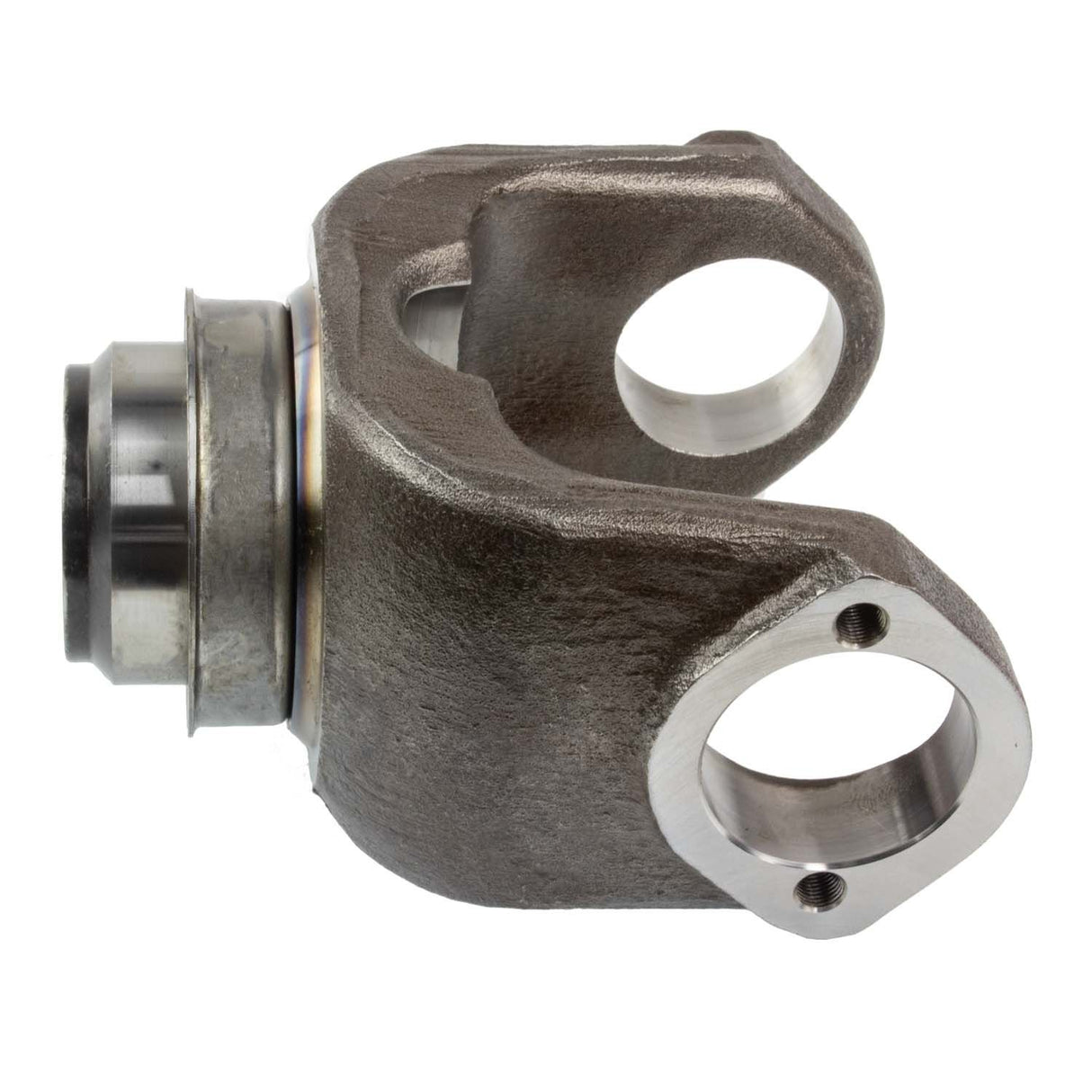

Full Round Style 1710 Series End Yoke 34 Spline | 17N4-8511X, 17NYS28-66A, 2030239C, 2030239C91, 6-4-6481R, 6-4-8081R, 6-4-8511-1X, 6-4-8511R, 6-4-8511X, 648511R, N6-4-8511X, S-D977, SD-6-4-8511X, SD648511X, SD977
Regular price
$123.48
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1710 Series End Yoke 34 Spline | 17N4-8511X, 17NYS28-66A, 2030239C, 2030239C91, 6-4-6481R, 6-4-8081R, 6-4-8511-1X, 6-4-8511R, 6-4-8511X, 648511R, N6-4-8511X, S-D977, SD-6-4-8511X, SD648511X, SD977 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1710 Series End Yoke 34 Spline | 17N4-8511X, 17NYS...
Regular price
$123.48
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| C'bore Depth | 0.25 Inch |
| C-Bore Depth | 0.25 Inch |
| Centerline To End | 5.438 |
| Centerline to End | 5.438 Inch |
| Dimensions | Spline Size: 1.790 - 34 Major Diameter: 1.790 Ground Hub Diameter: 2.625 Length Thru Hole: 2.438 Centerline To End: 5.438 CBore Depth: 0.250 Inch |
| Ground Hub Diameter | 2.625 Inch |
| Includes Slinger/Plug | Yes |
| Length Thru Hole | 2.438 Inch |
| Length Thru Hole | 2.438 Inch |
| Major Diameter | 1.79 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.625 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Full Round) |
| Spline Quantity | 34 |
| Spline Size | 1.790 - 34 Inch |
| Style | BP |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 17N4-8511X |
| Meritor | 17NYS28-66A |
| International | 2030239C |
| International | 2030239C91 |
| World American | 6-4-6481R |
| World American | 6-4-8081R |
| Spicer | 6-4-8511-1X |
| World American | 6-4-8511R |
| Spicer | 6-4-8511X |
| World American | 648511R |
| Spicer | N6-4-8511X |
| Genuine Newstar | S-D977 |
| Genuine Newstar | SD-6-4-8511X |
| Spicer | SD648511X |
| Genuine Newstar | SD977 |
