SKU:
GTP06021

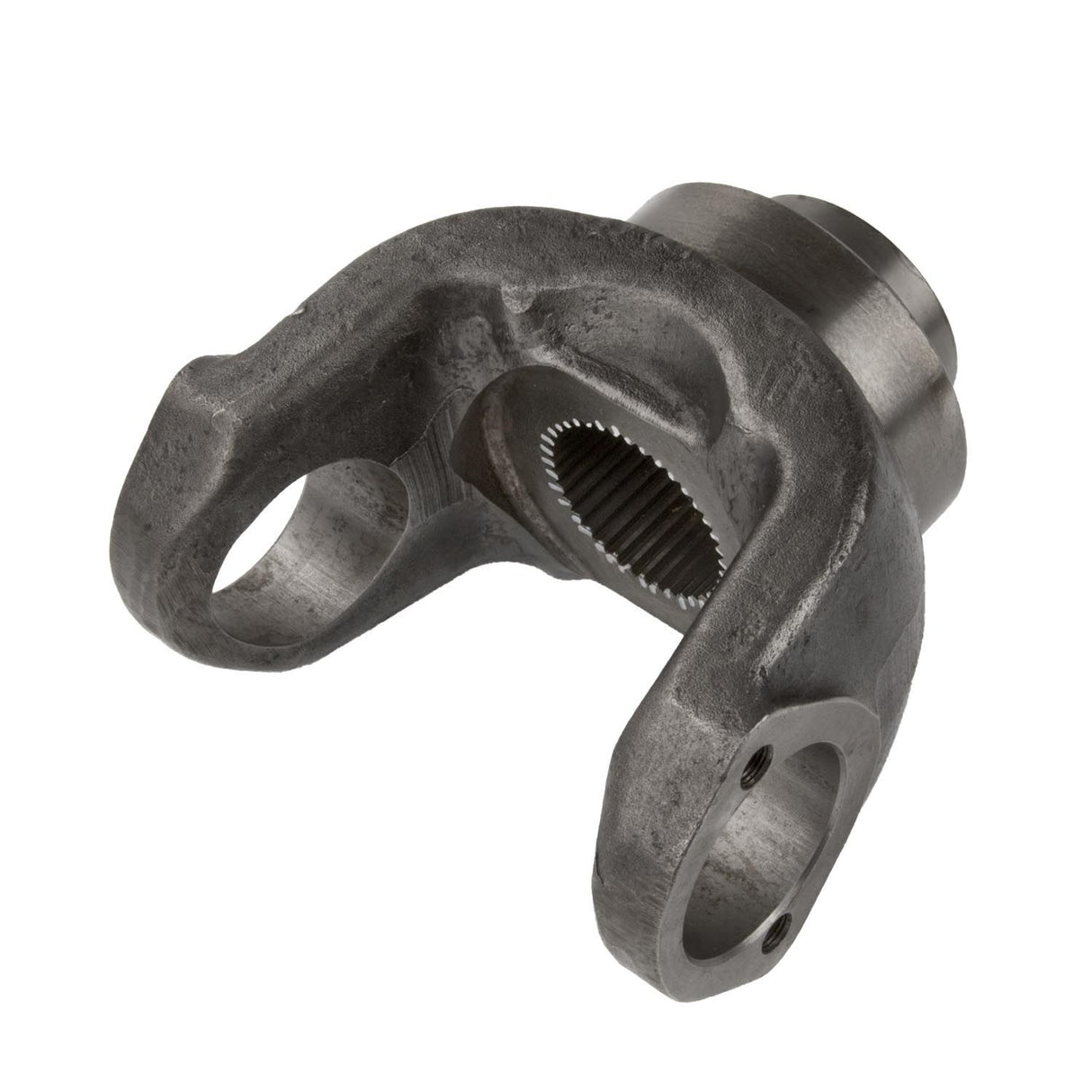

Full Round Style 1710 Series End Yoke 38 Spline | 17N4-7141, 17N47141, 1914392, 6-4-7141, S-E587, SD-6-4-7141, SD647141, SE587, TDA 17N4 7141
Regular price
$118.83
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1710 Series End Yoke 38 Spline | 17N4-7141, 17N47141, 1914392, 6-4-7141, S-E587, SD-6-4-7141, SD647141, SE587, TDA 17N4 7141 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1710 Series End Yoke 38 Spline | 17N4-7141, 17N471...
Regular price
$118.83
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | No |
|---|---|
| Bearing Type | BP |
| C'bore Depth | 0.5 Inch |
| Centerline To End | 5 |
| Centerline to End | 5 Inch |
| Dimensions | Spline Size: 1.998 - 38 Major Diameter: 1.998 Ground Hub Diameter: 2.810 Length Thru Hole: 3.000 Centerline To End: 5.000 CBore Depth: 0.500 Inch |
| Ground Hub Diameter | 2.81 Inch |
| Includes Slinger/Plug | No |
| Joint Angle | 25 Degrees |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 1.998 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.81 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Full Round) |
| Splien Size | 1.998 - 38 Inch |
| Spline Quantity | 38 |
| Spline Size | 1.998 - 38 Inch |
| Style | BP |
| Type | Splined Hole |
| U Joint Cap Diameter | 1.998 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 17N4-7141 |
| Meritor | 17N47141 |
| Spicer | 1914392 |
| Spicer | 6-4-7141 |
| Genuine Newstar | S-E587 |
| Genuine Newstar | SD-6-4-7141 |
| Spicer | SD647141 |
| Genuine Newstar | SE587 |
| Freightliner | TDA 17N4 7141 |
